Our Advantages:
1. With the features of complete parts,good quality and professional service .
2. Your request and demand is answered&responed quickly by our professional sales team and engineer.
3.With plenty of export experience 10 years.
4.We earned trust and reputation from customers abroad from Russia, Iran , Vietnam , Philippine,Ethiopia,
Angola, Nigeria,Middle-East, South-America markets.

Details of Vehicles:
1. High bumper
2. Protection covers for head & rear lamps
3. Tipper box is thick enough to carry heavy stones, sands,etc.

Advantages Of Vehicles:
1.Convenient to drive

2. Low fuel consumption

3.Tipper box is designed in different type for clients' special purpose

Specifications:

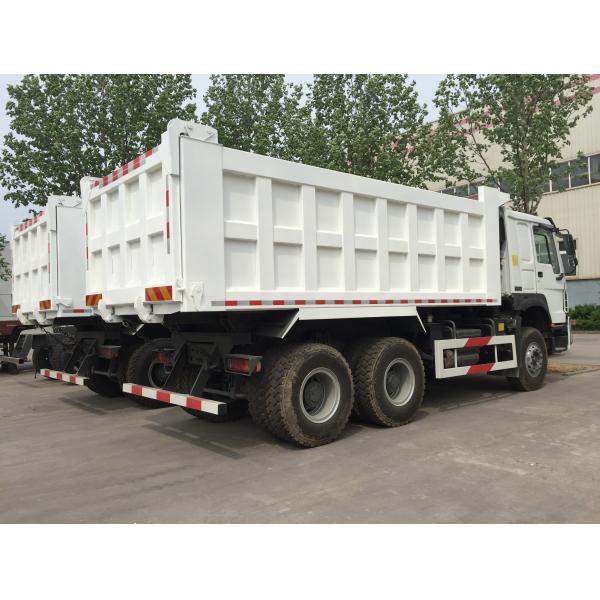

SINOTRUK HOWO dump truck 6x4 (ZZ3257N3447A1 )
Model: ZZ3257N3447A1
Traction type: 6X4
Driving type: LHD (RHD is optioned)
Cabin: HOWO cab, Air Conditioner. flat head, double doors, tippable, one sleeper

Engine brand: SINOTRUK
Engine model: WD615.69
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
with water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. output: 336hp@2200rpm
Max torque: 1350NM@1200-1650rpm
Bore/Stroke(mm):126/155
Mean Position Speed: 9.53m/s
Compression ratio:15.5:1
Specific fuel consumption: 195g/Kwh

Gear box:
Model: HW19710 ,10 Speeds Forward & 2 Speed Reverse

Clutch:
Model: 430 imported diaphragm type

Steering: ZF Technology
Front axle: HOWO front axle, 7000KG
Rear axle: HC16 (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)
Tyre: 12.00R20 tyre
Spring: 9/12, 10/12
Fuel consumption (L/100km): 36
Fuel tank capacity (L): 300
Max. speed (km/h): 95
Max. gradeability(%): 25
Kerb. mass: 12220kg
Total mass: 25000kg
Wheel base (mm): 3425+1350
Front overhang (mm): 1500
Rear overhang (mm): 1560
Front track (mm): 2022
Rear track (mm): 1830
Turning circle diameter: 24m
Approach angle: 19 degree
Departure angle: 30 degree
Dimension (mm): 7835x2496x3170

Body:
Inner size(mm): 5200x2300x1500
Capacity:18m3
Thickness of body steel(mm): floor 8 side & back 6
Tipping type: middle T type (underbody)

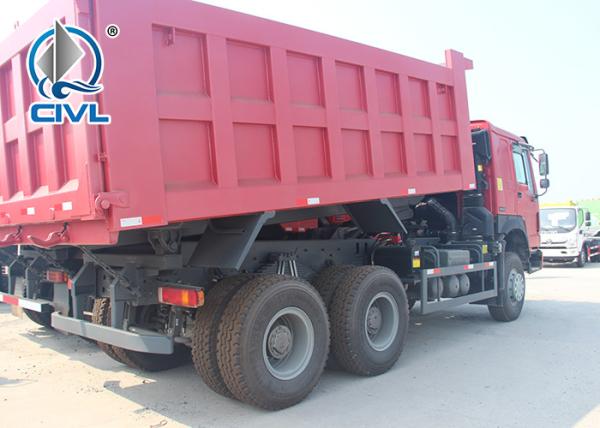

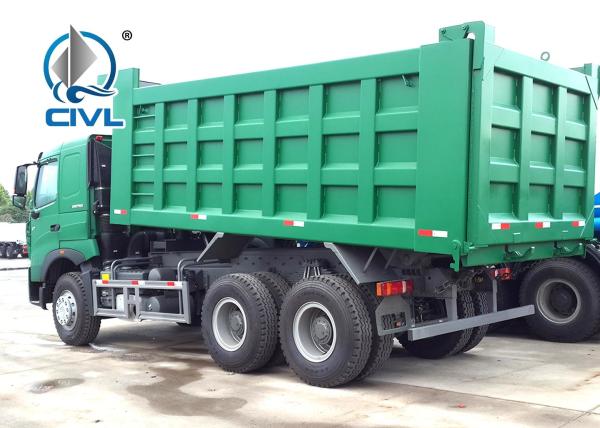

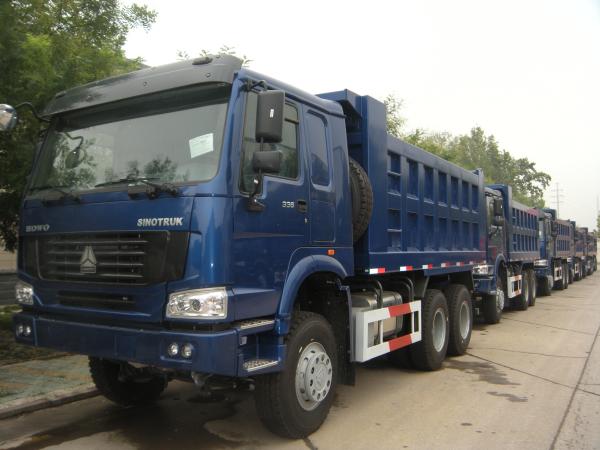

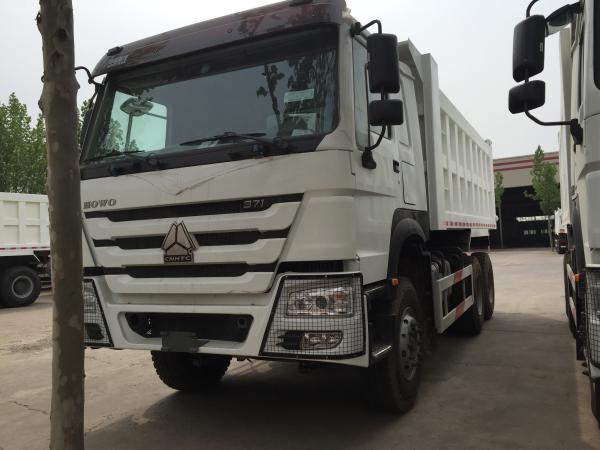

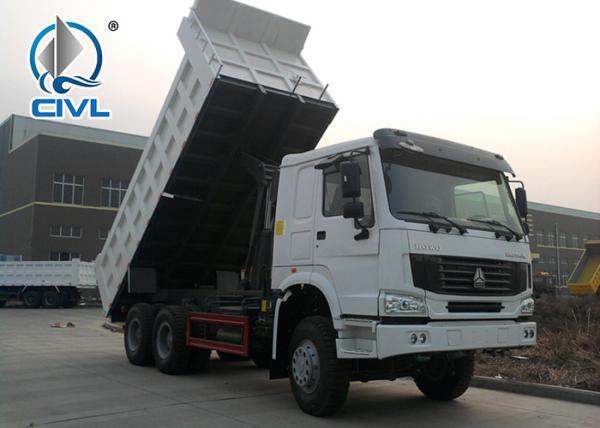

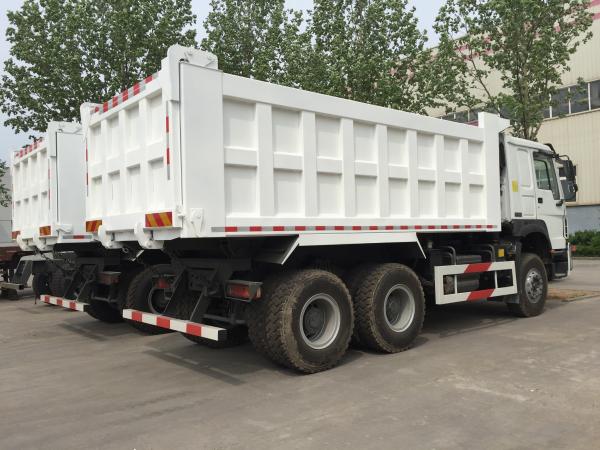

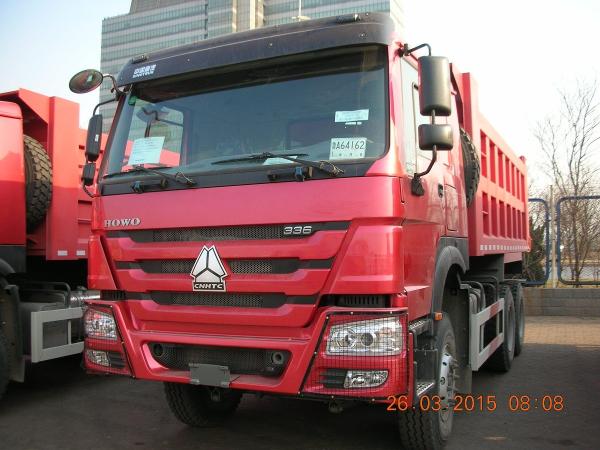

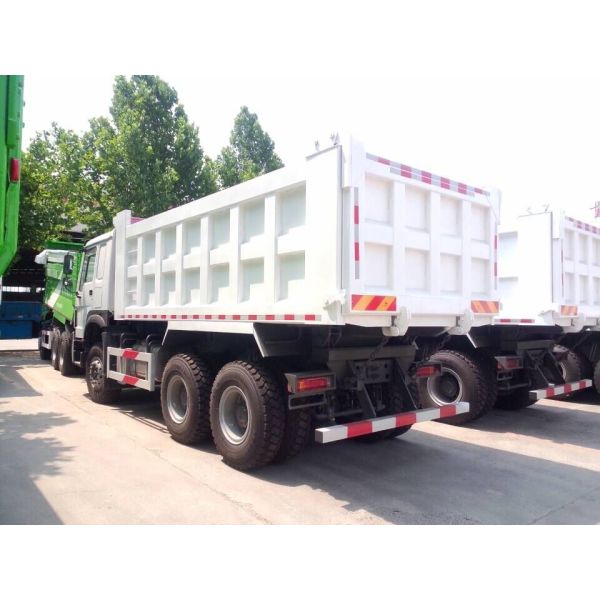

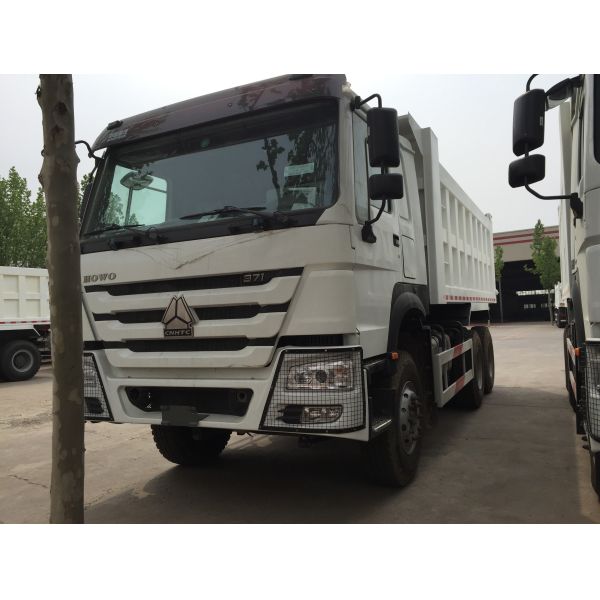

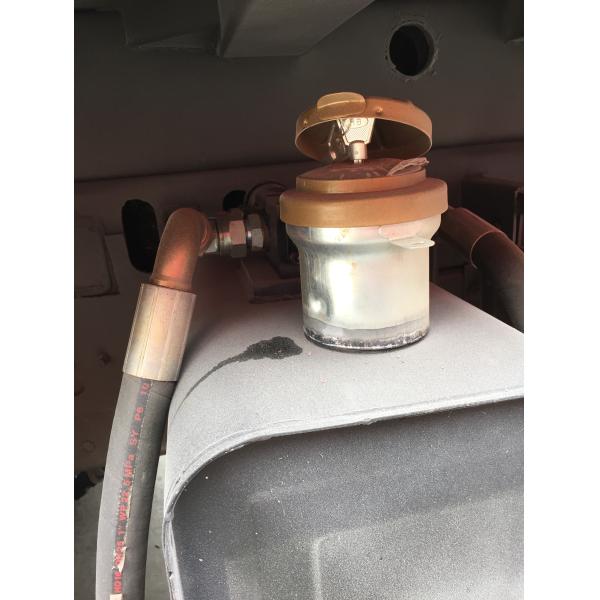

Photos of truck details.

Production range of our tipper truck:

Brand: SINOTRUCK, BEIBEN

Drive type: 4X2, 4X4, 6X4,8X4,8X8, 70T mining tipper; also 2/3/4 dump semi trailers

Capacity: 1-8ton; 8-19ton; 19-30ton; 30-45ton;45-60ton, 70ton

Discharge Lift Model: fron lift, midle lift, side lift
