new Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red color
new Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red color
new Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red color
new Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red color
new Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red color
new Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red color
new Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red color
new Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red color
new Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red color
new Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red color
new Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red color
new Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red color
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 units per week
Delivery Time :
Within 35 days
Packaging Details :
Nude
Fuel type :
Diesel
Condition :
New
Emission standard :
Euro 2
Color :
Red
Horse power :
371hp
Year :
2020
Description

Description:

Our company mainly manufacturing the dump truck, concrete pump truck, fuel tank truck, water sprayer truck ,compression garbage truck, sewage suction truck, sprinkling truck, powder material truck, municipal engineering vehicles, semi-trailers, new energy automobile, products are sold all over the country and exported Southeast Asia, Africa, North America, the Middle East, Russia and other markets.

1. Introducation

A dump truck (or, UK, dumper truck) is a truck used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with a hydraulically operated open-box bed hinged at the rear, the front of which can be lifted to allow the contents to be deposited on the ground behind the truck at the site of delivery. In the UK and Australia the term applies to off-road construction plant only, and the road vehicle is known as a tipper, tipper lorry (UK) or tip truck (AU).

2. Standard dump truck

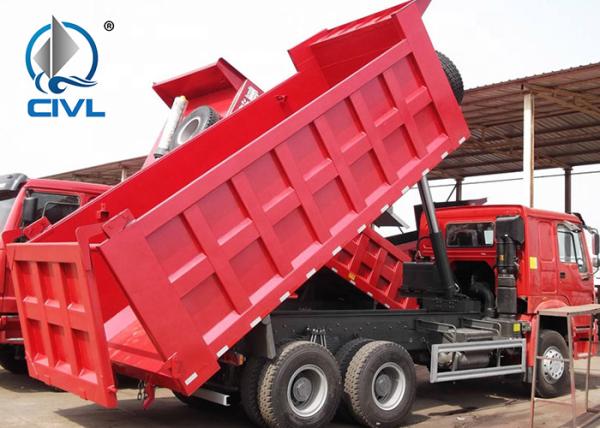

A standard dump truck is a truck chassis with a dump body mounted to the frame. The bed is raised by

a hydraulic ram mounted under the front of the dumper body between the frames, and the back of the

bed is hinged at the back to the truck. The tailgate can be configured to swing on hinges or it can be configured in the "High Lift Tailgate" format wherein pneumatic rams lift the gate open and up above

the dump body.

Specifications:

Model HOWO 8X4 Tipper with berth ZZ3317N3867W
Engine CNHTC brandWD615.47, 371HP, EURO2
Transmission HW15710, 10 forward, 2 reverse
Steering ZF8098 hydraulic steering with power assistance
Front axle HF9,9000KG
Rear axle AC16000KG
Cab HW76 Cabin, with one berth ,A/C
Rim/Tires 12.00-20 .12R20.12R22.5
Internal Dimensions (LxWxH) 7800 x2300 x1200mm
Color red, green, white, grey, blue, yellow
Fuel Tank 300L
Thickness of Carriage Floor: 10mm-16mm, Side:8mm-10mm
Lift of Carriage Front lift

Gear box Model: HW15710
Speed: 10drive, 2reverse. Max torque:1390NM

HW15710 SINOTRUK 10 speed manual type transmission, the first

shift gear ratio: 14.28, small ratio grade difference and big first shift

ratio produce an excellent performance on start up Gear ratio:1=14.28,

2=10.62, 3=7.87, 4=5.88, 5=4.38, 6=3.27, 7=2.43, 8=1.80, 9=1.34,

10=1, R1=13.91, R2=3.18
Front Axle

HF9,9 ton axle load, rigid stub axle with double T- cross section and

dish brake.
Rear Axle

AC16,AC16 heavy casting hub reduction drive axle, with super

loading ability, excellent performance on start-up with heavy load

and slope climbing.
Steering ZF8098 power steering, hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating

with air assistance.
Brake Service brake: Dual circuit compressed air brake.
Parking brake: Spring energy, storage air-break brake.
Engine brake: Engine exhausted gas brake.
Electric Equipment Operating voltage: 24V negative grounded
Batteryvoltage: 12V/165Ah,cigar lighter

new Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red colornew Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red colornew Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red colornew Howo 371 Hp Tipper Truck Euro2 Heavy Duty Dump Truck HW76 Cabin engine euroII Red color

Applications:

It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.

Competitive Advantage

1. Low oil consumption.Sinotruk adopt the engine that combin the MAN and technolgoy,it has the perfect oil performance.

2. Load more.with using our truck,it can load more goods in safe.

3. Sufficient stocked spare parts are available for you when you need to repair your trucks.

4. with the same conditions,our truck can be used for a longer time as we used many world famous brand spare parts and assembly.
