336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4
336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4
336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4
336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4
336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4
336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4
336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4
336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4
336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4
336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4
Specifications
Brand Name :
CIVL
Model Number :
CIVLZZ3257N3647A
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10000 units per month
Delivery Time :
Within 35 days
Packaging Details :
Nude
Model :
ZZ3257N3647A
Drive :
6x4
Cabin :
HW76 With A/C
Load Capacity :
25-30Ton
Engine :
Euro 2
Tire :
1200R20
Fuel type :
Diesel
Condition :
New
Transmission type :
Manual
Horsepower :
336hp 371HP
Emission standard :
Euro 2
Product name :
Dumper Truck
Color :
Red yellow blue green
Description

336hp 371hp 10 wheel 30 ton rhd HOWO SINOTRUK Euro 2 tipper truck dumper truck 6x4

Description:

336hp 371hp 10 wheel 30 ton rhd HOWO SINOTRUK Euro 2 tipper truck dumper truck 6x4

Engine

  • Engine brand: SINO BRAND
  • Engine model: WD615.47 Euro II
  • Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection
  • Displacement: 9.726 liters
  • Max. output: 371hp@2200rpm
  • Max torque: 1460NM@1100-1600rpm

336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4

Gear box

Gear box:HW19710

Clutch: 430, hydraulically operating with air assistance

Steering: integral type power-steering

Specification:

Howo dump truck basic Made SINOTRUK
Series HOWO
Howo dump Model ZZ3257N3647A
Howo dump Driving Type 6x4
Howo dump Engine Howo dump Engine model WD615.47
Howo dump Engine Type 6-cylinder in-line with water cooling, turbo-charging and intercooling,4-stroke direct injection diesel engine
Howo dump Maximum output 371 hp (247 Kw) at 2200 rpm
Howo dump Displacement 9.726 L
Bore 126 mm
Stroke 130 mm
Compression ratio 29.8 hp/l
Specific fuel consumption 195 g/kWh
Howo dumpTransmission Model HW15710(Fuller technology)
speeds 10 speeds
Howo dump Axle Front Axle 9T
Rear Axle 16T
Howo dump Fuel tank Aluminium fuel tank 300 L capacity with locking fuel cap
Howo dump Steering Model ZF power steering, modol ZF8098, hydraulic steering
Howo dump Tyre Radial Tyre 12.00R20
Howo dump Driver's Cab Flat roof cab with bed all steal forward control,2-arm windscreen wiper system with three speed,laminated windscreen, damped adjustable driver's seat, with heating and ventilating system, adjustable steering wheel,air conditioner
Howo dump Dimensions mm Wheel base 3600+1350
Overall dimmensions 8145*2496*3386
Dimension of the rear dump body 5400*2300*1400(17M3)
Howo dump Performance Maximum driving speed (km/h) 75
Maximum gradeability (%) 40
Minimum ground clearance (mm) 314
Minimum turning circle (m) 20
Fuel consumption (l/100 km) 28

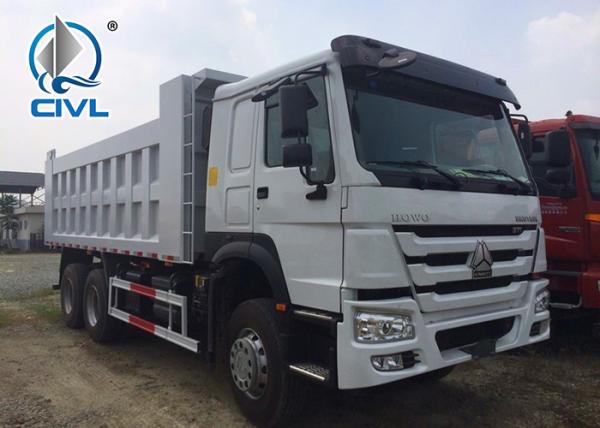

Photos:

336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4

Delivery:

PACKING AND SHIPPING

All the truck, semi trailer and spare parts will be polished with wax before shipping, and suitable shipping way will be according to the truck type and destination port to choose.

For truck and semi trailer,There are three shipping ways can be choose, RORO, BULK CARGO VESSEL & FLAT RACK CONTAINER,

40 HQ Container suit for flatbed & cargo semi trailer and spare parts only, Please kindly check the pictures as below, Thanks

336hp 371hp 10 Wheel 30 Ton Rhd HOWO SINOTRUK Euro 2 Tipper Truck Dumper Truck 6x4

Any interest let me know freely

With over 17 years of experience , we have becoem one of the key manufacturers of trucks and road machiens in China .

Exporting to more than 50 countries for 14 years .

For more information ,contact us now.

OFFICE TEL:0086 531 59536616 008613210589366

MAIL:sinotruk@road-machine.com
