10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color
10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color
10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color
10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color
10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color
10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color
10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color
10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color
10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color
10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color
10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color
10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
10000UNITS /MONTH
Delivery Time :
Within 35 days
Packaging Details :
NUDE
MATERIAL :
q234
lOGO :
OPTION
WARRANTY :
YES
SPARE PARTS :
YES
Description

Dump Truck SINOTRUK HOWO 336HP 6X4 RHD 20CBM 30ton Front lifting Mininig industry

Product Advantages

1.HW76 cab(single sleeping, with air-condition)

2. all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds

3.Van body dimensions 8145×2496×3170mm

4.Bottom plate 8mm Van body material Common steel

5.The transit tipper truck works together with the excavators, wheel roaders, track transporter and other machines

Specification:

Model ZZ3257N3647A
Cab Model HW76
Type Extended cab, single sleeper, up and down, front and rear adjustable steering wheel, VDO instrument and control module, double locking structure seat belt, outer sun shield

Engine

 Model WD615.69
Rated power kW/rpm 247/2200
Maximum torque Nm/rpm 1350/1300-1600
Displacement L 9.726
Type Inline, six-cylinder, two-valve, supercharged intercooler, rear turbocharger
Clutch Φ430 diaphragm spring clutch, hydraulically assisted by gas. WD615.62, WD615.87 comes standard with 430C, WD615.69 comes with 430B, WD615.47 comes with 430A
Transmission HW series of 10-speed transmission, transmission-based, secondary box structure, the main box double shaft, deceleration of the planetary box, with power take-off. WD615.62, WD615.87, WD615.69 comes standard with HW15710, WD615.47 comes with HW19710
Front axle HF9 drum type, rated load 9 tons
Rear drive axle HC16 double-stage deceleration (central deceleration + wheel deceleration), speed ratio: standard 5.73, optional 4.8
Suspension The front and rear suspensions are leaf springs, the front suspension is equipped with a shock absorber and a lateral stabilizer, and the rear suspension type is a disconnected balance suspension with a lateral stabilizer.
Steering system ZF8098 direction machine, ZF steering oil pump, system pressure 18MPa
Braking System Service brake: Double-circuit pneumatic brake; Parking brake: spring energy storage air brake; Auxiliary brake: Engine exhaust brake. Optional engine EVB, ABS and automatic clearance adjustment arm.
Electrical system Voltage: 24V; Generator: 1540W; Starter: 24V, 7.5kW; Battery: 2×12V/165Ah
Tires 12.00-20; Optional 11.00-20
Fuel tank capacity L 300
Service quality (vehicle/chassis) kg 12250/8660
Total mass kg 25000
Rated contained mass kg 12620
Dimension(Lx W xH)mm(unloaded) 8145×2496×3170
Chassis dimensions (length × width × height) mm 7215×2496×2985
Wheelbase mm 3625+1350
Front suspension/rear suspension (vehicle/chassis) mm 1500/(1670/740)
Track (front/back) mm 2022/1850
Minimum ground clearance mm 314
Approach angle/departure angle (whole vehicle/chassis) ° 19/(26/64)
Maximum speed km/h 75
Maximum climbing ability % ≥50
Minimum turning diameter m 16.3
Container size (length × width × height) mm 5400×2300×1200
Container volume m3 14.9

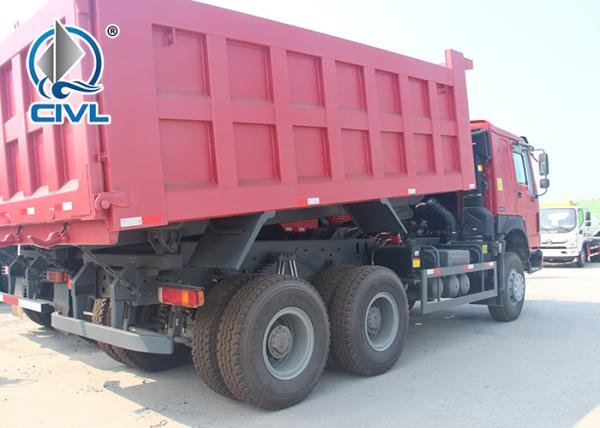

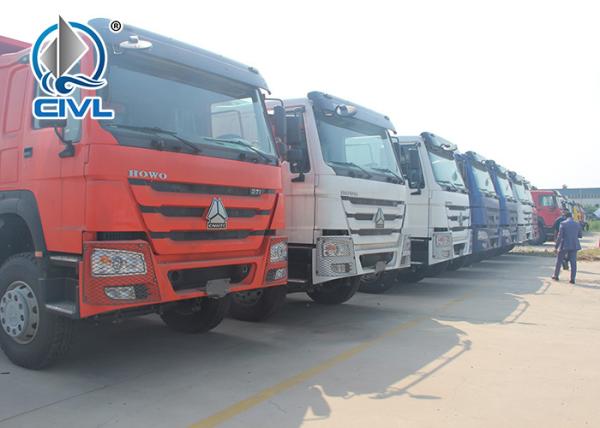

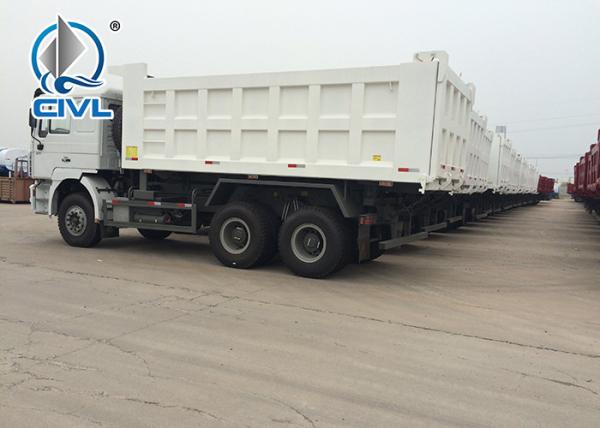

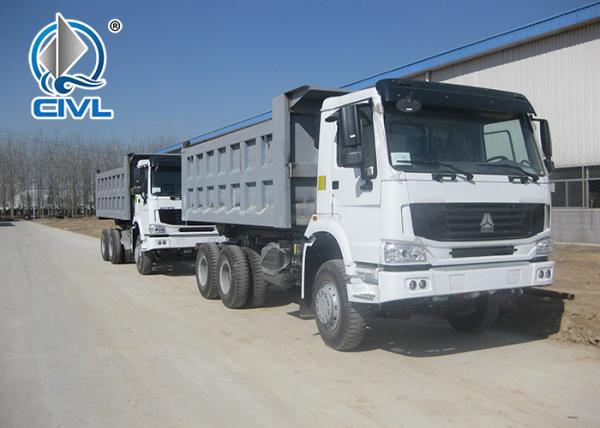

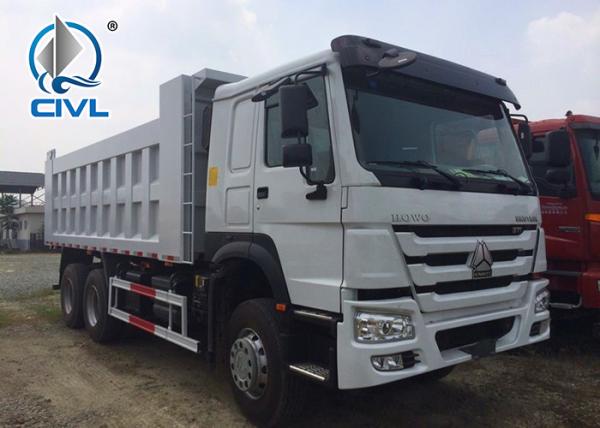

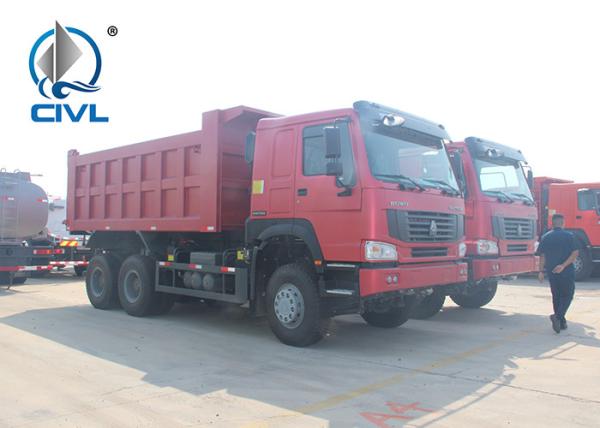

Photos:

10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color10 Tires howo New Heavy Duty Dump Truck 336hp 6x4 Rhd 30 Ton White / Red / Green color
Applications:

It used for Mining industry, Construction business, docks and so on.

Competitive Advantage:

1) competive price, cost-effective

2) reliable quality

3) good after slaes service, which can send engineers for traning and maintainance

4) all kinds of cargo body structure can be designed and produced according to your request,

make it have light curb weight , high rigidity , high loading capacity

5) The optimized hydraulic control system helps to avoid wrong operation, it has higher

safety and running efficiency.

6) low fuel consumption

7) strong enough engine
8) with all kinds of truck model, which can fulfil your requirements

9) using the high strength steel, make it has a long service life

10) fast delivery time, we can arange production according to your needs exactly and quickly

11) professional import and export dealing precedure, make customs clearance more high efficiency

12) excellant apperance of cabin, safety, reliable

13) quick and efficient spare parts supply bring you more convenient

14) you can choose cargo body with Front lifting type or Middle lifting type which you prefered

15) The hydraulic sytem using HYVA brand or Domestic famouse brand
