Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan
Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan
Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan
Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan
Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan
Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan
Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan
Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan
Specifications
Brand Name :
Available for ODM
Model Number :
BPT10-12
Certification :
CE
Place of Origin :
China Foshan
MOQ :
1
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
3-8 work days
Packaging Details :
Carton packaging，1 units per carton
Function :
Air flow Ventilation Fan
Mounting :
Ceiling Mounting
Voltage :
220V / 50 Hz
Power :
24-58W
Air volume :
120 - 500m ³/h
Core Components :
Motor, Engine
Noise :
32 - 45 dB
Static pressure(Pa) :
80-175 Pa
Motor :
Copper coil
Duct Size :
100 mm / 150 mm
Apllications :
Hotel / School / Residence / Office / Bathroom
Description

Product Overview

Ceiling fans improve indoor air quality by regulating humidity, eliminating odors, and reducing dust accumulation. They are suitable for a variety of settings including malls, hotels, restaurants, residential homes, and office spaces.

Advantage

  • The metal casing satisfies the fire resistance requirement.
  • A capacitor-run induction motor is used, providing low power consumption, high performance, longevity, and reliability.
  • A detachable cassette-type discharge opening is designed for easy ducting, installation, and maintenance.
  • Various aesthetically pleasing design louvers are available for selection.
  • Mounting feet are included for convenient suspension and ceiling installation.
  • The same height level of inlet and outlet allows for an intermediate position suitable for the ducting system.

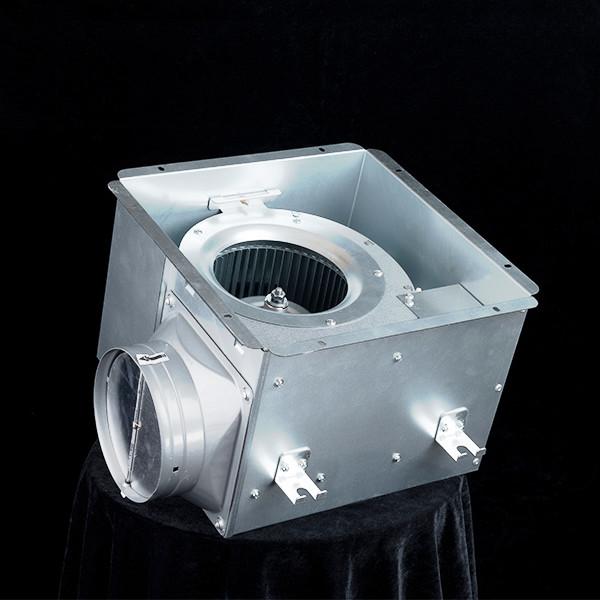

  • A well-balanced, high-grade aluminum high-pressure forward curved centrifugal fan ensures quiet and stable operation.​​

General assembly Drawing

Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan

Product Installation Method

1. Start by constructing a strong rectangular framework, ensuring it is securely fastened to the ceiling above.

Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan

2. Firmly secure the storage unit (or enclosure) to the pre-installed frame.

Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan

3.Carefully align the ventilation duct connector with the arrow direction indicated and firmly attach it using a twist-lock mechanism to the specified air outlet port on the cabinet, ensuring proper airflow connection.

Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan

Product Performance Curve

Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan

Product Performance Specifications

Indoor Air Quality Solutions Ceiling Duct Fresh Air Exhaust Ventilation Fan

Model Num

 A B C D E F

Cutout Dimensions

BPT10-12

 280 280 277 155 230 14 230*240
BPT10-15 280 280 277 155 230 14 230*240
BPT10-21 280 280 277 155 230 14 230*240
BPT15-27 380 380 341 224 306 14 306*306
BPT15-33 380 380 341 224 306 14 306*306
BPT15-40 380 380 341 224 306 14 306*306
BPT15-60 380 380 341 224 306 14 306*306
