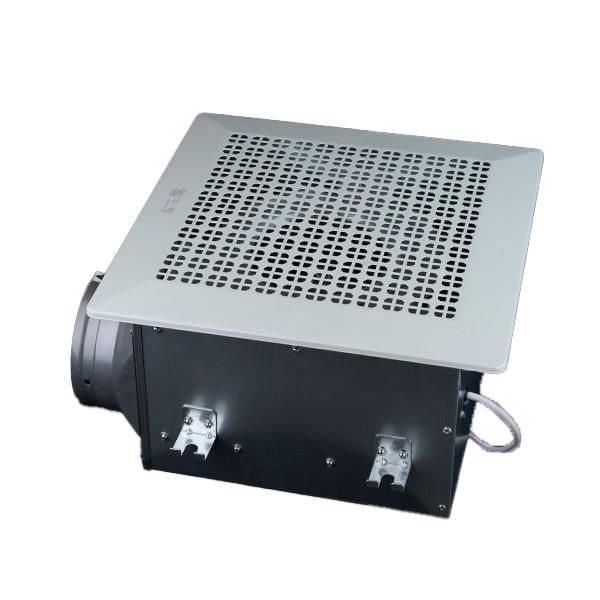

Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan
Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan
Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan
Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan
Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan
Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan
Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan
Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan
Specifications
Brand Name :
Available for ODM
Model Number :
BPT10-12
Certification :
CE
Place of Origin :
China Foshan
MOQ :
1
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
3-8 work days
Packaging Details :
Carton packaging，1 units per carton
Function :
Ceiling Air Flow Ventilator​ System
Mounting :
Ceiling
Voltage :
220V
Power :
24-100W
Air volume :
120-600 m³/h
Core Components :
Motor, Engine
Noise :
32-58 dB
Static pressure(Pa) :
80-220 Pa
Motor :
100% copper coil
Duct Size :
100 mm / 150 mm
Apllications :
Hotel / School / Residence / Office / Bathroom
Description

Product Overview

Ushering in a new era of aerodynamics, our all-metal ducted ceiling mounted circular fans are designed for high-end commercial and industrial environments that seek maximum ventilation efficiency and durability. This revolutionary product combines cutting-edge technology and craftsmanship to provide unrivalled air circulation solutions, ensuring that every space enjoys fresh, healthy air circulation.

Application scenario:
It is widely used in large shopping malls, office buildings, factory workshops, warehouses, data centers, hospitals, schools and other places requiring efficient ventilation, especially suitable for environments with strict air quality requirements.

General assembly Drawing

Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan

Product Installation Method

1. Begin by building a sturdy rectangular frame, ensuring it is solidly anchored to the ceiling above.

Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan

2. Firmly affix the storage unit (or enclosure) to the pre-installed frame.

Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan

3. Carefully line up the ventilation duct connector with the arrow direction indicated and securely attach it using a twist-lock mechanism to the designated air outlet port on the cabinet, ensuring proper airflow connection.

Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan

Product Performance Curve

Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan

Product Performance Specifications

Full Metal Housing Duct Pipe Ceiling Mount Tubular Ventilation Fan

Model Num

 A B C D E F

Cutout Dimensions

BPT10-12

 280 280 277 155 230 14 230*240
BPT10-15 280 280 277 155 230 14 230*240
BPT10-21 280 280 277 155 230 14 230*240
BPT15-27 380 380 341 224 306 14 306*306
BPT15-33 380 380 341 224 306 14 306*306
BPT15-40 380 380 341 224 306 14 306*306
BPT15-60 380 380 341 224 306 14 306*306
