Specifications
Brand Name :
Qingdao Zhenxiong
Model Number :
SJ75
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
45800 - 55800USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15-25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container .
Name :
Refrigerator Door Gasket Production Line With On-Line Magnetic Strip Inserting Device
Dimensions :
33000mm x 1500mm x 1800mm
Weight :
4 T
Cooling water tank :
8 meters
Applicable Raw Materials :
PVC Granules or Powders
Length range of magnetic stripe :
180-1800 mm
Description
One Person Operates The Door Gasket Production Line High Precision Online Magnetic Strip Inserting

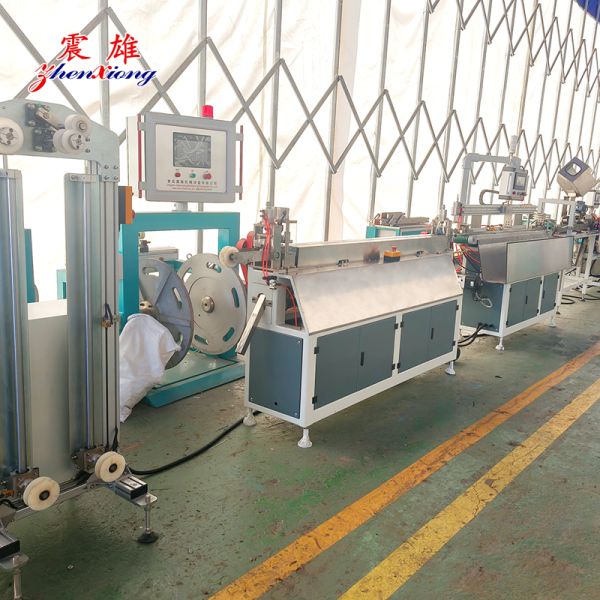

Our company has been focusing on the research and manufacturing of door seal production lines for over 20 years. The online magnetic strip refrigerator door seal production line integrates extrusion, punching, 45° cutting, and online magnetic strip threading. The entire line is highly automated, requiring only one person to operate, greatly saving manpower and improving production capacity.
Core Advantages
  • SJ75 extruder is equipped with a separation type screw, which has good plasticizing effect and high output
  • The head mold is made of 40Cr steel forged and tempered, with high strength and good precision
  • 5P air-cooled chiller unit, fast cooling and shaping, adjustable water temperature
  • The automatic feeding machine is equipped with an alarm, reducing manual labor and ensuring continuous feeding
  • 8-meter dual stage circulating spray cooling, uniform, fast, and stable shaping
  • Traction frequency conversion control and pneumatic cutting, with cutting length set as needed
  • The accuracy of the 45° angle cutting machine is ±1mm, ensuring accurate angles

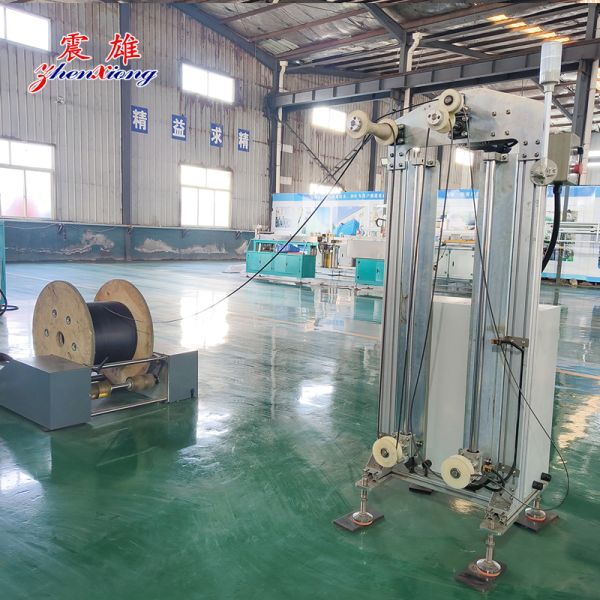

  • The magnetic stripe has a range of 180-1800mm, high accuracy, and strong sealing
Product Application Range

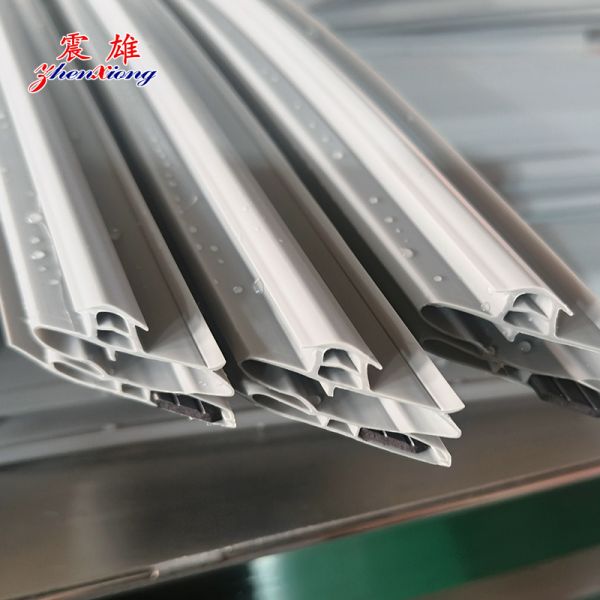

The surface of the product is smooth and free of burrs, with strong magnetic properties, high and low temperature resistance, and long-term use without deformation. It is widely used in refrigerators, freezers, water dispensers, disinfection cabinets, kitchenware, profile doors and windows, and various industrial and daily products.
Technical Specifications
Model SJ75
Voltage 380V 50HZ
Automated Yes
Applicable Raw Materials PVC Granules or Powders
Control System PLC
Dimensions 33000x1500x1800mm
Weight 4 T
Length range of magnetic stripe 180-1800 mm
