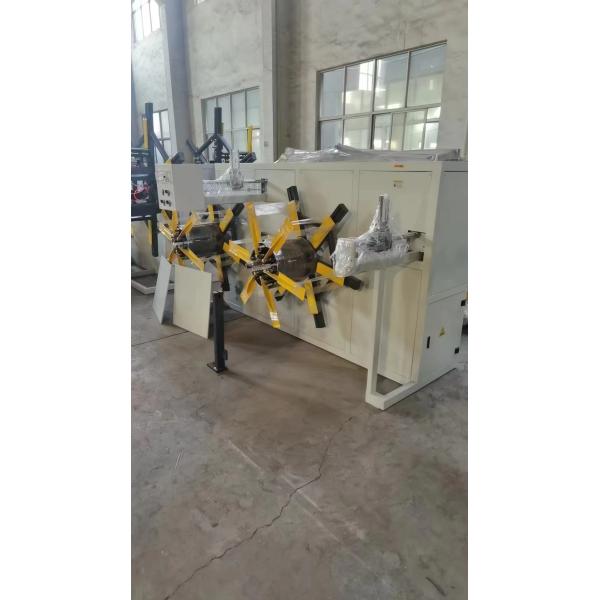

Double Station Plastic HDPE Pipe Coiling Winder Coiler Winding Machine With Automatic Strapping For PE Pipes
Double Station Plastic HDPE Pipe Coiling Winder Coiler Winding Machine With Automatic Strapping For PE Pipes
Double Station Plastic HDPE Pipe Coiling Winder Coiler Winding Machine With Automatic Strapping For PE Pipes
Double Station Plastic HDPE Pipe Coiling Winder Coiler Winding Machine With Automatic Strapping For PE Pipes
Double Station Plastic HDPE Pipe Coiling Winder Coiler Winding Machine With Automatic Strapping For PE Pipes
Double Station Plastic HDPE Pipe Coiling Winder Coiler Winding Machine With Automatic Strapping For PE Pipes
Double Station Plastic HDPE Pipe Coiling Winder Coiler Winding Machine With Automatic Strapping For PE Pipes
Double Station Plastic HDPE Pipe Coiling Winder Coiler Winding Machine With Automatic Strapping For PE Pipes
Double Station Plastic HDPE Pipe Coiling Winder Coiler Winding Machine With Automatic Strapping For PE Pipes
Double Station Plastic HDPE Pipe Coiling Winder Coiler Winding Machine With Automatic Strapping For PE Pipes
Specifications
Brand Name :
Kechengda
Model Number :
SJ-32
Place of Origin :
Qingdao，Shandong
MOQ :
1
Price :
USD 32000~80000
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
30 work days
Packaging Details :
wrapping film
Condition :
NEW
Video outgoing-inspection :
Provided
Machinery Test Report :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Weight :
1200KG
Warranty :
1 Year
Key Selling Points :
Fully automatic, low noise level
Description
Overview
Product Description

Product Application

The machine is suitable for winding the plastic hoses such as the aluminum plastic compound pipe, PE pipe and cross linked compound pipe which are pulled out from the front passage. The machine adopts the method of automatic winding, adjusting winding speed and winding tension to ensure the continuity of production. Adopt pneumatic wheel spokes adopt pneumatic opening or closing, at the same time, equipped with smooth rod line arranger, automatic line arrangement, to achieve even line arrangement, neat winding, the whole machine has a compact structure, high degree of automation, beautiful appearance.

Model Φ 16 and 32 single and double winding machine technical parameters
Winding inner diameter
350 mm - 900 mm can be adjusted
Winding outer diameter
950mm-1400mm
Width
400mm adjustable
Winding PE pipe
250m-350m for each roll
Winding speed
0.5-40m/min
Motor
torque motor 10 nm, grade 6
Reducer
WPA80, speed ratio 1:20
Main electrical appliances
Delixi
Air pressure
0.6MPA
Weight
1200KG
Dimensions
2700 x 1800 x 1900mm

Double Station Plastic HDPE Pipe Coiling Winder Coiler Winding Machine With Automatic Strapping For PE Pipes

Main Features

1)Affordable : manufacturers directly supply! Avoid middlemen wholesale and retail manufacturers direct sales

2)Quality assurance : Professional manufacturers of quality production supporting manufacturers of all products quality assurance for one year. Our company sells the equipment, free warranty period for one year, warranty period, spare parts replacement and maintenance are free to provide

3)After-sales service : Service time commitment, if the machine breaks down during the use of the equipment, the user department shall cut off the power supply and notify the service department of our company orally or in writing. The service department of our company will submit the solution and notify the buyer within 24 hours after receiving the notice

4)Security : Adequate spare parts inventory: in order to reduce the cost of spare parts inventory for customers and provide better and faster services, we have prepared enough spare parts for inventory at any time, so that you can provide spare parts for repair or maintenance at any time
