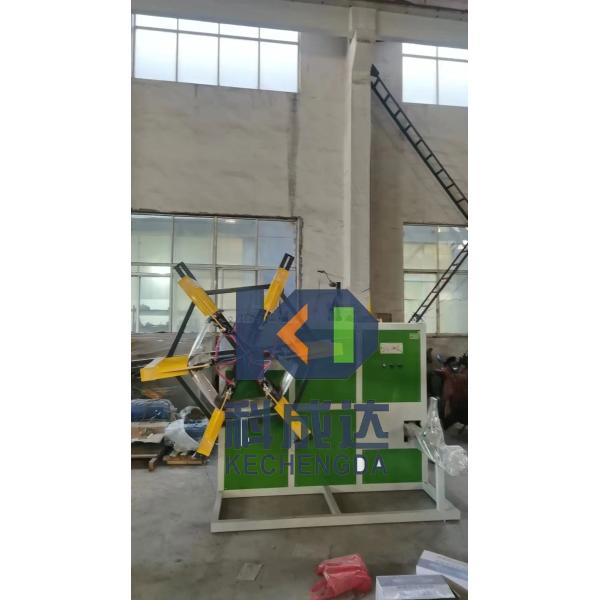

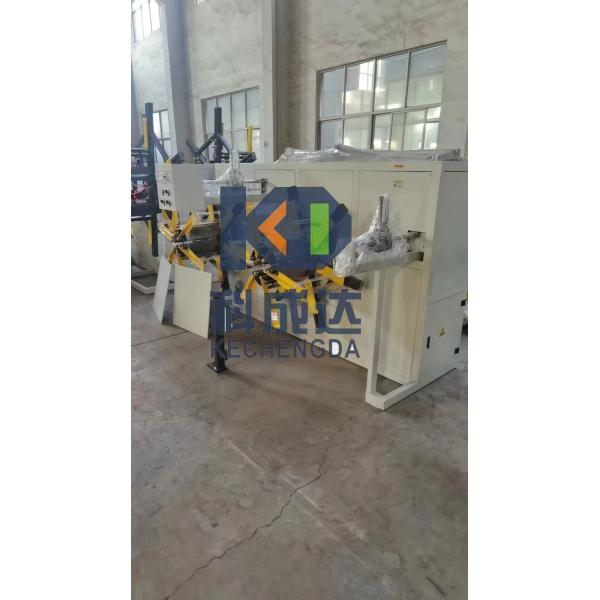

Polestar Machinery Single Station Automatic Plastic Winding Coiler for 50-110 PE PP Pipe
Polestar Machinery Single Station Automatic Plastic Winding Coiler for 50-110 PE PP Pipe
Polestar Machinery Single Station Automatic Plastic Winding Coiler for 50-110 PE PP Pipe
Polestar Machinery Single Station Automatic Plastic Winding Coiler for 50-110 PE PP Pipe
Polestar Machinery Single Station Automatic Plastic Winding Coiler for 50-110 PE PP Pipe
Polestar Machinery Single Station Automatic Plastic Winding Coiler for 50-110 PE PP Pipe
Polestar Machinery Single Station Automatic Plastic Winding Coiler for 50-110 PE PP Pipe
Polestar Machinery Single Station Automatic Plastic Winding Coiler for 50-110 PE PP Pipe
Specifications
Brand Name :
Kechengda
Model Number :
SJ-32
Place of Origin :
Qingdao，Shandong
MOQ :
1
Price :
usd 32000~80000
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
30 work days
Packaging Details :
wrapping film
Condition :
New
Core Components :
PLC, Engine, Bearing, Motor, Pressure vessel, Gear
Weight :
2000
Key Selling Points :
good quality, long use life, good service
Application :
plastic pipe winding
Inside Diameter Range :
1000-2200 mm
Outside Diameter Range :
3300 mm
Spool Capacity :
300 m
Description
Products Description
There are single and double coilers for your choice!
Polestar Machinery Single Station Automatic Plastic Winding Coiler for 50-110 PE PP PipePolestar Machinery Single Station Automatic Plastic Winding Coiler for 50-110 PE PP Pipe

Plastic pipe coiler.

The pipe coiler is mainly used to collect soft plastic pipes. The machine is high automatic and can be applied in many pipe production lines.With good quality, it has long service life which saves cost and labors.
Product Paramenters
Specification
20-40
Single
20-40
Double
20-63
Single
20-63
Double
63-110
Single
Coil Range (mm)
20-40
20-40
20-63
20-63
63-110
Coiling Speed
16m/min
16m/min
12m/min
12m/min
5.5m/min
Minimum Diameter
0.58m
0.58m
0.58m
0.58m
1.6m
Max Diameter
1.8m
1.8m
2.2m
2.2m
3.1m
Adjust ID range
0.58m-1.2m
0.58m-1.2m
0.58-1.6m
0.58m-1.6m
1.6m;1.8m;2.0m
Width
0.4m-0.6m
0.4m-0.6m
0.4m-0.6m
0.4m-0.6m
0.5m-1.2m
Trans Power
YLJ1132M-16-4/ Y112M-4
YLJ1132M-16-4/ Y112M-4
YLJ132M-25-4/ Y132S-4
YLJ132M-25-4/ Y132S-4
YLJ132M-40-6/ Y132M-6
Pneumatic Pressure
0.3-0.6MPA
0.3-0.6MPA
0.3-0.6MPA
0.3-0.6MPA
0.3-0.6MPA
Product Details
