ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers
ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers
ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers
ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers
ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers
ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers
ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers
ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers
ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers
ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers
ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers
ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers
Specifications
Model NO. :
skeleton trailer
Tread :
1820mm
Grade :
Light Duty
Types of Suspension Systems :
Cross Arm Type
Shape :
Flatbed
Axle Number :
3
Tire Number :
12
Self-dumping :
Not Self-dumping
ABS Anti-lock Braking System :
ABS Anti-lock Braking System
Material :
Steel
Condition :
New
Wheelbase :
7,500+1,310+1,310mm
Payload :
30-100 T
Tare Weight :
6 Tons
Function :
Transport 1X20FT, 2X20FT, 1X40FT Container
Main Beam :
Q345b
Axle :
13t/16t, Fuwa/BPW, etc
Tire :
12.00r22.5 ; 315/80r22.5; 11.00r20; 12.00r20
Rim :
9.00*22.5/8.00-20/8.5-20
Suspension :
Mechanical Suspension
Leaf Spring :
10/10/10 Leaf Spring with 90mm(W) *13mm(Thickness)
King Pin :
Jost Brand 2.0 or 3.5 Inch
Spport Leg :
Jost Brand Two Speed
Tool Box :
One Piece 1m *0.5m*0.5m
Twist Locks :
Four, Eight or Twelve Pieces
Valve :
Wabco Valve
Transport Package :
Nude
Specification :
12500x2500x1650mm
Trademark :
SKL9401
Origin :
China
HS Code :
3708960665
Supply Ability :
50000/Year
After-sales Service :
Techinical&Spare Parts Support
Warranty :
One Year
Type :
Semi-Trailer
Load Capacity :
30T
Certification :
SGS
Wheel Base :
7000-8000mm
Customization :
Available | Customized Request
MOQ :
1 unit
Price :
Negotiable
Delivery Time :
15-20 days after deposit received
Payment Terms :
LC, T/T, Western Union, Small-amount payment
Place of Origin :
China
Description

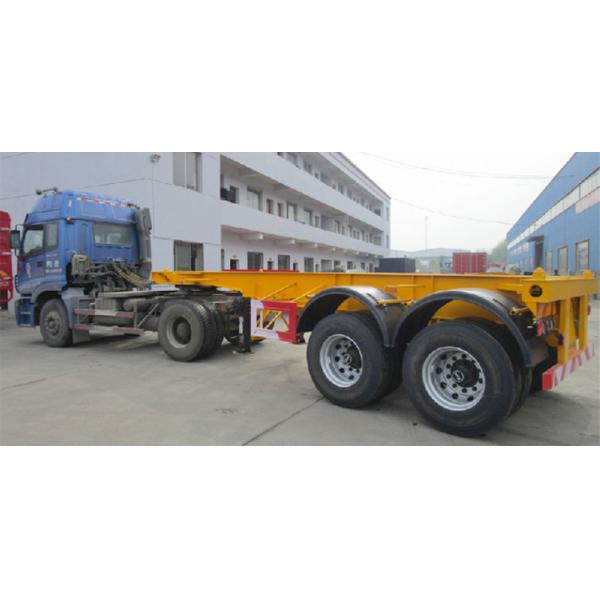

20 ft double axle container trailer chassis semi trailers
ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers
ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi TrailersABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers

ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers

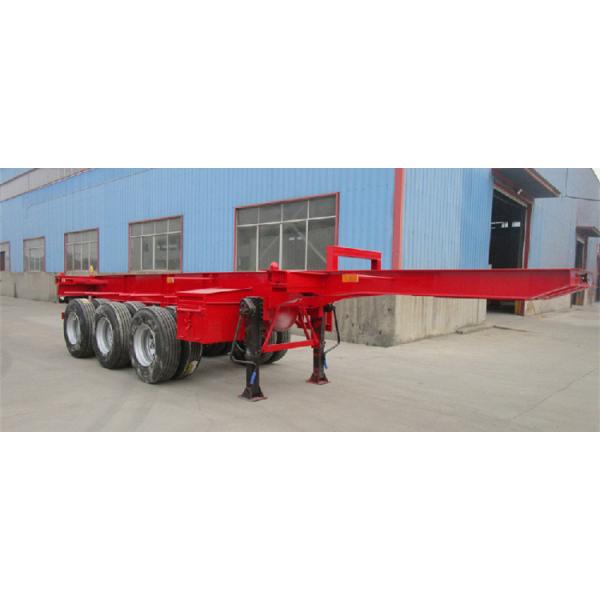

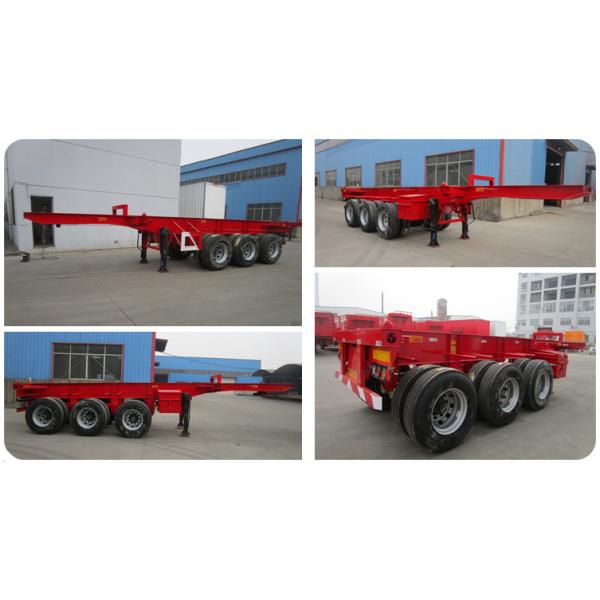

20ft 3 axles skeleton trailer

ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers

Three axle shipping 40FT Container Trailer

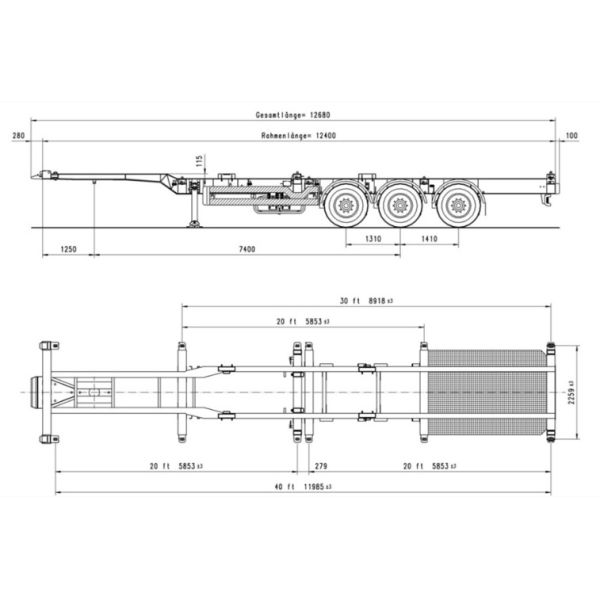

Specification For 20 ft double axle container trailer chassis semi trailers
Type Skeleton semi trailer
Tare Weight Approx. 6 T
Dimension 12500*2500*1650mm
Loading Capacity 30-100 T
Axle 13T/16T, FUWA/BPW, etc
Rim 9.00*22.5/8.00-20/8.5-20
Tire 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional
Suspension Mechanical suspension(Germany type or America type) or Air suspension
Leaf Spring 90(width)mm*13(thickness)mm*10 layer(especial for exporting market)
King pin Jost brand 2.0 or 3.5 inch
Spport leg Jost brand two speed
Main beam Material is Q345B steel
Side beam 16mm channel steel (Material is Q235B steel)
Bottom Platform 3mm checquered steel plate
Brake chamber Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks
ABS Optional
Twist locks Four, eight or twelve pieces(Lifting type or twist screw type)
Valve Wabco valve (especial for exporting market)
Light LED Light (especial for exporting market)
Voltage 24V
Receptacle 7 ways (7 wire harness)
Tool box One piece 1m *0.5m*0.5m ( size can be customized)
Painting 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer
Any parts fitted could according to clients request, contact us to get more.

ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers

ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi TrailersMain products
1. Dump Truck / Tipper Truck
2. Howo tractor Truck/ prime mover truck
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement trailer
10. High-altitude operation truck
11.Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )

ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers

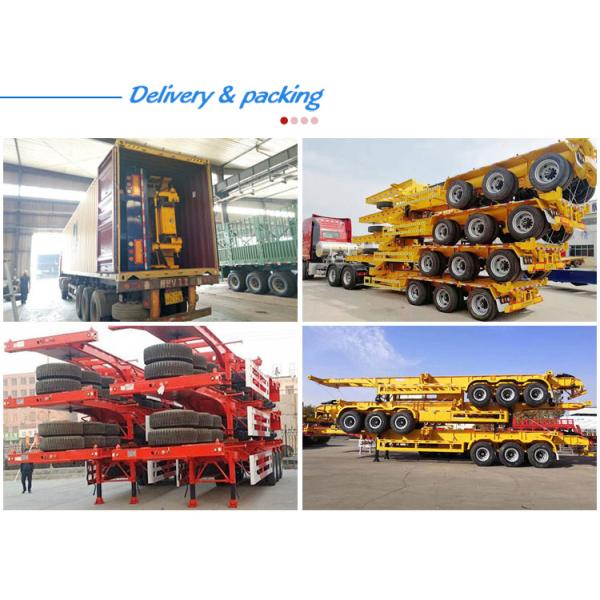

Shipping method for 20 ft double axle container trailer chassis semi trailers:

Usually Our Trailer can be shipped by Ro-ro ship or Bulk ship or 40hc container.

Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free.ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers

ABS Anti-lock Braking System 20 FT Double Axle Container Trailer Chassis Semi Trailers

FAQ:
1. Q: What's your MOQ?
A: One unit trailer or truck.
2. Q: What is your lead time?
A: Usually it is 15-20 days after deposit received.
3. Q: What is the warranty of the trucks?
A: 12 months about engine, axle and transimission, some spare part can be 18 months. And we can help you solve every problem about the truck by email and phone whole life.
4. Q: What's your payment terms?
A: T/T: 30% deposit by T/T,70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter.
5. Q:If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
A:You can tell me that you are using the Tractor/Primer Mover model or the distance between fifth wheel and the ground, we can design a height that matches your Tractor.
6. Q:If We Can Provide Terms For Reducing Your Import Duties ?
A:Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction, Will Also Offer You The Best Way For Import Duty Reduction.
7. Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
