Specifications
Model NO. :
insulator
Size of Bearing Capacity :
550KN
Certification :
CCC, CE, ISO9001
Color :
White
Brand :
Komliga
Transport Package :
by Sea, Train
Specification :
940X1360X1070
Trademark :
KOMLIGA
Origin :
China
HS Code :
8546209090
Supply Ability :
50000/Year
Application :
High-voltage, Low-voltage, High-temperature
Material :
Porcelain
Structure :
Bushing Insulator
Type :
A Type Insulator
Usage :
High Voltage Power Transmission, Insulation, Driving, Electrical Installation
Connection Method :
Spherical Type
Samples :
US$ 100/Piece 1 Piece(Min.Order) | Request Sa
Customization :
Available | Customized Request
Place of Origin :
China
Description
Connection Method Spherical Type Electric Porcelain Insulators Sell by EPC Contractor

Product Description

What we can do

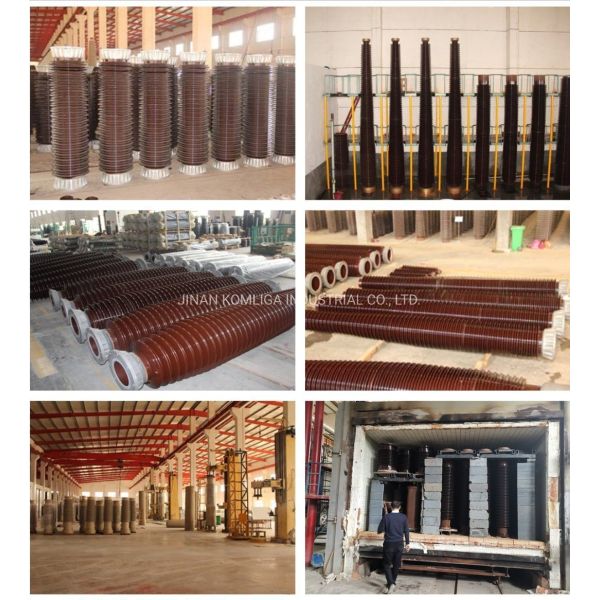

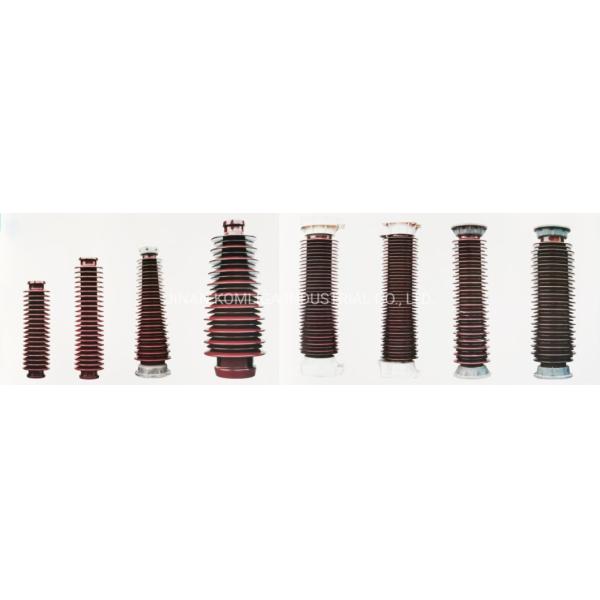

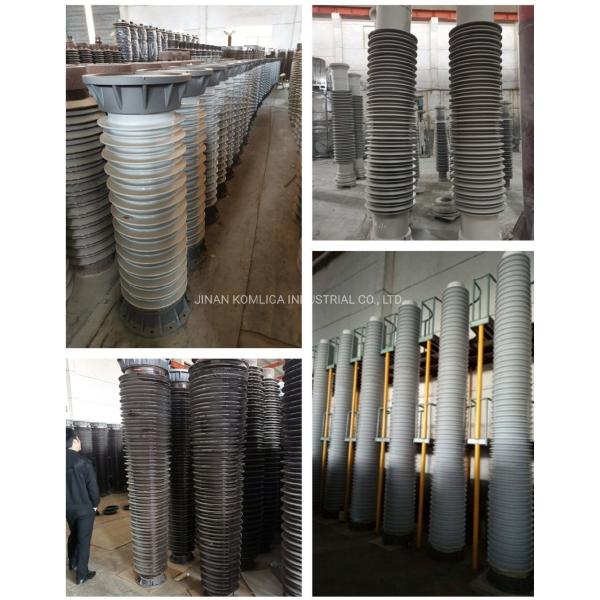

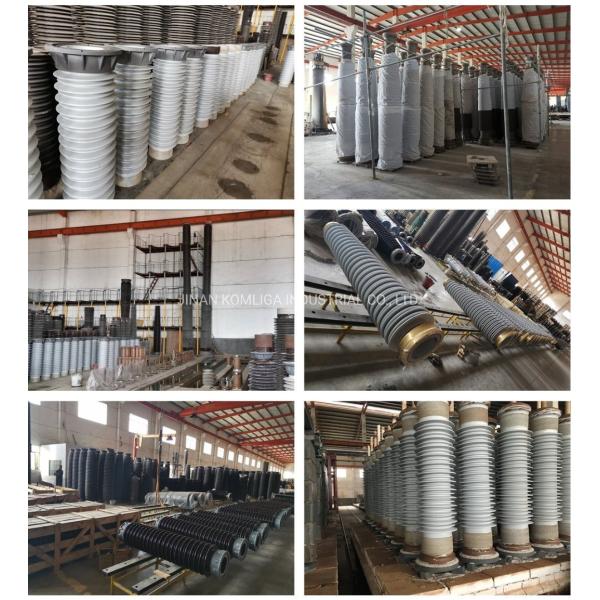

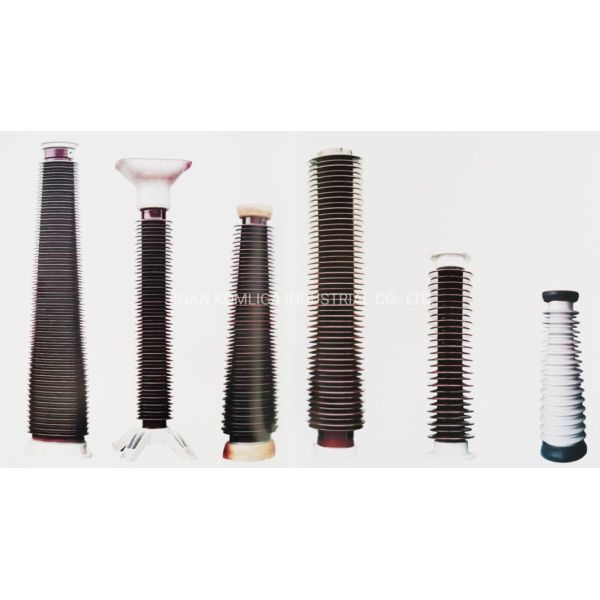

Porcelain hollow insulators
BASIC PRODUCTION MOTHED
Method of producing Wet process
Material of porcelain C120 as per IEC672-3
C130 as per IEC672-3
Glaze color Brown
Grey
White

Flange material		 Al. Alloy as per GB,ASTM,EN etc
Cast iron as per GB
Other material available
Max. height of single piece 2600mm
Max. height for inorganic adhesive glaze boned 4000mm
Max. height of multi-pieces epoxy jointed 9500mm
Max. outer diameter 1000mm
  1. We are professional manufacturer with competitive price.
  2. Used for surge arrester, SF6 circuit breaker, instrument transformer, cable terminal, transformer and GIS and so on.
  3. Voltage class can be made up to 1100KV.
  4. Ultra-high mechanical performance, using C130 formula
  5. Ultra-low tolerance
  6. Inorganic adhesion can be up to 12M, Height for single piece can be up to 2.9M, Max dia. for single piece up to 1.1M.
  7. According to IEC and ANSI standard.
  8. Can meet customers' specific design request
  9. Brown or gray color both available
Connection Method Spherical Type Electric Porcelain Insulators Sell by EPC Contractor
Connection Method Spherical Type Electric Porcelain Insulators Sell by EPC Contractor
Connection Method Spherical Type Electric Porcelain Insulators Sell by EPC ContractorWe are producing…
--252kV insulators for inverted current transformer
--550kV insulators for inverted current transformer
-- 550kV insulator for cable terminals
--550kV insulators for transformers
--252kV insulators for circuit breaker
--363kV insulators for circuit breaker
--550kV Insulators for grading capacitors
--750kV Insulators for CVT (Capacitor voltage transformer)
--126kV Insulators for GIS (Gas insulated substation)
--252kV Insulators for GIS (Gas insulated substation)
--Inorganic bonded (Glaze bonded)insulator for363KV SF6 current transformer
--550kV & 750kV insulators for surge arresters
Connection Method Spherical Type Electric Porcelain Insulators Sell by EPC ContractorConnection Method Spherical Type Electric Porcelain Insulators Sell by EPC ContractorConnection Method Spherical Type Electric Porcelain Insulators Sell by EPC Contractor

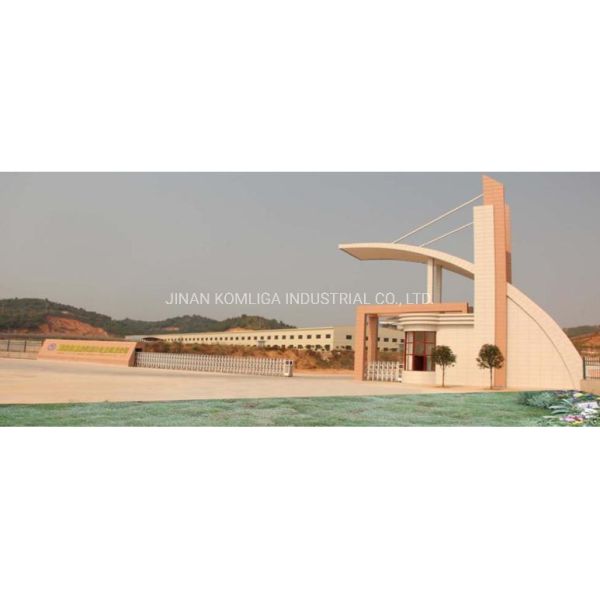

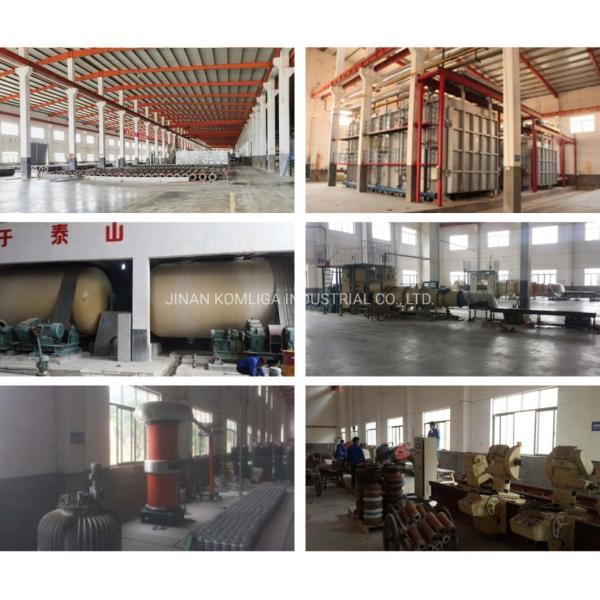

Company Profile
