Specifications
Brand Name :
AllWin
Model Number :
SH50 SH60
Certification :
ISO9001
Place of Origin :
China
MOQ :
1-5set
Price :
USD5000--USD48800/set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30sets /month
Delivery Time :
20-30 Working Days
Packaging Details :
Wooden boxes
Inner chamber :
SIC Ceramic
Pin material :
9Cr18Mov or 304Stainless steel
Applicaiton :
Digital ink,Car paint ,New materials
Power :
75kW
Voltage :
415V or you need
Weight :
2000KG
Volume :
30L 50L 60L
Color :
white and blue
Feed pump :
1" ARO diaphragm pump
Warranty :
1 year
Description

75kW Pin Type Structure SH50 SH60 Horizontal Sand Mill For Digital Ink, Car Paint, New Materials

The advantages of Pin type Bead Mill

L 1. Long history and plentiful experiences with 28 years, The founder of ALLWIN,Mr. Yongqi WANG , he was the first Chinese designer of sand/bead mill in 1967; have many experiences in different industy, could reach miciron or nanometer requiriments.

2. Master the core technology of dispersing and grinding;

3. High efficiency and low energy consumption;

4. Stable, high efficiency and low maintenance.

5.

The detailed information:

No main parameters SH50 Note
1 Explosion-proof motor kW 75
2 Effiective volumeL 50
3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions: L*W*H (mm) 2000*900*2000
6 Weight (kg) 2000kg

2.2 Detailed Configuration information:

No Main parts SH 50 Ex--proof Notes
1 External vessel 304 stainless steel
2 Inner grinding chamber Silicon Carbide ceramic (SiC)
3 Dispersing shaft 40Cr with hard chromium plating
4 Dispersing system (Rotator+pin)

304 stainless steel rotator

Wearable stainless steel pin type structre
5 Feeding and discharging end covers on the chamber 304 stainless steel
6 Static discharge screen ring 304 stainless steel Wire Wound screen ring with Gaps: 0.3mm.
7 Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system
8 Feeding pump 1” ARO diaphragm pump;

9

 Appliance configuration Explosion-proof machine, suitable for water base materials, motor 45kW. Explosion-proof parts: operation column, electrical appliance boxes; electric contact pressure gauge, temperature, solenoid valves with Ex electrical contacts. Control system ( Touch Screen with Ex proof)
10 Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

 Quick and convenient

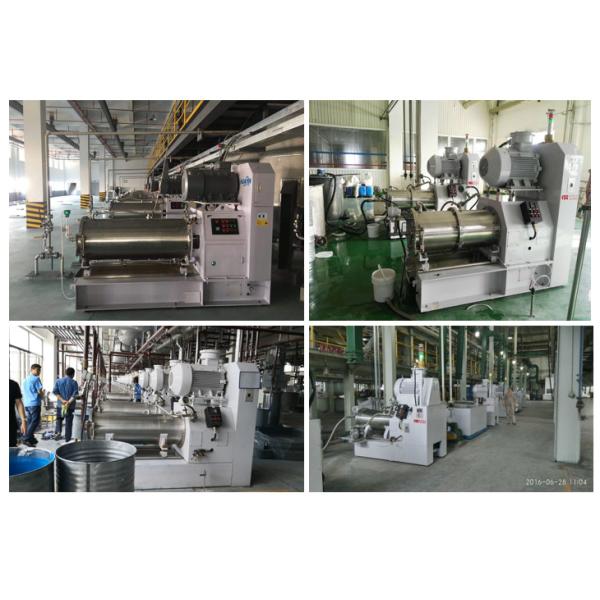

2.Pics of all kinds of mill in customers' workshop

75kW Pin Type Structure Horizontal Sand Mill For Digital Ink , Car Paint , New Materials

Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.


If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
