Specifications
Brand Name :
Allwin
Model Number :
SP250, SP500
Certification :
ISO9001
Place of Origin :
Chongqing,China
MOQ :
1 unit
Price :
USD 90000---138000 Per Unit
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
30 Units per Month
Delivery Time :
20-30 Work Days
Packaging Details :
Wooden Boxes
Inner Chamber Matrial :
SUS 304 Stainless Steel
Outter Chamber Material :
SUS 304 Stainless Steel
Effective Volume :
100/250L
Motor Energy :
55/75KW
Ex-proof Performance :
Non Explosion-proof
Operation Control :
Button type/PLC
Application :
Nylon , chemical fiber
Warranty :
12 months
Dispersing type :
Composite structure
Discharging manner :
static discharge
Description

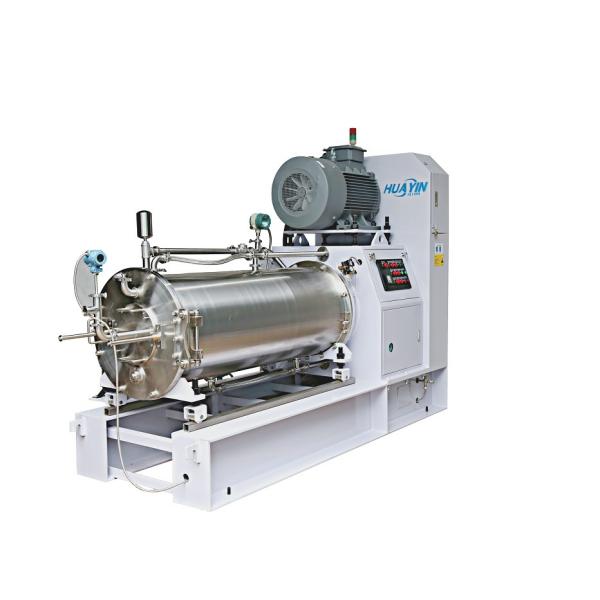

Mass Production 100/250L Disk Type Bead Mill Machine Applicated In Nylon And Chemical Fiber Of TiO2


250/100 liter large flow bead mills are usually used in nylon and chemical fiber of TiO2 industry. Our machines can help users save electric fees more than 30%, and also reduce the labor cost, Meanwhile, the effeciency is at least 20% higher than normal bead mills. we have many successful experience of grinding chemical fiber and nylon.Welcome to consult to know more information.

1. Technical data of large flow horizontal bead mill

No Main Parameters SP100 /250 bead mill Notes
1 Motor power
(kW)		 55/75KW Ex-proof/non ex-proof available
2

Effective volume of

grinding chamber (L)

 100/250L volume can be suggested according to different grinding materials and usages
3 Water pressure
(MPa)		 0.3
4 Cooling water consumption (L/min) 2.0 -3.0 m3/h Advision: Users offer the Cooling water less 10°C
5 Dimensions:L*W*H
(mm)		 ---
6 Weight
(kg)		 About 2300/3200 Different as for different chamber volume
2. Configuration Instructions

No

Main parts

 SP100/250 Notes
1 Material of External vessel SUS 304 stainless steel
2 Material of Inner grinding vessel SUS 304 stainless steel different mateials for choice
3 Material of Dispersing shaft 40Cr with hard chromium plating
4

Material of dispersing system

 304 stainless steel, steel coated with PU Choose what you need
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.50.3mm. dynamic scraper: alloy steel
7 Mechanical seal Double end mechanical seal
8 Feeding pump 1.5"/2" ARO diaphragm pump IngersoII Rand

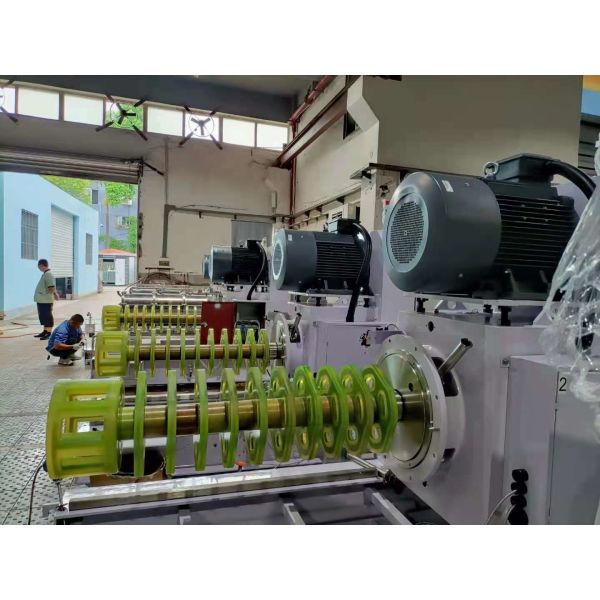

3. Display of processing scenes
Mass Production 100L/250L Disk Bead Mill Machine In Nylon And Chemical Fiber Of TiO2Mass Production 100L/250L Disk Bead Mill Machine In Nylon And Chemical Fiber Of TiO2
4. customer investigation
we always welcome customers to visit our work plant, and communicate the real thoughts on site, which can totally be beneficial to help customer to choose the most propriate series to process.
Mass Production 100L/250L Disk Bead Mill Machine In Nylon And Chemical Fiber Of TiO2
5. Exhibition show
we also positively particaipate in different industries meetings and exhibitions to show our allwin company to customers, to learn more information to make progress.
Mass Production 100L/250L Disk Bead Mill Machine In Nylon And Chemical Fiber Of TiO2
