316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry
316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry
316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry
316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry
316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry
316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry
316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry
316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry
316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry
316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry
316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry
316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry
Specifications
Brand Name :
Allwin
Model Number :
SH30/60
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
USD30000---60000 Per Unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30 Units per Month
Delivery Time :
20-30 Work Days
Packaging Details :
Wooden Boxes
Inner Chamber Matrial :
Stainless steel, 316/304
Outter Chamber Material :
SUS 304 Stainless Steel
Dispersing structure material :
Stainless steel, 316/304
Effective Volume :
30L 60L
Motor Energy :
22KW, 37kW
Application :
liquid medicine, capsule coat
Dispersing type :
pin type structure
Discharging manner :
static discharge
Description

316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry


Food grade stainless steel wet grinding horizontal bead mills are usually used in not only in food industry, but also in pharmaceutical industry, such as liquid medicines and capsule coates for other dry powder medicines.

1. Technical data of large flow horizontal bead mill

No Main Parameters SH30/60 bead mill Notes
1 Motor power
(kW)		 22/30/37KW Ex-proof/non ex-proof available
2

Effective volume of

grinding chamber (L)

 30/60L volume can be suggested according to different grinding materials and usages
3 Water pressure
(MPa)		 0.3
4 Cooling water consumption (L/min) 2.0 -2.5 m3/h Advision: Users offer the Cooling water less 10°C
5 Dimensions:L*W*H
(mm)		 ---
6 Weight
(kg)		 1200---1700 Different as for different chamber volume
2. Configuration Instructions

No

Main parts

 SH30/SH60 Notes
1 Material of External vessel SUS 304 stainless steel
2 Material of Inner grinding vessel SUS 304/316L stainless steel different mateials for choice
3 Material of Dispersing shaft 40Cr with hard chromium plating
4

Material of dispersing system

 304/316L stainless steel Choose what you need
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5 mm. dynamic scraper: alloy steel
7 Mechanical seal Double end mechanical seal
8 Feeding pump 1" ARO diaphragm pump IngersoII Rand

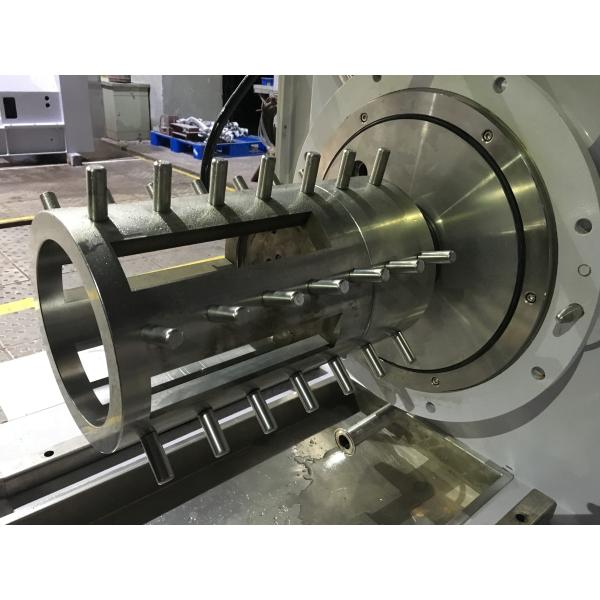

3. The pictures of processing and inspection

316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry

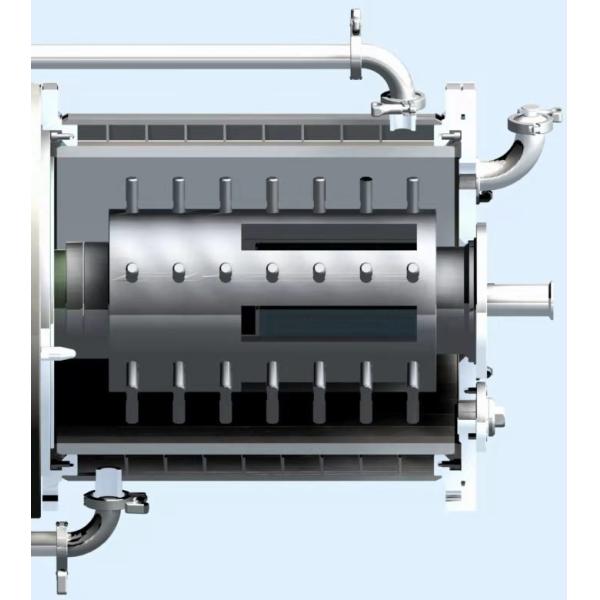

inner structure of grinding bead mills for SH series

316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry

4.Display of factory investigation
we always welcome customers to visit our work plant, and communicate the real thoughts on site, which can totally be beneficial to help customer to choose the most propriate series to process.
316L Stainless Steel Horizontal Bead Mill Applicated In Pharmaceutical Industry
5. After Sales Service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.



If need more detailed information and price, please don't hesitate contact us, Also Warmly welcome to visit us.
