Water Oil Based Grinding In Paint Ink Pesticide Disc Type Micron Ex-proof Bead Mill Machine

The main introduction:

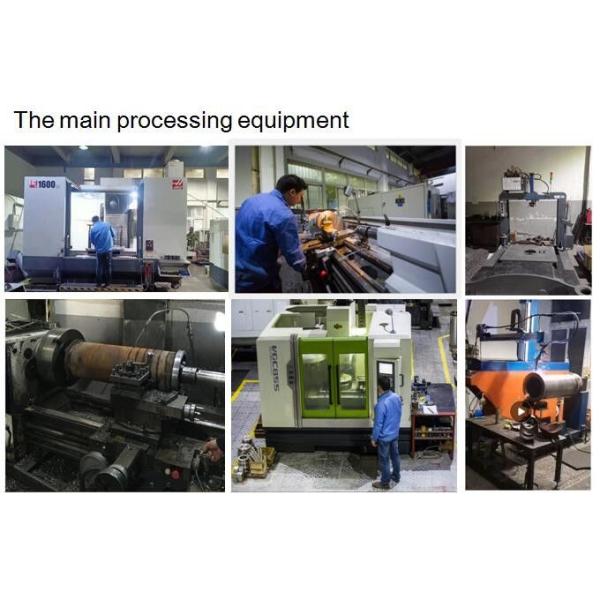

1. High independent technology: These sand grinding mills mainly consist of chamber and disc dispersing system, input system. output system, cooling system, lubrication system and driving system.The double end mechanical sealing with independent technology could resistant to more than 1600 kinds of solvents.Machines operate more stable and life-long with high precision CNC (American imported 4 axis machine).

2. Urtra fineness: The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .

3. Better Cooling system:The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange.

4. High Efficiency: The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.

4. Different materials chosed for inner chamber and dispersing discs: All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.

5. Bigger and Smaller grinding media for different needs: The grinding media is extremely from 0.3-3.0mm are suitable for this series mills. We recommend the 95% zirconium beads. The discharging is great flow with bigger screen rings which can be easily cleaned and removed.

6. Widely application used: This Super series are widely used in coating and paint, pigment, pesticide and agro-chemical industry, pigment and dyes, printing inks, gravure inks, food and food processing,non-metallic minerals, titanium dioxide,etc.

The Technical Data:

The Configuration instructions:

1.Outer chamber materials: 304 stainless steel

2.Inner Chamber materials: Silicon Carbide Ceramics, 9Cr18Mo alloy steel, SUS 304 stainless steel, hard alloy steel

3.Dispersing shaft: 40Cr with hard chromium plating

4.Dispersing disk: PU coated 304 stainless steel, Cr12MoV, GCr15, 9Cr18Mo alloy steel

5.Feeding and discharging end covers on the cylinder: 304 stainless steel

6.Centrifugal separator: 304 stainless steel

7.Static discharge screen ring: screen ring with SUS 304.gaps: 0.5mm.

8.Mechanical seal: Intelligent double mechanical seal with independent technology

9.Feeding pump: 1.5” ARO diaphragm pump;

10.Appliance configuration: explosion-proof machine, suitable for water/oil based universal materials, motor 37kW. explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves

11.Operation control system :button type or PLC touch type

12.Fasteners and connecting parts: Stainless steel clamp-type connecting parts.

This series from 5L to 300L

"SUPER" SP series of Bead Mill
Type	Working Volume (L)	Power (kW)	Grinding Beads (mm)	Throughput (kg/h)
SP5	5	7.5	0.3-3.0	20-200
SP15	15	15	0.3-3.0	50-500
SP30	30	30	0.3-3.0	70-700
SP50	50	37	0.3-3.0	100-1000
SP100	100	55	0.3-3.0	300-3000
SP250	250	75	0.3-3.0	450-4500
SP300	300	90	0.3-3.0	550-5500

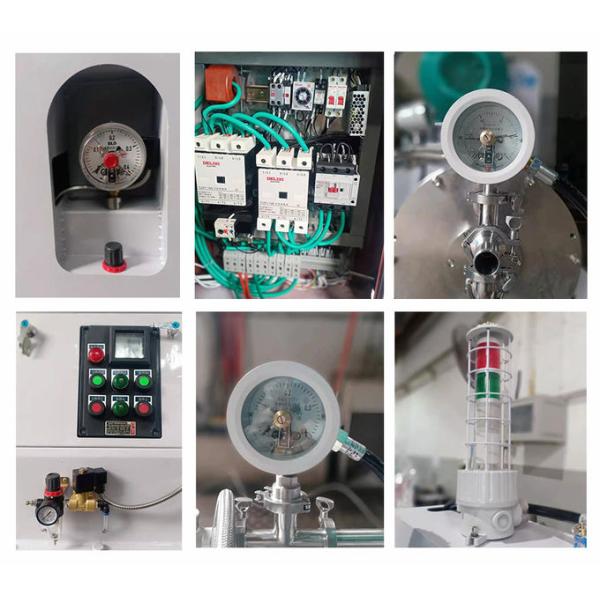

The details and spares:

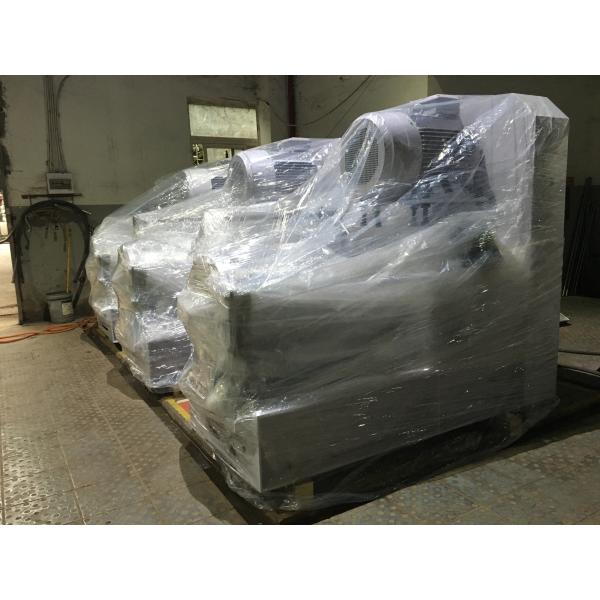

The packing and delivery (firstly anti-abrasion film and packed in wooden boxes)

The related products:

FAQ:

Q1: Are you a trading company or manufacturer?

A1: We are the manufacturer.

Q2: Where is your company and factory located? How can I visit you?

A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!

Q3: Do you have own R&D team?

A3: Yes, we have 12 engineers, and our products could be customized for your requirements.

Q4: What is your after-sale service?

A4: we offer 1 year warranty except quick-wear parts. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.

Q5: How is the payment?

A5: Firstly paid the deposit, then paid the balanced before shipping.

If need more detailed information and price ,please contact us soon and warlmly welcome to visit us!
