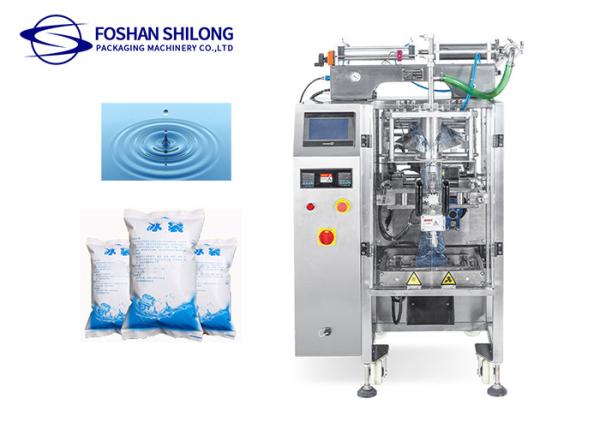

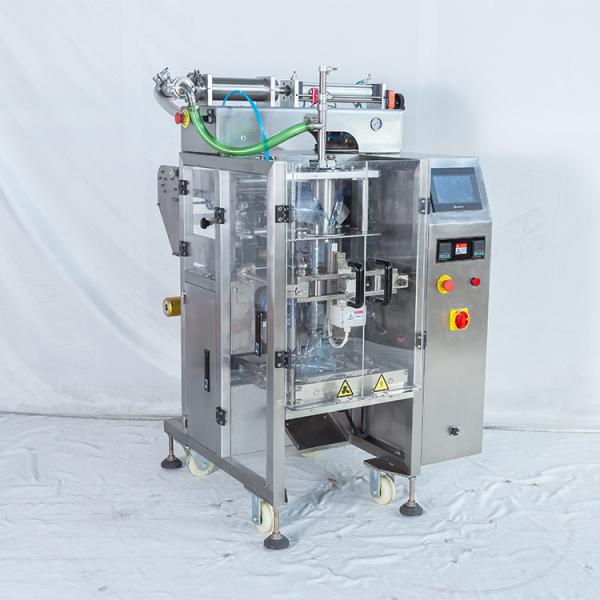

CE Automatic Vertical 800ml Liquid Filling Sealing Machine
CE Automatic Vertical 800ml Liquid Filling Sealing Machine
Specifications
Brand Name :
Shilong
Model Number :
SLIV-320/420
Certification :
CE
Place of Origin :
Foshan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15-25/day
Delivery Time :
100 Set/Month
Packaging Details :
L1200*W1050*H1250mm
Available equipment :
Electronic scale, screw metering machine, syringe pump, rotor pump
Measurement range :
800ml (subject to the actual material)
packing speed :
20-60 packs/min
Maximum width of roll film :
320mm
bag size :
Width: 40-150mm; Length: 50-230mm; Longitudinal seal: 10mm; Horizontal seal: 15mm,
Seal type :
Back Seal, Gusseted Pillow Bag
Total power :
2.6kw
Power supply :
220V or 380V50-60HZ
Machine weight :
300kg
Machine size :
L1200*W1050*H1250mm
Description

Automatic Vertical Pouch Sachet Water Bag Liquid Packing Filling Sealing Machine

Features


This sachet filling machines are offered in models with photocell monitoring and without photocell monitoring. Photocell monitoring is used to fill pouches with preprinted labels to ensure that all the bags are uniform in the placement of the logo on the bag. The model without photocell monitoring fills and packages the sachet to the same length and capacity, but is does not guarantee the logo on the bag is in the same placement across all bags.

Product advantages


1. The finished product bag is exquisite and reliable, hygienic and safe
2. Assemble the photoelectric control device to ensure the integrity of the packaging bag pattern
3. Automatically complete bag making, measuring, filling, sealing, cutting, counting,printing batch number
4. The shell and material contact parts are made of stainless steel.

Liquid Packaging Machine Specification

Available equipment Electronic scale, screw metering machine, syringe pump, rotor pump
Measurement range 800ml (subject to the actual material)
packing speed 20-60 packs/min
Maximum width of roll film 320mm
bag size Width: 40-150mm; Length: 50-230mm; Longitudinal seal: 10mm; Horizontal seal: 15mm,
Seal type Back Seal, Gusseted Pillow Bag
Total power 2.6kw
Power supply 220V or 380V50-60HZ
Machine weight 300kg
Machine size L1200*W1050*H1250mm
