ASTM A 6/A 6M-07 American Standard Wide Flange Steel H Beam
ASTM A 6/A 6M-07 American Standard Wide Flange Steel H Beam
ASTM A 6/A 6M-07 American Standard Wide Flange Steel H Beam
ASTM A 6/A 6M-07 American Standard Wide Flange Steel H Beam
Specifications
Brand Name :
PUXIANG, TSINGSHAN
Model Number :
H Beam
Certification :
ISO,CE
Place of Origin :
China
MOQ :
2 ton
Price :
US$1980-US$2180
Payment Terms :
T/T, T/T + L/C
Supply Ability :
1000ton/month
Delivery Time :
10-15 working days after receiveing advance payment
Description :
Stainless Steel H Beam
Grade :
304, 316 etc.
Size :
157x153x6.6x9.3mm
Length :
6m to 12m or as required
Type :
Tapered and Non-Tapered
Package :
Standard Export Package
Description

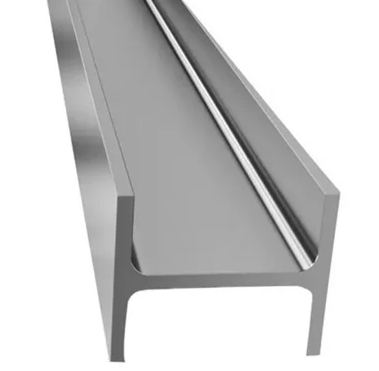

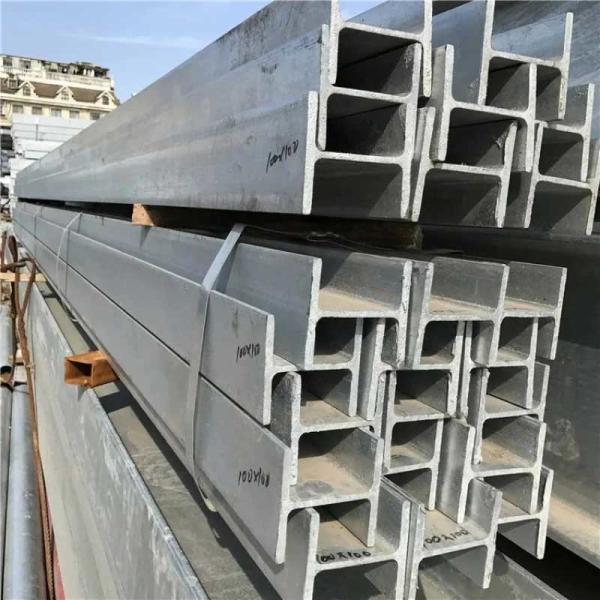

ASTM A 6/A 6M-07 American Standard Wide Flange Steel H Beam, H-Sections

H-section steel is a kind of economical section and high-efficiency section with more optimized cross-sectional area distribution and more reasonable strength-to-weight ratio. It is named because its section is the same as the English letter "H". Since the various parts of the H-shaped steel are arranged at right angles, the H-shaped steel has the advantages of strong bending resistance, simple construction, cost saving and light structure in all directions.

ASTM A 6/A 6M-07 H Beam, H-Sections
ASTM A 6/A 6M-07 American Standard Wide Flange Steel H Beam ASTM A 6/A 6M-07 American Standard Wide Flange Steel H Beam
Item Geometry Weight
h (mm) b (mm) tw(mm) tf (mm) r1(mm) (kg/m)
W 150x22.5 152 152 5.8 6.6 10 22.8
W 150x29.8 157 153 6.6 9.3 10 30.2
W 150x37.1 162 154 8.1 11.6 10 37.5
W 200x35.9 201 165 6.2 10.2 10 35.9
W 200x46.1 203 203 7.2 11 10 46
HP 200x53 204 207 11.3 11.3 10 53.5
HP 250x62 246 256 10.5 10.7 12 62.5
W 250x73 253 254 8.6 14.2 12 72.8
W 250x80 256 255 9.4 15.6 12 80
HP 250x85 254 260 14.4 14.4 12 85.2
W 250x89 260 256 10.7 17.3 12 89.4
HP 310x79 299 306 11 11 16 78.5
HP 310x93 303 308 13.1 13.1 16 93.6
W 310x97 308 305 9.9 15.4 16 97
W 310x107 311 306 10.9 17 16 107.1
HP 310x110 308 310 15.4 15.5 16 110.7
W310x117 314 307 11.9 18.7 16 117.7
HP 310x125 312 312 17.4 17.4 16 124.8
W 360x110 360 256 11.4 19.9 16 110.4
W 360x122 363 257 13 21.7 16 121.9

ASTM A 6/A 6M-07 American Standard Wide Flange Steel H Beam


ASTM A 6/A 6M-07 American Standard Wide Flange Steel H Beam
ASTM A 6/A 6M-07 American Standard Wide Flange Steel H Beam
