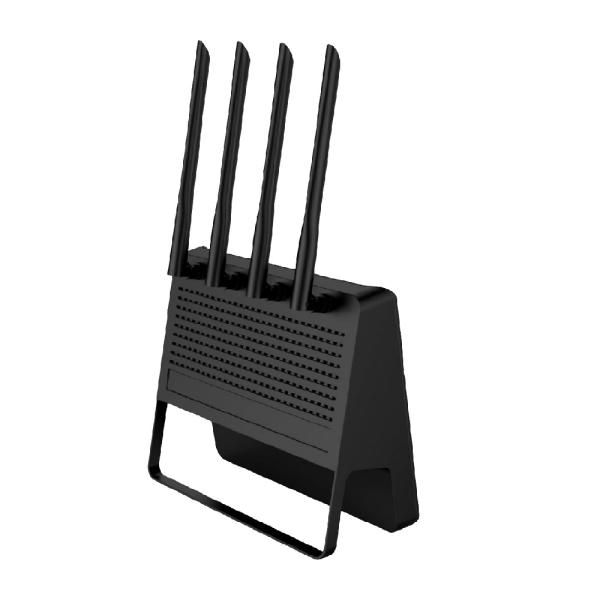

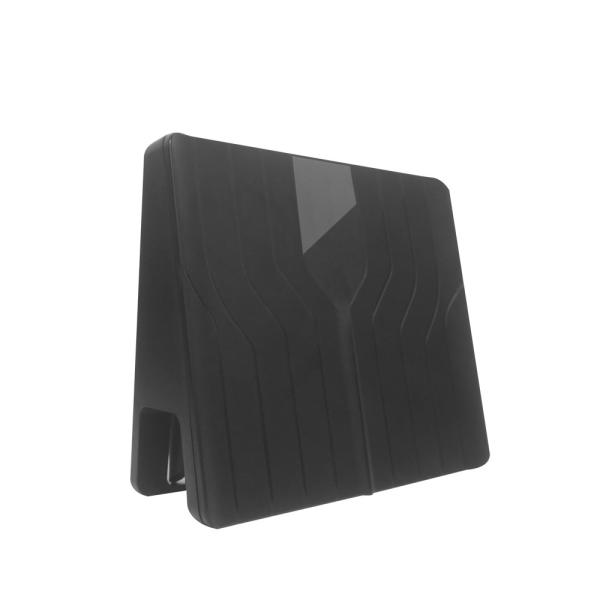

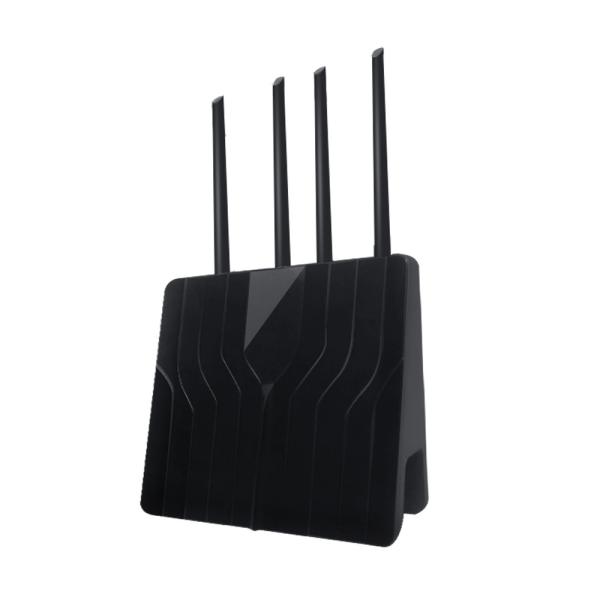

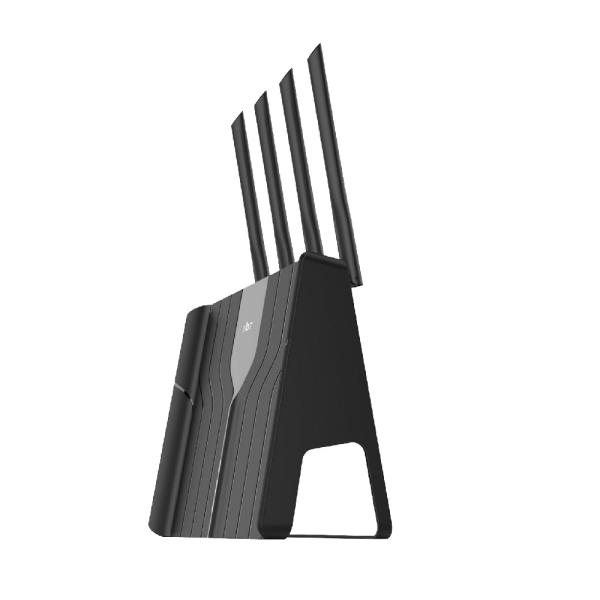

Dualband Fastest Wifi 6 Mesh Router Gigabit 1800Mbps Black Color For Home
Dualband Fastest Wifi 6 Mesh Router Gigabit 1800Mbps Black Color For Home
Dualband Fastest Wifi 6 Mesh Router Gigabit 1800Mbps Black Color For Home
Dualband Fastest Wifi 6 Mesh Router Gigabit 1800Mbps Black Color For Home
Dualband Fastest Wifi 6 Mesh Router Gigabit 1800Mbps Black Color For Home
Dualband Fastest Wifi 6 Mesh Router Gigabit 1800Mbps Black Color For Home
Dualband Fastest Wifi 6 Mesh Router Gigabit 1800Mbps Black Color For Home
Dualband Fastest Wifi 6 Mesh Router Gigabit 1800Mbps Black Color For Home
Specifications
Brand Name :
ZBT&OEM
Model Number :
Z600AX-D
Certification :
CE ,FCC &roHs
Place of Origin :
China
MOQ :
Sample order :1pcs, bulk order: 100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
20000pcs per Month
Delivery Time :
3-5 working days for sample order
Packaging Details :
Paper Carton, 20pcs/carton
Wan ports :
1*10/100/1000 Mbps
Lan ports :
3*10/100/1000 Mbps
Flash/Ram :
128M nand flash/256M RAM
Color :
Black
Wi-fi supported frequency :
2.4GHz &5.8GHz
Antenna :
un-removable antennas
Wireless speed :
1800Mbps
Case :
Plastic case
Main chipset :
IPQ6000 Quad core CPU
Protocol :
802.11AX/AC/N/G/B
Description

Dualband Gigabit 1800Mbps Wifi6 Mesh Router Black Color Plastic Case Home IPQ6000 Wifi6 Mesh Internet Wireless

Z600AX-D specification.pdf

Features:

1).Support IEEE 802.11ax/ac/n/11b/g standard.

2).1*WAN+3*LAN 10/100/1000Mbps ports.

3).1* USB 3.0 data interface.

4).High speed 1800Mbps,dualband and gigabit ports.

5).Support MESH automatic networking.

Hardware specs:

4.1 Interface

Ports

1*1000M WAN Port (Auto MDI/MDIX)

IEEE 802.3/802.3u/802.ab

3* 1000M LAN Ports(Auto MDI/MDIX)

IEEE 802.3/802.3u/802.ab
USB 1* USB3.0
DC port DC5.0*2.1MM interface
Button 1* Reset button
antennas

2* external omnidirectional 5dBi 2.4G antennas,

2* external omnidirectional 5dBi 5.8G antennas

4.2 Function of indicator light

Power LED Always on when the power is connected, not on when the power fails or is not connected to the power supply
WAN LED The Internet port is always on, flashes when there is data communication, the network port comes with LED
LAN1 LED The Internet port is always on, flashes when there is data communication, the network port comes with LED
LAN2 LED The Internet port is always on, flashes when there is data communication, the network port comes with LED
LAN3 LED The Internet port is always on, flashes when there is data communication, the network port comes with LED
5.8G LED It is always on when the 5.8G WIFI function is enable,flashes when there is data communication, and it is not on when the 5.8G WIFI is not enable on or the 5.8G WIFI function is faulty.
2.4G LED It is always on when the 2.4G WIFI function is enable,flashes when there is data communication, and it is not on when the 2.4G WIFI is not enable on or the 2.4G WIFI function is faulty.
SYS LED

1. The red light is on during the boot process, the boot is complete, the red light is off and the green light is on

2. Press the mesh button to enter the mesh pairing state, the green light flashes once a second, and the other lights are off

3. The main equipment network is normal, the green light and blue light are on at the same time (cyan)

4. The slave device MESH is successfully connected, the green light is on at a long distance, the red light is on at the same time (orange), the distance is suitable, the green light is on, and the blue light is on at the same time (cyan)

4.3.Introduction

Processor Qualcomm IPQ6000 Quad core ARM Cortex A53s CPU, 1.2GHZ main frequency
WIFI chipset

QCN5022 2.4G. 802.11ax/n/g/b,Maximum 573.5Mbps, 2T2R

QCN5052 5.8G. 802.11ax/n/g/b,Maximum 1201Mbps, 2T2R
Ram DDR3 256MB
Flash 128MB NAND FLASH
Dualband Fastest Wifi 6 Mesh Router Gigabit 1800Mbps Black Color For HomeDualband Fastest Wifi 6 Mesh Router Gigabit 1800Mbps Black Color For Home
