Dualband 802.11 AX Wireless Router 2.4G 5.8GHz Wifi 6 Router MT7621 Chipset
Dualband 802.11 AX Wireless Router 2.4G 5.8GHz Wifi 6 Router MT7621 Chipset
Dualband 802.11 AX Wireless Router 2.4G 5.8GHz Wifi 6 Router MT7621 Chipset
Dualband 802.11 AX Wireless Router 2.4G 5.8GHz Wifi 6 Router MT7621 Chipset
Dualband 802.11 AX Wireless Router 2.4G 5.8GHz Wifi 6 Router MT7621 Chipset
Dualband 802.11 AX Wireless Router 2.4G 5.8GHz Wifi 6 Router MT7621 Chipset
Dualband 802.11 AX Wireless Router 2.4G 5.8GHz Wifi 6 Router MT7621 Chipset
Dualband 802.11 AX Wireless Router 2.4G 5.8GHz Wifi 6 Router MT7621 Chipset
Specifications
Brand Name :
OEM
Model Number :
Z100AX-D
Certification :
CE FCC ROHS
Place of Origin :
China
MOQ :
sample order:1pcs,Neutral bulk order :100pcs
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/week
Delivery Time :
3-5 working days
Packaging Details :
1unit packed in box,20pcs/carton
Chipset :
MT7621A
Ram :
256MB
Flash :
16MB
Color :
black
Wi-fi transmission standard :
802.11ax/ac/n/g/b
Ports :
1*WAN Port+3*LAN Gigabit Ports
power adapter :
12V 1A
Case :
Plastic case
Frequency :
Dualband 2.4G&5.8G
System :
Openwrt or OS
Description

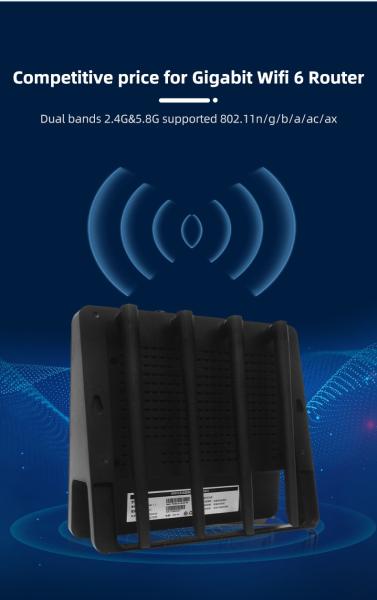

Dualband 1800Mbps Wireless Router Black Color Plastic Case 802.11AX Wifi 6 2.4G & 5.8GHz MT7621 Chipset
Wi-Fi 6 (original name: IEEE 802.11.ax) is the sixth generation of wireless network technology and is the name of the Wi-Fi standard. It is a wireless local area network technology created by the Wi-Fi Alliance based on the IEEE 802.11 standard. Wi-Fi 6 will allow communication with up to 8 devices up to 9.6Gbps

1.1 Brief overview

This document describes the electrical characteristics, RF performance, dimensions and application environment of z100ax. Under the introduction of this document, end users or developers can quickly understand the hardware functions of z100ax. Z100ax is a WiFi 6 home router, which can access the Internet through WAN port, and then share the Internet through wireless WiFi 6 and 1000Mbps wired LAN.

1.2 Reference standard

Relevant standards and specifications:

  • USB3.0/USB2.0 Bus Standard
  • IEEE802.11n/g/b/a/ac/ax
  • IEEE802.3/802.3u/802.ab

3 Main features of the product

  • Adopt mt7621a scheme, MIPs dual core CPU, main frequency up to 880mhz
  • Using independent WiFi 6 chip, mt7905d and mt7975d, the speed is up to 1800mbps
  • High speed 256MB DDR3 with 16MB NOR Flash
  • 1wan + 2lan 1000m adaptive network ports(Auto MDI/MDIX)
  • Support "one button brush mode", that is, long press the reset button to enter the rescue brush mode
  • It supports USB3.0 interface and can be used to expand USB storage
  • External high gain wifi antenna, wireless signal 360 degrees without dead angle

4 Hardware

4.1 Interface

Ports

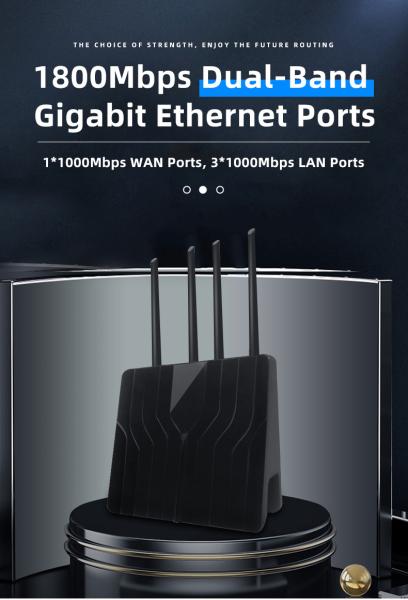

1*1000M WAN Port (Auto MDI/MDIX)

IEEE 802.3/802.3u/802.ab

3* 1000M LAN Ports(Auto MDI/MDIX)

IEEE 802.3/802.3u/802.ab

USB1* USB3.0
DC portDC5.0*2.1MM interface
Button1* Reset button
antennas2* omnidirectional 5dBi 2.4G antennas, external
2* omnidirectional 5dBi 5.8G antennas, external

4.2 Function of indicator light

SYS LED

1. the red light is on during the start-up process, and the start-up is completed, and the red light is off and the green light is on
2. press mesh to enter mesh pairing state. The green light flashes once a second, and other lights are not on
3. the main equipment network is normal, and the green light and blue light are on simultaneously (blue)
The connection from the device mesh is successful, the distance is far from the green light, the red light is on (Orange), and the distance is suitable for the green light and the blue light is on simultaneously (blue)

4.3 Introduction of hardware platform

ProcessorMT7621A MIPS Dual-Core CPU, 880MHZ Main Frequency
WIFI chipsetMT7905D+MT7975D IEEE 802.11n/g/b/a/ac/ax,High speed up to 1800Mbps
RamDDR3 256MB
FrashNor Flash 16MB
Don’t support NAND Flash

5 Description of power supply and power consumption

Test conditionsminimum valueRated ValueMaximum Value
working voltageT A = 25°C6V12V14V
Absolute working voltageT A = 25°C5.5V 16V
Working currentVIN=12V, T A = 25°C0.6A0.8A1A



FAQ:

1. Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.

2. Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

3. Do you provide firmware customization?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to

4. Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
