Specifications
Brand Name :
OEM
Model Number :
Z6001AX-M.2-H
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
100pcs
Price :
$100
Payment Terms :
T/T, Western Union, MoneyGram, Paypal etc
Supply Ability :
10000pcs per month
Delivery Time :
25-25 days
Packaging Details :

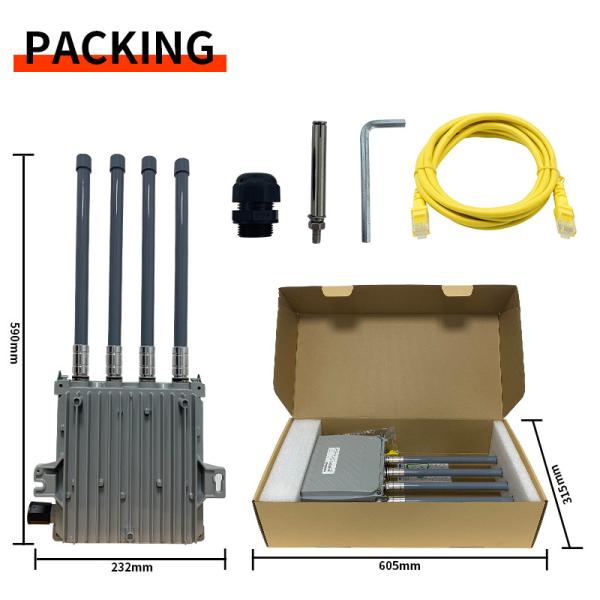

1* LTE Outdoor CPE Wireless Access Point 1800Mbps 4G 5G WiFi 6 Outdoor Router in a gift box
Product name :
LTE Outdoor AX1800 4G/5G Wifi 6 CPE Router
Main Chip :
Qualcomm IPQ6000
Flash :
128MB NAND Flash
RAM :
256MB DDR3
Antenna :
2* 8dBi 2.4Ghz+5G Antennas,2* 8dBi 5.8Ghz+5G Antennas
Wireless Speed :
2.4GHz 600Mbps + 5GHz 1200Mbps
Interface :
1* 10/100/1000Mbps LAN port
System :
OpenWrt/ZBT OS
Buttons :
1* Reset+1* MESH
Wi-Fi Transmission Standard :
WiFi 802.11 ax
Description

LTE Outdoor CPE Wireless Access Point 1800Mbps 4G 5G WiFi 6 Outdoor Router

Product features:

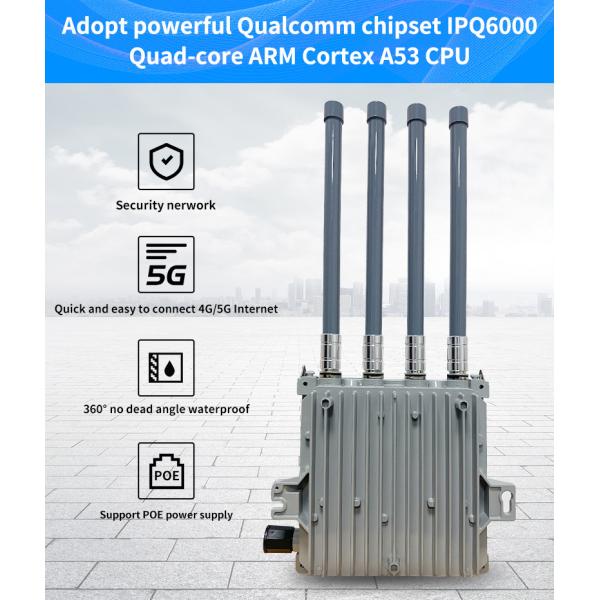

★ Adopt IPQ6000 chip, with Quad-Core ARM Cortex A53s CPU, main frequency up to 1.2 GHz;

★ 2.4Ghz rate up to 573.5mbps, 5.8Ghz rate up to 1201mbps, collectively referred to as 1800 Mbps;

★ Support MU-MIMO, and WiFi modulation mode supports 1024-QAM and OFDMA;

★ Each WiFi channel is independently equipped with high-power FEM(PA);

★ High speed 256MB DDR3 with 128MB NAND flash storage;

★ External LAN port support standard POE-PD function,comply with IEEE802.3AF/AT standard;

★ One built-in PCIE/M.2 interface for connect 4G/5G communication module;

★ Internal standard SIM card interface, supporting SIM / USIM card;

★ IPQ6000 has its own watchdog function, which automatically restarts in case of crash;

★ When multiple products are used at the same time, MESH automatic networking is supported;

★ With fully sealed metal shell to achieve heat dissipation and waterproof functions, meeting IP67 standard;

Main Chip
IPQ6000 Quad-core ARM Cortex A53s CPU, 1.2GHZ main frequency
2.4G WIFI chip
QCN5022 IEEE 802.11ax/n/g/b,up to 573.5Mbps, 2T2R
5.8G WIFI chip
QCN5052 IEEE 802.11ax/ac/a,up to 1201Mbps, 2T2R
RAM
DDR3 256MB (One DDR matches 32bit firmware)
Flash
128MB NAND FLASH
Ethernet Port
1*LAN, 1000Mbps (Support Auto MDI/MDIX), IEEE 802.3/ 802.3u/ 802.ab
Power port
Standard POE
Buttons
1*Reset and 1*MESH
SIM card slot
1*Standard SIM card Slot, Support SIM/USIM
Antennas
2*undetachable 2.4G+5G fiberglass antennas
2*undetachable 5.8G+5G fiberglass antennas
M.2 interface
Built-in PCIE/M.2*1, Support USB3.0 and PCIE Bus, support 5G module
Working Temperature
-20℃ - 60℃
Storage Temperature
-40℃ - 70℃
Working Humidity
10% - 90%RH Non condensing
Storage Humidity
5% - 90%RH Non condensing
Default IP
192.168.1.1
User name/ Password
root/admin
2.4G SSID
WIFI6-XXXXXX (X is the last 6 bits of MAC address), no password by default
5.8G SSID
WIFI6-5G-XXXXXX (X is the last 6 bits of MAC address), no password by default

Wireless Access Point LTE Outdoor CPE 1800Mbps 4G 5G WiFi 6 Outdoor Router

Wireless Access Point LTE Outdoor CPE 1800Mbps 4G 5G WiFi 6 Outdoor RouterWireless Access Point LTE Outdoor CPE 1800Mbps 4G 5G WiFi 6 Outdoor RouterWireless Access Point LTE Outdoor CPE 1800Mbps 4G 5G WiFi 6 Outdoor Router

Welcome to Shenzhen Zhibotong Electronics Co., Ltd.established in 2010, located at Longhua District,Shenzhen,China. ZBT is a manufacturer which is consist of 300 staffs, with a 30-person R & D team, 10,000 Square meters production scale. Professional in R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT wifi router,3G/4G router,Vehicles router,AP,Outdoor CPE and LTE CPE.ZBT is also a Wi-Fi coverage service provider,provides the solution for hotel,school,hospital,enterprise,airport and vehicle field.We have built a long term cooperation with Mediatek,Broadcom and Qualcomm,capably offering good quality products and fast after-sale service to our clients.Till now, ZBT's products have exported to over 30 countries and regions.Our main customers are China Mobile, Vivacom in Bulgaria, Sprint,T-Mobile,AT&T in USA and Smart in Philippine. We also take part in different Communication Fairs,such as MWCA in USA,Gitex in Dubai, Cebit in Germany and Computex in Taipei. Each year, ZBT will take out more than 35% of the annual turnover as R&D funds to develop new products,so as to satisfy clients' new coming requests.Customers' satisfaction is ZBT's continuously pursues. ZBT warmly welcome everybody joining in and build win-win cooperation.
