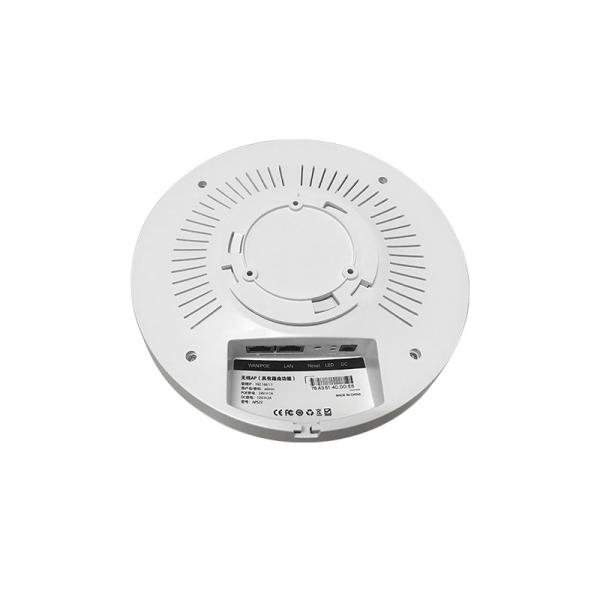

High Power 2.4ghz 5.8ghz 12v Hotel Wireless Router , Ceiling Mounted Wifi Router
High Power 2.4ghz 5.8ghz 12v Hotel Wireless Router , Ceiling Mounted Wifi Router
High Power 2.4ghz 5.8ghz 12v Hotel Wireless Router , Ceiling Mounted Wifi Router
High Power 2.4ghz 5.8ghz 12v Hotel Wireless Router , Ceiling Mounted Wifi Router
Specifications
Brand Name :
OEM
Model Number :
AP922
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 piece
Price :
USD 26.19-USD 30.20
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pieces per month
Delivery Time :
7-30 working days
Packaging Details :
Carton box
LAN ports :
1
Keyword :
ceiling access point
Enclosure :
Plastic
Advantage :
Dual band
Model No. :
AP922
Product name :
3G 4G router
WAN port :
1
Chipset :
QCA9531(550Mhz)+QCA9887+PA chipset
Description

High power 2.4ghz and 5.8ghz 12v openwrt wifi router ceiling wifi access point for hotel

ZBT-AP922 is the latest Qualcomm QCA9531+QCA9887 solution.The latest 802.11n/ac technology.Backward compatible with IEEE802.11b/g/ac standard.Maximum wireless transmission rate up to 733Mbps.Give you the better online experience.Wireless signal theoretical coverage more than 50 meters in an spacious environment.It can be connected 30-40 users.

Hardware
Main Chipset Main chipset: QCA9531(550Mhz)+QCA9887+PA chipset
2.4G Chip set QCA9531
5.8G Chip set QCA9887
RAM DDR3 128MB (MAX DDR2 256MB)
SPI FLASH 16MB (MAX 32MB)
Protocol

IEEE 802.11n.IEEE 802.11g.IEEE 802.11b.

IEEE802.11ac.IEEE802.11a
IEEE 802.3.IEEE 802.3u
RT Power

802.11b 18dBm±2dBm

802.11g 15dBm±2dBm

802.11n 15dBm±2dBmu

802.11a 20dBm±2dBm

802.11ac 20dBm±2dBm
Reception Sensitivity

802.11b ≦-76dBm

802.11g ≦-65dBm

802.11n ≦-61dBm

802.11a ≦-64dBm

802.11ac ≦-59dBm
Work Channel

2.4G:2412 MHz-2484MHz(channel 1 -channel 14).

5.8G: 5725MHZ-5850M(channel:149,153,157,161,165)
Wireless Rate Max 750Mbps(depends on the 11AC mode)
Work Frequency 2.4GHz, 5.8GHz
Antenna Built in 2* Omni Directional 5dBi antenna
Interface 1 *10/100M WAN port(Auto MDI/MDIX)
1 *10/100M LAN port(Auto MDI/MDIX)
LED PWR,WAN,LAN,3 Colors (SYS,2G-WIFI,5G-WIFI)
Button Reset Button
Max Power consumption < 12W
Dimension(L*W*H) (Φ)200mm*(H)74mm
Software
WAN Type PPPoE,Dynamic IP, Static IP
Work Mode AP
DHCP Server, Client, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding
DDNS Support
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Band Ctrl Support
Static Router Support
System Log Support
Other Function Mac clone
NTP Synchronize
Web firmware upgrade
Others
Work Environments

Operating Temperature:0℃ ~ 40℃；
Storage Temperature:-40℃~ 70℃；

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
