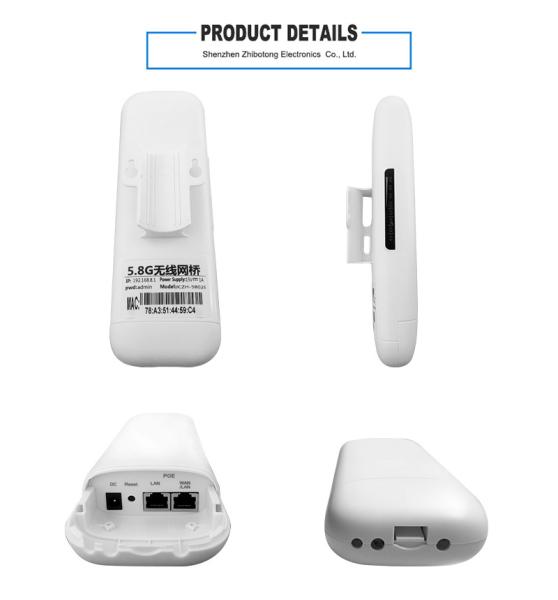

QCA9344 Chipset 5.8 Ghz Outdoor CPE Route Poe Power Supply Bridge Lan Port
QCA9344 Chipset 5.8 Ghz Outdoor CPE Route Poe Power Supply Bridge Lan Port
QCA9344 Chipset 5.8 Ghz Outdoor CPE Route Poe Power Supply Bridge Lan Port
QCA9344 Chipset 5.8 Ghz Outdoor CPE Route Poe Power Supply Bridge Lan Port
Specifications
Brand Name :
OEM
Model Number :
APG621
Certification :
FCC,CE,ROSH
Place of Origin :
China
MOQ :
pieces
Price :
Negotiate with Supplier
Payment Terms :
T/T, Western Union
Supply Ability :
100000pieces/month
Delivery Time :
Sample order:7-10days;batch order 30days
Packaging Details :
paper box
Chipset :
QCA9344
Flash :
8MB
Memory :
64MB flash
Antennas :
5.8Ghz Directional antennas
Description

5.8ghz Antenna Poe Power Supply Wireless Outdoor CPE Router Bridge Lan Port

Product Description

Product Feature

  • Compile with IEEE802.11n/b/g, IEEE802.3/802.3u
  • Wireless TX rate: 802.11b 27dBm±2dBm,802.11g 25dBm±2dBm,802.11n 24dBm±2dBm
  • 2 Ethernet port, support Au MDI/MDIX
  • Support Reset function
  • Wireless rate up to 300Mbps
  • 5.8Ghz, it can effectively avoid 2.4GHz interference, transmission rate is faster, transmission distance is longer
Hardware
Main Chipset QCA9344
RAM DDR2 64MB (MAX DDR2 128MB)
SPI FLASH 8MB (MAX 16MB)
Protocol IEEE 802.11a.IEEE 802.11n.IEE 802.3.802.3u
RT Power

802.11a 24dBm±2dBm.

802.11n 23dBm±2dBm.

802.3 15dBm±2dBm.

802.3u 15dBm±2dBm.
Reception Sensitivity

802.11a: -70dBm@10% PER

802.11n HT20: -65dBm@10% PER

802.11n HT40: -62dBm@10% PER
Work Channel 5GHz choose: 149, 153, 157, 161, 165
Wireless Rate Max 300Mbps
Work Frequency 5.8GHz
Antenna 1*20dbi directional antenna

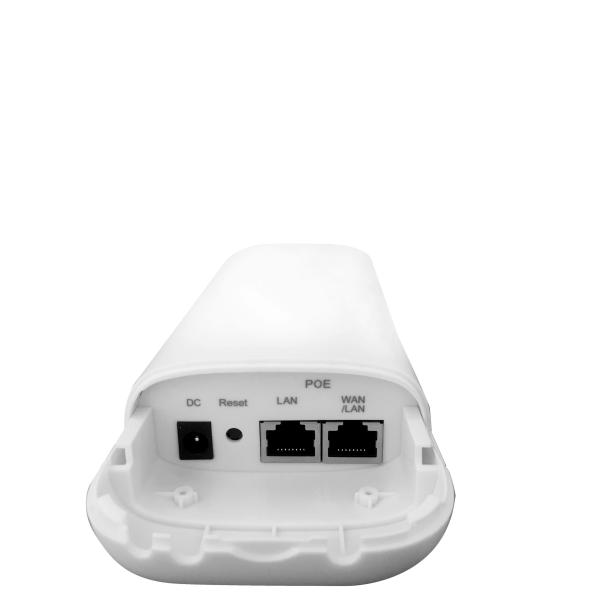

Interface 1*10/100M WAN port(Auto MDI/MDIX)
1*10/100M LAN port(Auto MDI/MDIX)
LED Power,5.8G,WAN,LAN1
Button Reset
Max Power consumption < 12W
Others
Work Environments

Operating Temperature:0℃ ~ 40℃；
Storage Temperature:-40℃~ 70℃；

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing

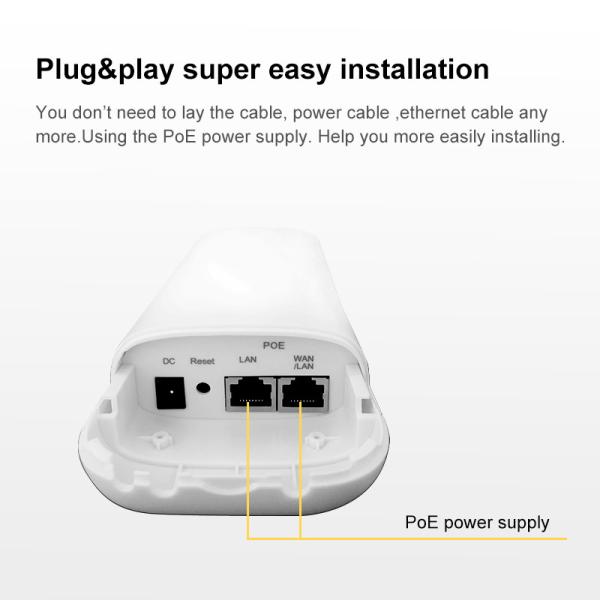

Adapter Nonstandard POE12V~24V/1A
Other accessories

POE Power supply

QCA9344 Chipset 5.8 Ghz Outdoor CPE Route Poe Power Supply Bridge Lan PortQCA9344 Chipset 5.8 Ghz Outdoor CPE Route Poe Power Supply Bridge Lan Port

25dBm 2km wifi range QCA9531 AP openwrt outdoor ​

​
