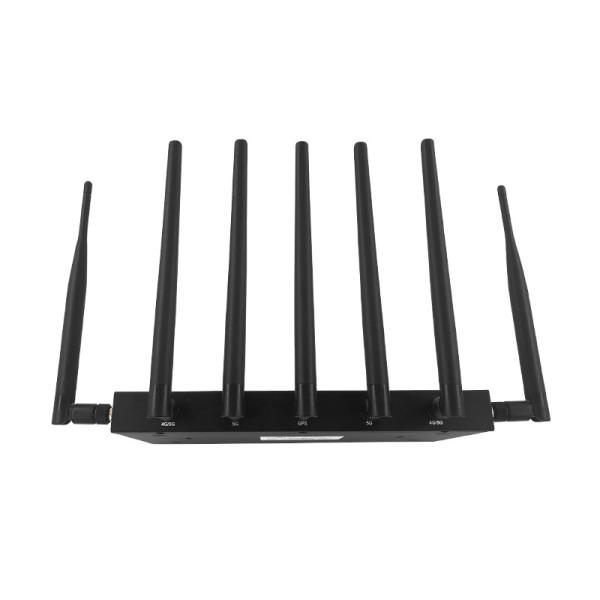

Gigabit 11AC 1200Mbps 5G Wireless Router 6 External Antennas With M.2 Slot
Gigabit 11AC 1200Mbps 5G Wireless Router 6 External Antennas With M.2 Slot
Gigabit 11AC 1200Mbps 5G Wireless Router 6 External Antennas With M.2 Slot
Gigabit 11AC 1200Mbps 5G Wireless Router 6 External Antennas With M.2 Slot
Specifications
Brand Name :
ZBT
Model Number :
WG1608
Certification :
CE.FCC RoHs,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
10000 units per month
Delivery Time :
25-30 days
Packaging Details :
1pcs device/1 packing box; 20pcs device with packing box/carton
Product Name :
gigabit 11AC 1200Mbps 5G Wifi Router with M.2 slot
Network Protocol :
IEEE802.11 n/g/b/a/ac
Interface :
1 Gigabit WAN+4 Gigabit LAN+1USB+1SIM CARD SLOT
Color :
Black
Work Frequency :
2.4GHz, 5.8GHz
Wireless Rate :
1200Mbps
Antennas :
6 external antennas
System :
openWRT
Chipset :
MTK7621, dual core
Flash/RAM :
16MB+256MB (Max. 32MB+512MB)
Network Environment :
3G/4G/5G
Description

gigabit 11AC 1200Mbps 5G Wifi Router with M.2 slot

Product Features

  • Before you order here, please contact me to check band&frequency.
  • MTK7621 chipset, 880MHz main frequency
  • 16MB Flash+256MB RAM (Max. 32MB Flash+512MB RAM)
  • Dual band wireless rate, up to 1200Mbps
  • 5 Gigabit ports, 1 WAN port + 4 LAN ports
  • 1 USB 3.0 port + 1 TF slot +1 SIM slot
  • 1 Mini PCIE slot + 1 M.2 slot, but for 4 module or 5G module, it only support 1 choice
  • Preload OpenWrt sytem

Simply Description

ZBT-WG1608 is used new MTK7621 dual core wireless solution, performs better and more functions. Stable wireless performance, stronger scalability , the Max transmission rate could be 1200Mbps (2.4G 300Mbps, 5G will be867Mbps(Max). Built-in USB3.0 MINI-PCIE interface to install 4G modules to support 2G&3G &4G functions.And also built-in USB3.0 M.2 interface to install 5G module to support 2G&3G&4G&5G function.Because the 4G module interface different from 5G module, so, can only choose one of two to install in side of router.

Product Specificaion

Hardware
Main Chipset MT7621A (880MHz)
2.4G Chip set MT7906EN
5.8G Chip set MT7613AEN
RAM DDR3 256MB (MAX DDR3 512MB)
SPI FLASH 16MB (MAX 32MB)
Protocol IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE802.11ac,IEEE802.11a
IEEE 802.3,IEEE 802.3u
RT Power

11n:16dBm±1dBm

11g: 16dBm±1dBm

11b: 18dBm±1dBm

11a: 18dBm±1dBm

11ac: 17dBm±1dBm
Reception Sensitivity

11N HT20 MCS7: -70dBm

11N HT40 MCS7: -68dBm

11G 54Mbps: -72dBm

11B 11Mbps: -85dBm

11A 54Mbps: -72dBm

11AC VHT20 MCS8: -65dBm
Work Channel

2.4GHz choose :1-13

5GHz choose :149,153,157,161,165
Wireless Rate Max 1200Mbps
Work Frequency 2.4GHz, 5.8GHz
Antenna 2* 5dbi high-gain dual-band antennas; 4* 5dbi high-gain 5G antennas or 2* 5dbi high-gain 4G antennas, depend on the type of optional module.
Interface

Built-in 1* USB3.0, MINI-PCIE and M.2 interface can only choose one.

1 *SIM card slot

1 *USB 3.0 port

1 *Micro TF card slot

1* DC interface

1 *10/100/1000M WAN port(Auto MDI/MDIX)
4 *10/100/1000M LAN port(Auto MDI/MDIX)
4G/5G Support, but 4G module and 5G module can only choose one
LED

Power / 2.4G / 5.8G / 4G or 5G / external network

LAN1 / LAN2 / LAN3 / LAN4 / WAN
Button Reset Button
Max Power consumption < 20W
Dimension(L*W*H) Product size:240MM*136MM*25MM
Software
WAN Type PPPoE.Dynamic IP. Static IP
Work Mode Router;
DHCP Server, Client, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding
DDNS Support
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Band Ctrl Support
Static Router Support
System Log Support
Other Function Mac clone
NTP Synchronize
Web firmware upgrade
Others
Work Environments

Operating Temperature:0℃ ~ 40℃；
Storage Temperature:-40℃~ 70℃；

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
Adapter DC 12V 2A

FAQ

Can you printing Customer logo on products?

Yes, we can printing your logo on products.

Do you provide PCBA board order only?

Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

Can you desin products as per customer's requirements?

Yes, of course. We have our own R&D department, we have ability to design and produce at same time.

Do you....?

Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
