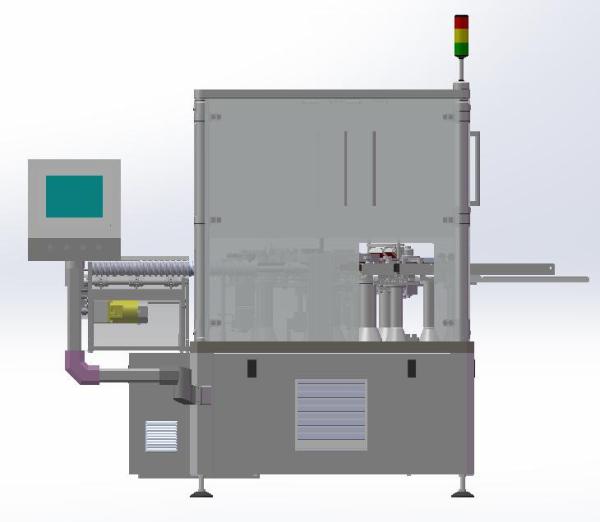

380V 50Hz Syringe Labeling Machine Scope Of Small Round Bottles
380V 50Hz Syringe Labeling Machine Scope Of Small Round Bottles
Specifications
Brand Name :
Z-Zone
Model Number :
TBLZ
Certification :
GMP ISO
Place of Origin :
China
MOQ :
1 sets
Price :
USD 20,000-5,0000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20sets per month
Delivery Time :
60days
Packaging Details :
Wooden packing
Scope :
small round bottles
Labeling speed :
600 bottles/min
Labeling accuracy :
±0.5mm
Electric capacity :
3.7kW
Power supply :
380V, 50Hz
Working height :
960mm
Color :
Grey
Warranty :
2 Years
Provider :
Z-Zone
Weight :
about 280Kg
Description

Syringe Automatic Labeling Machine

Main application

The principal usage of this equipment is for the vertical automated labeling of circular bottles, specifically those containing oral liquids. This machine is equipped with a visual identification system, which facilitates detection of label coding and labeling. Additionally, the system automatically rejects any defective products.

Upon reaching a designated position on the star wheel, the medicine bottle is detected by a photoelectrical sensor, which triggers the label supply servo motor. Consequently, labeling and detection ensue simultaneously. Once the label is supplied, the labeled belt rotates and applies pressure to the medicine bottle. Subsequently, the base of the bottle rotates through the help of a synchronous belt after the labeling process is completed. Three cameras then capture and scrutinize the labeled medicine bottle from diverse angles, facilitating the identification and subsequent rejection of defective products.

Work process

Medicine bottle to be labeled →Separate and infeed bottle screw→ labeling star wheel → photoelectric sensor → out of label (code spraying, label spray code detection) →Press label → labeling detection →Feed out the qualified and the rejected separately

Main technical parameters

Scope of application small round bottles such as oral liquid bottles
Labeling speed 600 bottles/min (full visa is the standard for 10mL Oral liquid)
Labeling accuracy ±0.5mm
Electric capacity 3.7kW
Power supply 380V, 50Hz
Air source 0.6MPa
Working height 960mm
Dimensions (L×W×H): 2285×2150×1800mm
Weight about 800kg
