Automatic Powder Capsule Filling Machine / Capsule Pill Filling Machine
Automatic Powder Capsule Filling Machine / Capsule Pill Filling Machine
Specifications
Brand Name :
Z-Zone
Model Number :
PBDS
Certification :
GMP ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 20,000-5,0000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20sets per month
Delivery Time :
60days
Packaging Details :
Wooden packing
Machine weight :
2400kg
Dimensions :
1130×1280×2060mm
Motor Power :
9.55kw
Power Supply :
Three-phase four-wire AC 380V;50Hz
Maximum production capacity :
3500 capsules/min
Filling dosage :
Powder/Pellet/Tablet/Pill
Working plant height requirement :
Artificial feeding≥2.6m，Vacuum feeding≥2.8m
Humidity :
40～55％
Description

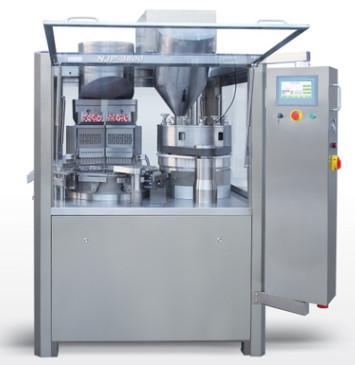

Z-Zone Full-Automatic Capsule Filling Machine

Machine specifications and technical parameters

Equipment model, specification NJP-3500Automatic hard capsule filling machine

Technical

Data

 Machine weight 2400kg
Dimensions 1130×1280×2060mm
Motor Power 9.55kw
Power Supply Three-phase four-wire AC 380V;50Hz
Maximum production capacity 3500 capsules/min
Fillable capsule number 00#～5# and Safety capsule A～E
Capsule probability ≥99.5％
Noise ≤75dBA
Load difference

Above 300mg ≤±3％

(filling of granules from 40 to 80 mesh after granulation)
Compressed air 0.06m3/min 0.3Mpa
Water source requirement The water ring vacuum pump is equipped with a water tank for recycling, and can also be connected to an external water source.
Vacuum degree -0.02～-0.06 MPa
Water flow 250L/h
Inlet pipe inner diameter 20mm
Drain pipe inner diameter 27mm
Working temperature 21℃±3℃
Working plant height requirement Artificial feeding≥2.6m,Vacuum feeding≥2.8m
Working environment relative humidity 40～55％
Exhaust volume 300m3/h
Special function The pellet filling device can be added; the powder collector function (filling part of the powder is recovered by another pipeline, and can be directly added to the hopper filling again without disinfection, sterilization)
Control System Variable frequency stepless speed regulation, PLC control
Material Parts in direct contact with capsules and pharmaceuticals are made of high quality stainless steel

NJP-3500Series Closed Full-Automatic Capsule Filling Machine Outfit

Description Specification/Model NO From Remark

Exactitude intermission

graduator

R140F061202L-S2-CN

R180F101502L-S1-CN

 TAIWAN 1 set for each
main machine R37DT90L4 SEW 1
vacuum pump SZ-1.2 Shang hai china 1
cleaner 3.0KW zhejiang china 1
Man-machine interface 6AV6 648-0AC11-AX0 WEINVIEW 1
transducer VFD037E43A AirTAC 1
PLC DVP-24ES AirTAC 1
light axis DKNΦ20-50 Japan 1
beeline axletree SDE12Y SEIKO 26
beeline axletree SDE20Y SEIKO 10
beeline axletree SDE25Y SEIKO 12
beeline axletree SDE50Y SEIKO 4
Roller CF-8 Japan 10
Roller CF-12 Japan 3
Roller CF-16 Japan 2
Roller CF-20K Japan 2
hot relay 3UA50 siemens, German 3
relay 3TB43 siemens, German 1
relay 3TB41 siemens, German 3
breaker 5SJ63-3P-32A siemens, German 1
breaker 5SJ61-1P-10A siemens, German 1
sensor LJC30A-H-Z/AB2 Shanghai, China 1
