BOE 12.2 Inch TFT LCD Module with 1920x1200 WUXGA Resolution 1000 cd/m² High Brightness and LVDS 45 Pin Interface
BOE 12.2 Inch TFT LCD Module with 1920x1200 WUXGA Resolution 1000 cd/m² High Brightness and LVDS 45 Pin Interface
Specifications
Brand Name :
YZY
Model Number :
YVO1220VRL-L1
Certification :
CE，RoHS
Place of Origin :
China
MOQ :
100 pcs
Price :
$1.99-199.99 Piece
Payment Terms :
T/T
Supply Ability :
Up to 1,000 pcs/day
Description
BOE 12.2 Inch TFT LCD Module 1920x1200 LVDS 45 Pin High Brightness 1000 Nits
Product Overview

This BOE 12.2 inch TFT LCD module features 1920x1200 WUXGA resolution, LVDS interface and normally black display mode. It supports 16.7M colors, 1000 cd/m² typical brightness, 1000:1 typical contrast ratio, 85% NTSC typical color gamut and 89/89/89/89 typical viewing angle performance. With Fine AG surface treatment, 8S6P LED backlight structure and wide operating temperature range, it is suitable for industrial control systems, outdoor-readable terminals, medical equipment, testing instruments and embedded display applications. Customization is available for brightness, interface, touch panel, FPC structure, cover lens and other specifications based on different project requirements.

Key Features
  • BOE 12.2 inch TFT LCD module with 1920x1200 WUXGA resolution
  • LVDS 45 pin interface for industrial display controller systems
  • 1000 cd/m² typical high brightness for outdoor-readable equipment use
  • 85% NTSC typical color gamut for better image and UI display performance
  • Fine AG surface with 25% haze and 3H hardness for industrial applications
  • 89/89/89/89 typical viewing angle for stable visual performance
  • Wide temperature range from -20℃ to +70℃ for demanding environments
  • Customization support for brightness, touch panel, FPC and cover lens design
Technical Specifications
Screen Size 12.2 Inch
Resolution 1920 × 1200

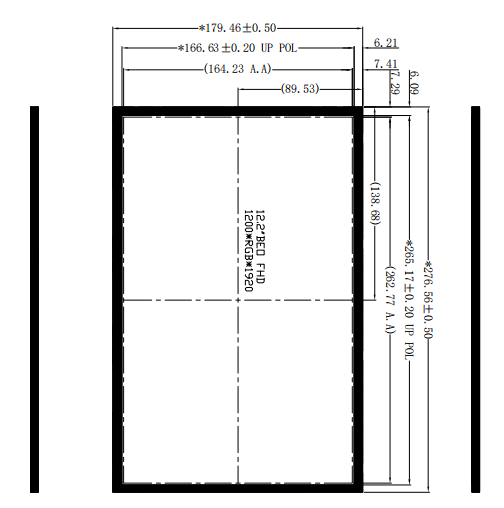

Module Dimensions 276.56 × 179.46 × 5.60 mm
Active Area 262.7712 × 164.232 mm
Brightness 1000 cd/m²
Display Interface LVDS / 45 Pin
Viewing Angle 89/89/89/89 Typ.
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
BOE 12.2 Inch TFT LCD Module with 1920x1200 WUXGA Resolution 1000 cd/m² High Brightness and LVDS 45 Pin Interface
BOE 12.2 Inch TFT LCD Module with 1920x1200 WUXGA Resolution 1000 cd/m² High Brightness and LVDS 45 Pin Interface
Application Scenarios
  • Industrial HMI control panels requiring high brightness WUXGA LCD modules
  • Outdoor-readable or semi-outdoor equipment display terminals
  • Medical equipment screens requiring 12.2 inch high resolution panels
  • Testing instruments and measurement device display interfaces
  • Smart factory monitoring terminals with LVDS controller boards
  • Custom embedded display projects requiring 1000 nits 1920x1200 screens
Company Capabilities
BOE 12.2 Inch TFT LCD Module with 1920x1200 WUXGA Resolution 1000 cd/m² High Brightness and LVDS 45 Pin Interface
BOE 12.2 Inch TFT LCD Module with 1920x1200 WUXGA Resolution 1000 cd/m² High Brightness and LVDS 45 Pin Interface
BOE 12.2 Inch TFT LCD Module with 1920x1200 WUXGA Resolution 1000 cd/m² High Brightness and LVDS 45 Pin Interface
  • Rich Inventory: Over 1 million items in stock including Raspberry Pi boards, LCD displays, touch screens, enclosures, cables and accessories from leading brands
  • Competitive Pricing: Significant price advantages to reduce procurement costs and save valuable time. We wholesale and distribute new, original, branded electronic components globally
  • Quality Assurance: Equipped with international advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality
  • Expert Team: Composed of elite professionals with over 20 years of industry experience and deep understanding of international market trends
Frequently Asked Questions
How is product quality controlled?
Every product undergoes rigorous testing before shipment to ensure reliability and performance.
Do you provide samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically, shipment within 7 working days after payment confirmation.
What is the minimum order quantity?
Minimum order quantity is 1 piece.
What if we receive defective goods?
Please contact us immediately, we will investigate and provide the best solution as soon as possible.
What are your main products?
Comprehensive product line including Raspberry Pi development boards, LCD displays, touch screens, enclosures, cables, accessories, and development boards and accessories from leading brands such as NVIDIA, micro:bit, Arduino, BeagleBone Black.
What payment methods do you accept?
We accept wire transfer (T/T) payments.
What shipping methods do you provide?
We provide shipping services via DHL and China Post.
