1.8 Inch E-paper Display 224×168 Resolution 24pin Low Power Consumption 4-Color E-Ink Screen(Model: YE018A07)



Product Features

◊224×168 pixels display (158 DPI, square pixel 0.161×0.161mm)
◊Black/White/Red/Yellow (B/W/R/Y) 4-color full display capabilities
◊High contrast (typ. 10:1) & high white reflectance (30~35%)
◊Pure reflective mode & ultra wide viewing angle
◊Bi-stable display & ultra low power consumption (≤3μA deep sleep)
◊Hard-coat antiglare surface & commercial temperature range (0~40℃)
◊On-chip display RAM & waveform stored in on-chip OTP
◊3-wire/4-wire SPI interface & I2C temperature sensor interface (internal/external)
◊On-chip booster/regulator (generates VCOM/Gate/Source driving voltages) & ROHS2.0+HF+REACH compliant

The YE018A07 E-PAPER display module is an Active Matrix Electrophoretic Display (AMEPD) with integrated interface and reference system design. It features a 1.8-inch active area with 224×168 square pixels (0.161×0.161mm pixel pitch), supporting Black/White/Red/Yellow 4-color full-display capabilities—ideal for ultra-compact scenarios requiring high-definition color-coded information. The module integrates an SSD2680 driver IC, including gate buffer, source buffer, interface logic, timing controller, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable and efficient performance. With an ultra-thin outline dimension of 45(H)×32(V)×0.9(D)mm (without masking film) and lightweight design, it enables easy integration into tiny electronic devices like mini electronic shelf labels, smart wearables, and portable data terminals. The hard-coat antiglare surface and pure reflective mode ensure clear readability even under strong light, while low-power features meet long-term battery-powered application needs.
Type E-Paper Screen refreshing method Full Refresh
Resolution 224×168 (158 DPI) Place Of Origin
Shenzhen, China
Brand Name Yingzhanying Technology Outline Dimensions
45(H)×32(V)×0.9(D) mm
Supplier Type All (IPS) Active Area
27.05(H)×36.06(V) mm
Interface 3-wire/4-wire SPI Driver IC SSD2680
MOQ 5PCS Operating Temp.
0~40℃
Connector Type
24 pin (0.5mm ZIF Socket)
 Storage Temp. -20~60°C
Colors Black/White/Red/Yellow
Product Picture

1.8 Inch E-paper Display 224×168 Resolution 24pin Low Power Consumption 4-Color E-Ink Screen

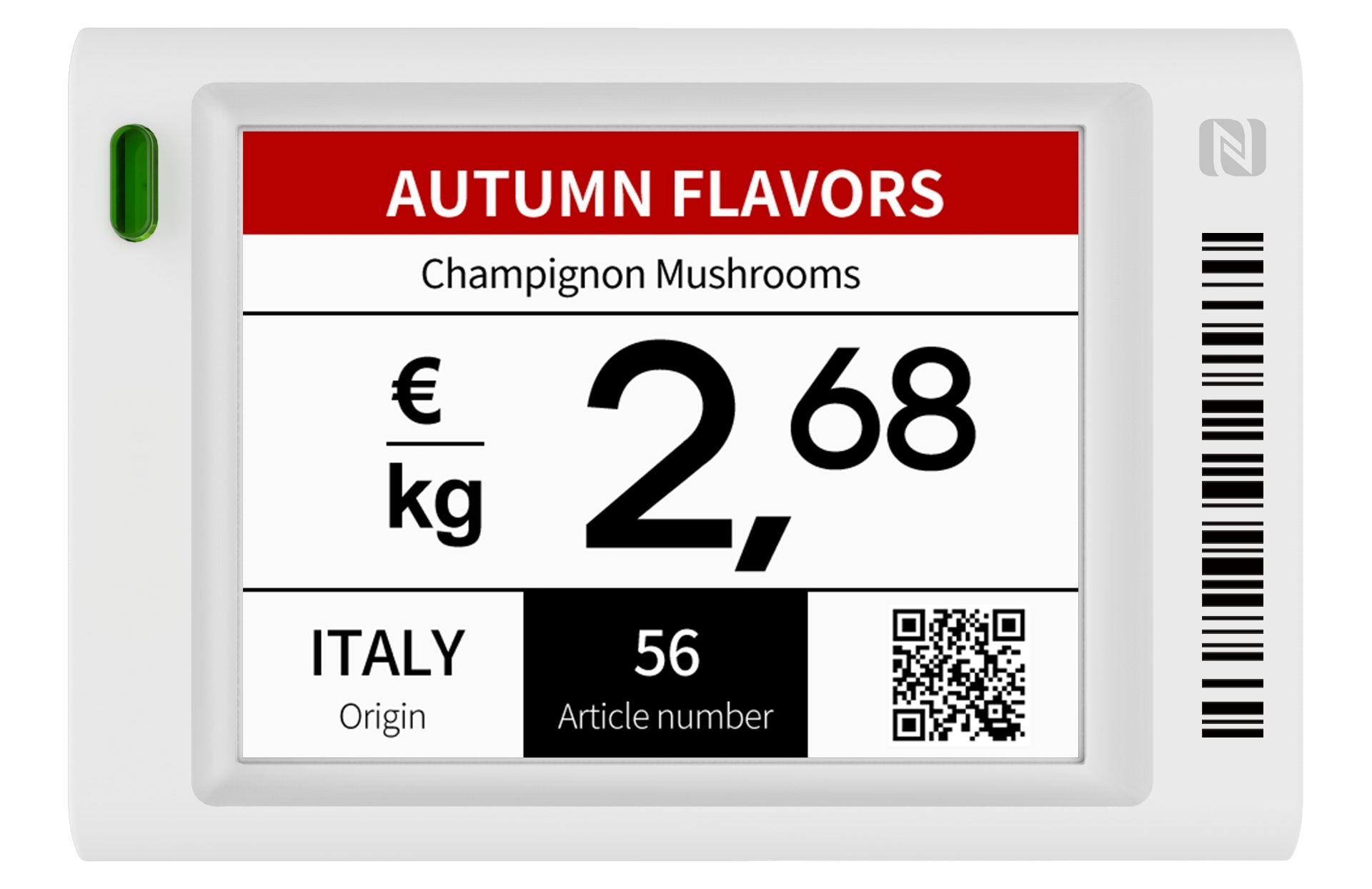

The YE018A07 E-PAPER display module excels in ultra-compact high-definition scenarios with its 4-color display and 158 DPI resolution. As shown in the images, it can vividly present color-coded information—red for promotions, yellow for warnings, black for product names, and white for background—making it ideal for mini electronic shelf labels, smart wearables, and portable terminals. Its square pixels (0.161×0.161mm) and high resolution ensure sharp text and graphics, even small fonts (6pt) remain legible. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining readability in retail stores, logistics warehouses, or outdoor kiosks. With an ultra-thin (0.9mm) and lightweight design, it fits seamlessly into space-constrained devices like smart nameplates and handheld scanners, while low power consumption (≤3μA deep sleep) ensures long battery life without frequent replacements.
The YE018A07 E-PAPER display module has a wide range of applications across multiple industries. In retail, it serves as micro electronic shelf labels for small-sized products (e.g., cosmetics, stationery), using 4-color display to highlight promotional items (red), limited-stock alerts (yellow), new arrivals (white background with black text), and regular goods (black text on white)—enabling customers to quickly identify key information. Its low power consumption (≤3μA deep sleep) eliminates frequent battery replacements, reducing retail maintenance costs. In logistics and warehousing, it functions as tiny cargo tags, displaying waybills, destination details, and inventory statuses with color-coded alerts (e.g., red for urgent shipments, yellow for fragile goods), while withstanding transportation temperatures of -25~60℃ for up to 10 days. In smart wearables and portable devices, its ultra-compact size and weight fit into fitness trackers, smart badges, and handheld terminals, serving as a low-power information display—showing steps, heart rate, or device statuses. Additionally, in industrial control, it works as small equipment status monitors, using color coding to indicate normal (white), warning (yellow), fault (black), and urgent (red) states—supporting landscape/portrait modes to adapt to different device layouts. With ROHS2.0+HF+REACH compliance and rigorous reliability testing, it meets environmental and long-term use requirements in diverse scenarios.



Core Advantages

1.8 Inch E-paper Display 224×168 Resolution 24pin Low Power Consumption 4-Color E-Ink Screen

◊ High-Definition 4-Color Display: Rich Details, Clear Classification

The YE018A07 supports Black/White/Red/Yellow 4-color full-display, with precise color performance: red state L*=25~28 (a*=38~40 typ.), yellow state L*=55~62 (b*=63~68 typ.), white state L*=63~65, and black state L*=9~14. Its 158 DPI high resolution and square pixels (0.161×0.161mm) deliver sharp text and fine graphics—ideal for displaying small fonts, barcodes, or detailed icons. The high white reflectance (30~35%) and contrast ratio (typ. 10:1) ensure clear visibility even in low-light environments, while the pure reflective mode eliminates backlight power consumption. The hard-coat antiglare surface reduces glare under direct sunlight, maintaining readability in outdoor or bright indoor scenarios (e.g., retail store windows, outdoor kiosks). With an ultra-wide viewing angle, there is no color/brightness deviation from any direction, supporting multi-person viewing for scenarios like shared equipment monitors.

◊ Ultra-low Power Consumption: Long Battery Life, Stable Performance

Based on bi-stable display technology, the module only consumes power during screen refresh—panel power consumption is 90 mAs (max. at 25℃), while deep sleep mode current is ≤3μA. When paired with a standard lithium battery, electronic shelf labels refreshed once daily can operate for over 12 months without replacement. The integrated on-chip booster generates VCOM, Gate (VGH/VGL), and Source (VDHR/VSH/VSL) driving voltages internally, reducing external circuit complexity and optimizing power efficiency. It also supports low-voltage detection (LVD) to monitor battery status (VDD: 2.4~3.6V) and high-voltage ready detection to prevent abnormal operation due to insufficient driving voltages, ensuring stable performance in power-fluctuating environments. The internal/external temperature sensor (I2C interface) enables real-time temperature monitoring and waveform adjustment, maintaining display stability under temperature fluctuations (0~40℃).

◊ Ultra-Compact & Durable: Easy Integration, Wide Adaptability

The YE018A07 features an ultra-compact outline dimension (45×32×0.9mm) and lightweight design, enabling seamless integration into space-constrained devices like smart wearables and mini electronic shelf labels. It has passed rigorous reliability tests, including 240-hour high-temperature (40℃) and low-temperature (0℃) operation, 100 temperature cycles (-25℃~60℃), 168-hour high-temperature high-humidity (40℃, 90%RH) operation, and ESD testing (contact ±200V/air ±8KV)—ensuring no functional failures or appearance defects. The hard-coat screen is scratch-resistant and fingerprint-resistant, while ROHS2.0+HF+REACH compliance meets global environmental standards. With a designed service life of 3 years (under normal use: 25℃/50%RH, updated once daily), it meets long-term use requirements in industrial, retail, and logistics fields. The flexible FPC with bending area (as per mechanical drawing) simplifies installation in devices with non-flat layouts.

◊ Flexible Interface & Easy Integration: Multiple Options, Low Development Cost

The module supports 3-wire/4-wire SPI interfaces (selectable via the BS pin) and I2C for internal/external temperature sensors, compatible with most microcontrollers, PLCs, and embedded systems—no complex driver development required. The SSD2680 driver IC offers stable signal processing, while the 24-pin 0.5mm ZIF Socket and easy-to-tear sticker design ensure secure and convenient installation. For customers not using external temperature sensors, pins 6 (TSCL) and 7 (TSDA) can be grounded (per Note 6-6), simplifying circuit design. Additionally, it offers customizations like FPC length, cover glass processing, and waveform parameters to meet specific application needs—such as adjusting VCOM voltage (OTP-programmed) for optimized contrast in different scenarios, or customizing FPC bending areas for non-flat device layouts.

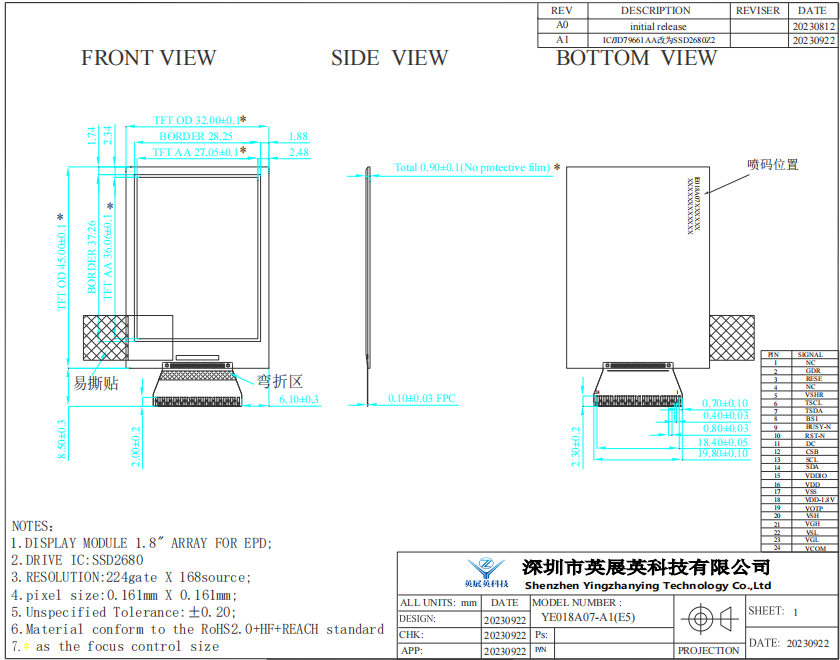

Technical Drawing

1.8 Inch E-paper Display 224×168 Resolution 24pin Low Power Consumption 4-Color E-Ink Screen

PIN Definition
PIN Symbol Description Remark
1 NC No connection and do not connect with other NC pins Keep Open
2 GDR N-Channel MOSFET Gate Drive Control
3 RESE Current Sense Input for the Control Loop
4 NC No connection and do not connect with other NC pins Keep Open
5 VDHR Positive Source driving voltage
6 TSCL I2C Interface to digital temperature sensor Clock pin Note 6-6
7 TSDA I2C Interface to digital temperature sensor Date pin Note 6-6
8 BS Bus selection pin Note 6-5
9 BUSY_N Busy state output pin Note 6-4
10 RST_N Reset Note 6-3
11 DC Data/Command control pin Note 6-2
12 CSB Chip Select input pin Note 6-1
13 SCL serial clock pin (SPI)
14 SDA serial data pin (SPI)
15 VDDIO Power for interface logic pins
16 VDD Power Supply pin for the chip
17 GND Ground
18 VDDD Core logic power pin
19 VPP Power Supply for OTP Programming
20 VSH Positive source driver Voltage
21 VGH Positive Gate driving voltage
22 VSL Negative Source driving voltage
23 VGL Negative Gate voltage
24 VCOM VCOM driving voltage


Customization Options

The YE018A07 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
