8.0 inch TFT-LCD display 800*1280 resolution optional touch MIPI Interface
800×1280 ResolutionMIPI Interface250 Cd/m² Luminance-10℃ ~ +60℃ Operating TempAll-Direction Viewing Angle
Product Features
The YVO080HDM-H01 is an 8.0-inch high-performance color active matrix TFT-LCD module developed . It uses amorphous silicon TFT as a switching device, integrating a TFT LCD panel, driving circuit, and backlight system. With a resolution of 800×1280 pixels and support for up to 16.7M colors, it delivers clear and vivid visual output. Adopting a normally black display mode and all-direction viewing angle design, it ensures consistent color and brightness from any perspective, suitable for multi-scenario viewing. Equipped with a MIPI interface, it enables high-speed serial data transmission (4 data lanes) with stable signal and space-saving advantages, meeting the needs of smart terminals, industrial control, and portable display devices. The module uses a white LED backlight (20×7 parallel-series design, total current 140mA), achieving a typical luminance of 250 Cd/m² and luminance uniformity of 80% (min/max×100), ensuring good visibility in indoor environments. It complies with relevant environmental standards, and the backlight has a long service life of 50000 hours (under IF=20mA), ensuring long-term stable operation. With an operating temperature range of -10℃ ~ +60℃ and storage temperature range of -20℃ ~ +70℃, it can adapt to common harsh working and storage conditions..
Product 8.0 inch TFT-LCD Module Module Number YVO080HDM-H01
Resolution 800×1280 pixels Display Mode Normally Black
Brightness 250 Cd/m² (Typ.) Outline Dimensions (W×H×D)
114.6(W)×184.1(H)×2.5(D)mm
Viewing Direction All Active Area (H×V)
107.64(H)×172.224(V)mm
Interface MIPI Interface (4 data lanes) Storage Temp. -20 ~ +70 °C
Backlight
White LED (20×7 parallel-series, IF=140mA Typ.)
 Operating Temp. -10 ~ +60 °C
Highlight 8.0-inch TFT-LCD, 800×1280 resolution, MIPI interface, long backlight life

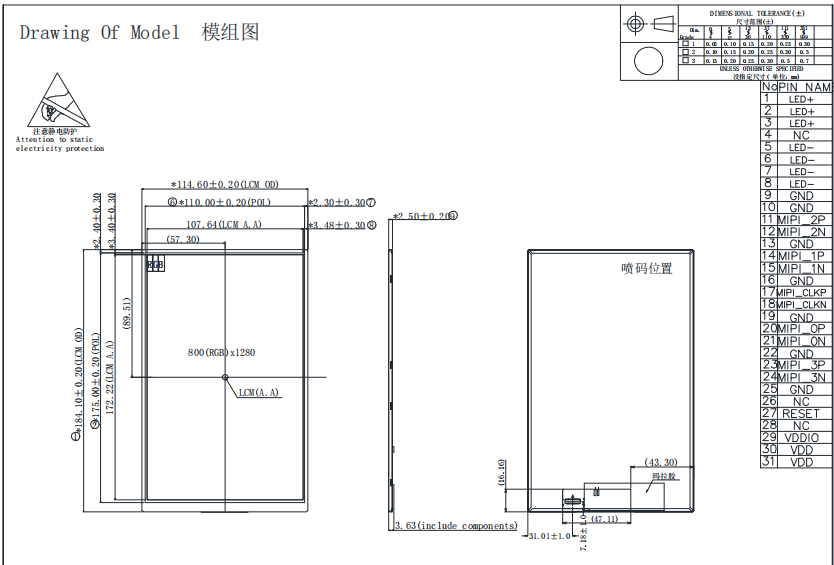

Technical Drawing
The YVO080HDM-H01 LCD module ensures reliable electrical performance. For power supply, the main power voltage (VDD) ranges from 2.8V to 3.6V (Typ. 3.3V), and the I/O power voltage (VDDIO) is 1.75V to 3.3V (Typ. 1.8V); absolute maximum ratings must not be exceeded to avoid permanent damage to components. The power-on sequence requires strict compliance: VDDIN → AVDD/VDDR/VDDB → AVEE → RESX (reset signal, 1.8V, recommended H→L→H pulse for stability) → MIPI signal (LP-11 state) → LEDON, with signal cross points based on 50% of power level; the power-off sequence follows the reverse order to prevent latch-up. In terms of MIPI interface timing, the high-speed (HS) mode clock transmission has clear specifications: TCLK-POST (clock maintenance after data lane LP mode) ≥60+52×UI ns, TCLK-PRE (clock pre-drive before data lane HS mode) ≥8×UI ns, TCLK-PREPARE (clock lane LP-00 state duration) 38-95 ns, ensuring synchronized data and clock signals for stable high-speed transmission.
For the backlight unit (Ta=25℃, VSS=0V), the forward voltage (VF) ranges from 9.0V to 10.8V (Typ. 9.6V) at IF=140mA, reverse current (IR) ≤10μA at VR=5V per LED, and power dissipation (PD) is typically 1512mW. The LCM luminance (IV) is 220-250 Cd/m², and luminance uniformity is 75-80% (IF=20mA), ensuring consistent backlight brightness. In terms of display timing, the horizontal clock frequency (Fclk) is typically 67.3MHz, horizontal display period (Thdisp) is 800 DCLK, horizontal back porch (Thbp) 5-18 DCLK, horizontal front porch (Thfp) 5-18 DCLK; vertical display period (Tvdisp) is 1280 H, vertical back porch (Tvbp) 2-10 H, vertical front porch (Tvfp) 4-20 H, ensuring stable image output without flicker. The module's mechanical dimensions have strict tolerances: outline dimension (114.6×184.1×2.5mm) with ±0.2mm tolerance for key sizes (marked with "*"), and POL (polarizer) dimension 110.00±0.20mm (horizontal) and 175.00±0.20mm (vertical), ensuring compatibility with device casing assembly.

8.0 Inch TFT LCD Display 800*1280 Resolution Optional Touch MIPI Interface Display

PIN Definition
PIN Symbol Description
1 LED+ LED Anode
2 LED+ LED Anode
3 LED+ LED Anode
4 NC Not connection
5 LED- LED Cathode
6 LED- LED Cathode
7 LED- LED Cathode
8 LED- LED Cathode
9 GND Ground
10 GND Ground
11 MIPI_D2P DSI Data differential signal input pins. (Data lane2)
12 MIPI_D2N DSI Data differential signal input pins. (Data lane2)
13 GND Ground
14 MIPI_D1P DSI Data differential signal input pins. (Data lane1)
15 MIPI_D1N DSI Data differential signal input pins. (Data lane1)
16 GND Ground
17 MIPI-CLK P DSI CLOCK differential signal input pins
18 MIPI-CLK N DSI CLOCK differential signal input pins
19 GND Ground
20 MIPI_D0P DSI Data differential signal input pins. (Data lane0)
21 MIPI_D0N DSI Data differential signal input pins. (Data lane0)
22 GND Ground
23 MIPI_D3P DSI Data differential signal input pins. (Data lane3)
24 MIPI_D3N DSI Data differential signal input pins. (Data lane3)
25 GND Ground
26 NC Not connection
27 RSTB Global reset pin(1.8V)
28 NC Not connection
29 VDD1O Power supply (1.8V)
30 VDD Power supply (3.3V)
31 VDD Power supply (3.3V)
Product Application Scenario

The YVO080HDM-H01 8-inch LCD module, with its 800×1280 resolution, MIPI interface, and 250 Cd/m² brightness, serves as an ideal display solution in industrial control panels. Mounted on factory floor monitoring stations, it delivers clear real-time visualization of critical parameters like machinery temperature, pressure readings, and electrical load metrics. Its wide operating temperature range (-10℃ ~ +60℃) ensures reliable performance in harsh manufacturing environments, while the optional touch function allows operators to quickly switch between different equipment monitoring screens or adjust display settings. The high-contrast display ensures readability even under varying factory lighting conditions, making it a robust choice for industrial automation systems requiring continuous visual oversight of production processes.

Customization Options

The YVO080HDM-H01 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Brightness: Adjustable from 200–1000 nits for indoor or outdoor use.

Touch Options: With or without capacitive touch, customized driver IC available.
