2.13 Inch E Ink Display 122×250 Resolution 24pin 2 Color Black White E Ink Screen
2.13 Inch E Ink Display 122×250 Resolution 24pin 2 Color Black White E Ink Screen
2.13 Inch E Ink Display 122×250 Resolution 24pin 2 Color Black White E Ink Screen
2.13 Inch E Ink Display 122×250 Resolution 24pin 2 Color Black White E Ink Screen
Specifications
Brand Name :
YZY
Model Number :
YE0213A367
Certification :
RoHS/CE/CB
Place of Origin :
Guangdong, China
MOQ :
600
Price :
2.21-4.71/pc
Payment Terms :
,T/T,D/P,D/A,Western Union
Supply Ability :
300k/month
Delivery Time :
14-30days
Packaging Details :
50 pcs/box
Description
2.13 Inch E-paper Display 122×250 Resolution 24pin 2-Color (Black/White) E-Ink Screen(Model: YE0213A367)
Product Features
◊122×250 pixels display (130 DPI, pixel pitch 0.194×0.194mm)
◊Black/White (B/W) 2-color full display capabilities
◊High contrast & high reflectance (white L*≥66, black L*≤30)
◊Pure reflective mode & ultra wide viewing angle
◊Ultra-low power consumption (≤3μA deep sleep, 70mAs typ update power)
◊Bi-stable display & commercial temperature range (0~50℃)
◊Hard-coat antiglare surface & on-chip display RAM
◊3-wire/4-wire SPI + I2C temperature sensor interface (internal/external)
◊On-chip booster/regulator & ROHS2.0+HF+REACH compliant
The YE0213A367 is an Active Matrix Electrophoretic Display (AMEPD) optimized for small-size monochrome display scenarios. It features a 2.13-inch active area (23.7×48.55mm) with 122×250 pixels (0.194×0.194mm pitch, 130 DPI), supporting Black/White 2-color display—ideal for electronic shelf labels and compact information terminals. The module integrates a SSD1682 driver IC, including gate buffer, source buffer, timing control, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable performance. With an ultra-thin outline (29.2×59.2×0.9mm without masking film) and lightweight design (3±0.5g), it fits seamlessly into devices like electronic shelf labels, portable terminals, and smart wearables. The hard-coat antiglare surface and pure reflective mode eliminate glare under strong light, while bi-stable technology ensures ultra-low power consumption—only drawing current during screen updates.
Type E-Paper Screen Refresh Method Full Refresh
Resolution 122×250 (130 DPI) Place of Origin Shenzhen, China
Brand Name Yingzhanying Technology Outline Dimensions 29.2(H)×59.2(V)×0.9(D) mm
Supplier Type All (IPS) Active Area 23.7(H)×48.55(V) mm
Interface 3-wire/4-wire SPI (BS pin selectable), I2C (temp sensor) Driver IC SSD1682
MOQ 5PCS Operating Temperature 0~50℃
Connector Type 24-pin 0.5mm ZIF Socket Storage Temperature -25~60℃
Colors Black/White
Power Consumption Update: Typ 70mAs (25℃); Deep Sleep: ≤3μA

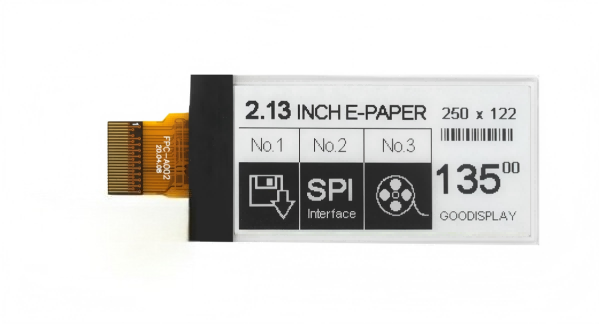

Product Picture2.13 Inch E Ink Display 122×250 Resolution 24pin 2 Color Black White E Ink Screen
The YE029A241 excels in small-size monochrome display scenarios with its 130 DPI display and 2-color capability. It clearly presents text, barcodes, and simple graphics—black for key information and white for background—making it perfect for electronic shelf labels, smart wearables, and portable terminals. Its pixel pitch (0.194×0.194mm) ensures sharp text, even small fonts remain legible. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining readability in retail stores or outdoor kiosks. With an ultra-thin (0.9mm) and lightweight (3±0.5g) design, it fits into space-constrained devices like smart labels, while ultra-low power consumption (≤3μA deep sleep) enables over 12 months of battery life for daily-updated applications.
The YE0213A367 is mainly designed for Electronic Shelf Label (ESL) systems, with diverse industry applications. In retail, it serves as compact electronic shelf labels for groceries, electronics, and more, using 2-color display to show product names, prices, and stock status—enhancing customer information access and reducing manual update costs. In logistics, it functions as mini cargo tags, displaying waybills and statuses, withstanding -25~60℃ transportation for 10 days. In smart wearables, its compact size fits into fitness trackers or smart badges, showing steps, heart rate, or alert notifications. With ROHS2.0+HF+REACH compliance and rigorous reliability testing (high/low temperature, humidity, vibration, ESD), it meets global environmental and reliability demands.
Core Advantages

◊ 2-Color High-Contrast Display: Clear Presentation, Energy Saving

The YE0213A367 features 122×250 resolution (130 DPI) with 0.194×0.194mm pixels, delivering sharp text, barcodes, and 2-color graphics. Its color performance is excellent: white state L*≥66 and black state L*≤30. The high contrast ratio (white reflectance divided by dark reflectance) ensures clear visibility in low light. The pure reflective mode saves power by eliminating backlighting, while the hard-coat antiglare surface reduces glare under direct sunlight. With an ultra-wide viewing angle, there’s no color deviation from any direction, supporting multi-person viewing for shared devices.

◊ Ultra-Low Power & Long Lifespan: Cost-Effective Operation

Powered by bi-stable technology, the module only consumes power during updates (typ 70mAs at 25℃) and draws ≤3μA in deep sleep. A standard lithium battery can power daily-updated devices for over 12 months, reducing replacement frequency. It has a 5-year design life (25℃/60%RH, daily updates) and passed rigorous reliability tests: 240-hour high/low-temperature operation (40℃/0℃), 168-hour high-humidity operation (40℃, 90%RH), ESD testing (±250V, 0Ω, 200pF), and UV exposure resistance (765 W/㎡ for 168hrs).

◊ Compact Design & Easy Integration: Wide Application Adaptability

With an outline of 29.2×59.2×0.9mm and weight of 3±0.5g, the YE0213A367 fits into small-size devices like electronic shelf labels and portable terminals. The flexible FPC simplifies installation in non-flat layouts. It supports 3-wire/4-wire SPI (selectable via BS pin) and I2C for temperature sensors, compatible with most MCUs and embedded systems—no complex drivers needed. Pins 6 and 7 on FPC are grounded, simplifying circuit design.

◊ Environmental Compliance & Reliable Quality: Global Market Adaptation

The module complies with ROHS2.0+HF+REACH standards, meeting global environmental requirements. It features a hard-coat antiglare surface that resists scratches and fingerprints, protecting the display from daily wear. The 12+1 months warranty (1 month delivery time included) provides peace of mind for bulk purchases. Strict shipment inspection ensures defect-free delivery: spot defects 0.25~0.4mm (N≤4) in active area, no display malfunctions or errors, and scratch defects ≤5mm (W≤0.3mm, N≤2).

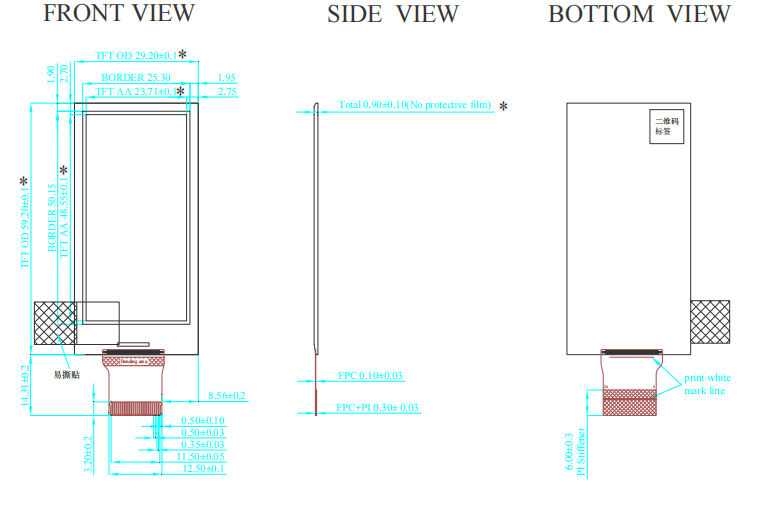

Technical Drawing
2.13 Inch E Ink Display 122×250 Resolution 24pin 2 Color Black White E Ink Screen
PIN Definition
PIN Symbol Description Remark
1 NC No connection and do not connect with other NC pins Keep Open
2 GDR N-MOS gate control
3 RESE Current sense input for control loop
4 NC No connection and do not connect with other NC pins Keep Open
5 VSH2 Positive source voltage for Red
6 GND Ground pin Pre-connected to ground
7 GND Ground pin Pre-connected to ground
8 BS Bus selection pin Low=4-wire SPI, High=3-wire SPI (9 bits)
9 BUSY_N Busy state output pin High=IC working, no command allowed
10 RST_N Global reset pin Active low
11 DC Command/Data control pin High=Data, Low=Command
12 CSB Chip Select input pin Low=IC enabled for MCU communication
13 SCL Serial communication clock input
14 SDA Serial communication data input
15 VDDIO IO voltage supply
16 VCC Digital/Analog power 2.4~3.6V
17 VSS Digital ground
18 VDD 1.5V voltage input & output
19 VPP OTP program power 10V
20 VSH1 Positive source voltage
21 VGH Positive gate voltage
22 VSL Negative source voltage
23 VGL Negative gate voltage
24 VCOM VCOM driving voltage OTP programmed in factory

Customization Options

The YE0213A367 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Monochrome color options available for customization, including black-white, black-gray, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
