2.7 Inch E-paper Display 176×264 Resolution 24pin Ultra-Low Power 3-Color E-Ink Screen(Model: YE027A41)
Product Features
◊176×264 pixels display (117 DPI, pixel pitch 0.217×0.217mm)
◊Black/White/Red (B/W/R) 3-color full display capabilities
◊High contrast & high white reflectance (white L*≥64, red L*=25~26.5)
◊Pure reflective mode & ultra wide viewing angle
◊Ultra-low power consumption (≤3μA deep sleep, 80mAs max update power)
◊Bi-stable display & commercial temperature range (0~40℃)
◊Hard-coat antiglare surface & on-chip display RAM
◊3-wire/4-wire SPI + I2C temperature sensor interface (internal/external)
◊On-chip booster/regulator & ROHS2.0+REACH compliant
The YE027A41 is an Active Matrix Electrophoretic Display (AMEPD) optimized for medium-size color-coded scenarios. It features a 2.7-inch active area (38.19×57.29mm) with 176×264 pixels (0.217mm pitch, 117 DPI), supporting Black/White/Red 3-color display—ideal for clear information classification in electronic shelf labels. The module integrates a SSD1680 driver IC, including gate buffer, source buffer, timing control, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable performance. With an ultra-thin outline (45.8×70.42×0.90mm) and lightweight design (5.0±0.2g), it fits seamlessly into devices like electronic shelf labels, smart wearables, and portable terminals. The hard-coat antiglare surface and pure reflective mode eliminate glare under strong light, while bi-stable technology ensures ultra-low power consumption—only drawing current during screen updates.
Type E-Paper Screen Refresh Method Full Refresh
Resolution 176×264 (117 DPI) Place of Origin Shenzhen, China
Brand Name Yingzhanying Outline Dimensions 45.8(H)×70.42(V)×0.90(D) mm
Supplier Type All (IPS) Active Area 38.19(H)×57.29(V) mm
Interface 3-wire/4-wire SPI (BS pin selectable), I2C (temp sensor) Driver IC SSD1680
MOQ 5PCS Operating Temperature 0~40℃
Connector Type 24-pin 0.5mm ZIF Socket Storage Temperature -25~60℃
Colors Black/White/Red
Power Consumption Update: ≤80mAs (25℃); Deep Sleep: ≤3μA

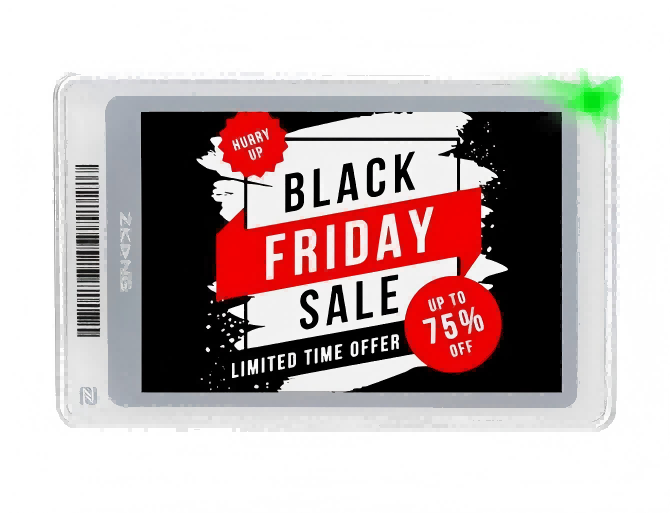

Product Picture2.7 Inch Electronic Paper Display 176×264 Resolution 24pin Low Power E Ink Display
The YE027A41 excels in medium-size color-coded scenarios with its 117 DPI display and 3-color capability. It vividly presents classified information—red for promotions/urgent alerts, black for text, and white for background—making it perfect for electronic shelf labels, smart wearables, and portable terminals. Its pixel pitch (0.217×0.217mm) ensures sharp text and barcodes, even small fonts remain legible. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining readability in retail stores or outdoor kiosks. With an ultra-thin (0.90mm) and lightweight (5.0g) design, it fits into space-constrained devices like smart labels, while ultra-low power consumption (≤3μA deep sleep) enables over 12 months of battery life for daily-updated applications.
The YE027A41 has diverse industry applications. In retail, it serves as standard electronic shelf labels for groceries, electronics, and more, using 3-color display to highlight promotions (red), product names/prices (black), and stock status (white background)—enhancing customer information access. Its low power consumption reduces retail maintenance costs. In logistics, it functions as cargo tags, displaying waybills and statuses with red for urgent shipments, withstanding -25~60℃ transportation for 10 days. In smart wearables, its compact size fits into fitness trackers or smart badges, showing steps, heart rate, or alert notifications. In industrial control, it acts as status monitors, indicating normal (white), fault (black), and urgent (red) states. With ROHS2.0+REACH compliance and rigorous reliability testing, it meets global environmental and reliability demands.
Core Advantages
2.7 Inch Electronic Paper Display 176×264 Resolution 24pin Low Power E Ink Display

◊ 3-Color High-Contrast Display: Clear Classification, Wide Adaptability

The YE027A41 features 176×264 resolution (117 DPI) with 0.217mm pixels, delivering sharp text, barcodes, and 3-color graphics—ideal for information classification. Its color performance is precise: red state L*=25~26.5 (a*=38~40), white state L*=64~65, and black state L*=11~14. The high reflectance and contrast ratio (white reflectance divided by dark reflectance) ensure clear visibility in low light. The pure reflective mode saves power by eliminating backlighting, while the hard-coat antiglare surface reduces glare under direct sunlight. With an ultra-wide viewing angle, there’s no color deviation from any direction, supporting multi-person viewing for shared devices.

◊ Ultra-Low Power: Long Battery Life, Energy Efficiency

Powered by bi-stable technology, the module only consumes power during updates (max 80mAs at 25℃) and draws ≤3μA in deep sleep. A standard lithium battery can power daily-updated devices for over 12 months, reducing replacement frequency. The on-chip booster generates VCOM, Gate (VGH/VGL), and Source (VSH1/VSH2/VSL) voltages internally, simplifying external circuits and optimizing efficiency. Low-voltage detection (VCC: 2.4~3.6V) monitors battery status, while high-voltage ready detection prevents abnormal operation. The internal/external temperature sensor (I2C) enables real-time waveform adjustment, ensuring stability in 0~40℃ environments.

◊ Thin & Durable: Easy Integration, Long Service Life

With an outline of 45.8×70.42×0.90mm and weight of 5.0±0.2g, the YE027A41 fits into medium-size devices like electronic shelf labels and portable terminals. It passed rigorous reliability tests: 240-hour high/low-temperature operation (40℃/0℃), 50 temperature cycles (-25℃~60℃), 168-hour high-humidity operation (40℃, 90%RH), and ESD testing (contact ±2KV/air ±8KV). The hard-coat screen resists scratches and fingerprints, while ROHS2.0+REACH compliance meets global standards. Its 5-year design life (25℃/60%RH, daily updates) ensures long-term use. The flexible FPC with PI stiffener simplifies installation in non-flat layouts.

◊ Flexible Interface & Easy Integration: Low Development Cost

The module supports 3-wire/4-wire SPI (selectable via BS pin) and I2C for temperature sensors, compatible with most MCUs and embedded systems—no complex drivers needed. Pins 6 (TSCL) and 7 (TSDA) can be grounded if external sensors aren’t used, simplifying circuit design. The 24-pin 0.5mm ZIF Socket and easy-to-tear sticker enable quick, secure installation. Customizations include FPC length/bending area (for non-flat devices), cover glass processing (anti-glare/anti-fingerprint), and OTP programming (10-byte user ID, waveform parameters), adapting to diverse application needs like electronic shelf labels and industrial monitors.

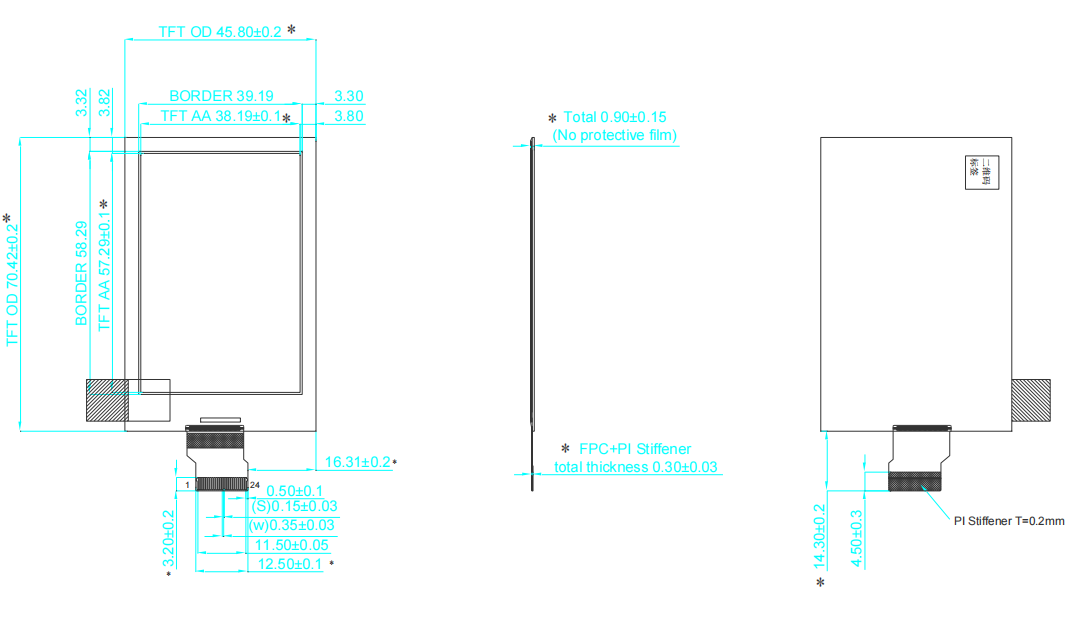

Technical Drawing
2.7 Inch Electronic Paper Display 176×264 Resolution 24pin Low Power E Ink Display
PIN Definition
PIN Symbol Description Remark
1 NC No connection and do not connect with other NC pins Keep Open
2 GDR N-MOS gate control
3 RESE Current sense input for control loop
4 NC No connection and do not connect with other NC pins Keep Open
5 VSH2 Positive source voltage for Red
6 TSCL I2C clock for external temperature sensor Connect to GND if not used
7 TSDA I2C data for external temperature sensor Connect to GND if not used
8 BS Bus selection pin Low=4-wire SPI, High=3-wire SPI
9 BUSY_N Busy state output pin High=IC working, no command allowed
10 RST_N Global reset pin Active low
11 DC Command/Data control pin High=Data, Low=Command
12 CSB Chip Select input pin Low=IC enabled for MCU communication
13 SCL Serial communication clock input
14 SDA Serial communication data input
15 VDDIO IO voltage supply
16 VCC Digital/Analog power 2.4~3.6V
17 VSS Digital ground
18 VDD 1.5V voltage input & output
19 VPP OTP program power 10V
20 VSH1 Positive source voltage
21 VGH Positive gate voltage
22 VSL Negative source voltage
23 VGL Negative gate voltage
24 VCOM VCOM driving voltage OTP programmed in factory

Customization Options

The YE027A41 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
