1.3 Inch Electronic Paper Screen 128×256 Resolution 18pin Ultra Low Power E Ink Display
1.3 Inch Electronic Paper Screen 128×256 Resolution 18pin Ultra Low Power E Ink Display
Specifications
Brand Name :
YZY
Model Number :
YE013A26
Certification :
RoHS/CE/CB
Place of Origin :
Guangdong, China
MOQ :
600
Price :
2.29-4.79/pc
Payment Terms :
,T/T,D/P,D/A,Western Union
Supply Ability :
300k/month
Delivery Time :
14-30days
Packaging Details :
320pcs/box
Description
1.3 Inch E-paper Display 128×256 Resolution 18pin Ultra-Low Power Black White E-Ink Screen(Model: YE013A26)
Product Features
◊128×256 pixels display (115 DPI, square pixel 0.141×0.141mm)
◊Black/White (B/W) 2-color high-definition display capabilities
◊High contrast (typ. 6.5:1) & high white reflectance (white state L*=68~69)
◊Pure reflective mode & ultra wide viewing angle (≤10°)
◊Bi-stable display & ultra low power consumption (≤2μA deep sleep)
◊Hard-coat antiglare surface & commercial temperature range (0~40℃)
◊On-chip display RAM & waveform stored in on-chip OTP
◊3-wire/4-wire SPI interface & I2C temperature sensor interface (internal)
◊On-chip booster/regulator (generates VCOM/Gate/Source driving voltages) & ROHS2.0+HF+REACH compliant
The YE0130A26 E-PAPER display module is a high-performance Active Matrix Electrophoretic Display (AMEPD) with integrated interface and reference system design. It features a 1.3-inch active area with 128×256 square pixels (0.141×0.141mm pixel pitch), supporting Black/White 2-color high-definition display capabilities—ideal for microelectronic devices requiring clear, low-power information presentation. The module integrates an SSD1682 driver IC, including gate buffer, source buffer, interface logic, timing controller, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable and efficient performance. With an ultra-thin outline dimension of 21.7(H)×35.3(V)×1.0(D)mm (without masking film) and ultra-lightweight design (1.2±0.2g), it enables seamless integration into tiny devices like electronic shelf labels, smart wearables, portable sensors, and mini IoT devices. The hard-coat antiglare surface and pure reflective mode ensure clear readability even under strong light, while ultra-low power consumption meets long-term battery-powered application needs.
Type E-Paper Screen refreshing method slow refresh + partial refresh
Resolution 144*200 Place Of Origin
Shenzhen, China
Brand Name YZY Outline Dimensions
24.69(H)×36.64(V) ×0.9(D) mm
Supplier Type All (IPS) Active Area
19.44(H)×27.00(V)mm
Weight 1.2±0.2g Driver IC SSD1680
MOQ 35PCS Operating Temp.
0~40℃
Connector Type
18 pin
 Storage Temp. -20~60°C
Colors Black/White
Product Picture

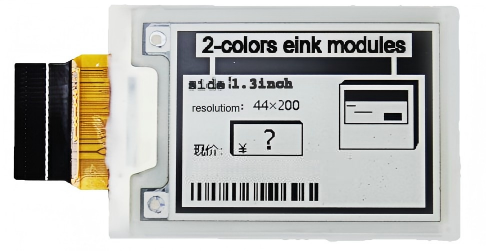

1.3 Inch Electronic Paper Screen 128×256 Resolution 18pin Ultra Low Power E Ink Display
The YE013A26 E-PAPER display module stands out in ultra-compact high-definition scenarios with its 1.3-inch size, 144(H)×200(V) resolution, and 188 DPI square display. As a dual-color (black and white) solution, it delivers sharp contrast and clear information presentation—black for text, barcodes, or key data, and white as the background—making it ideal for mini electronic shelf labels, smart wearables, and portable terminals. Its 0.135×0.135mm square pixels ensure exceptional clarity, even small 6pt fonts and barcodes remain easily legible. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining reliable readability in retail stores or outdoor environments. With an ultra-thin 0.9mm profile and lightweight 1.6±0.2g design, it fits seamlessly into space-constrained devices like smart badges, while ultra-low power consumption (≤3μA in deep sleep mode) enables over 12 months of battery life for daily-updated applications.
The YE013A26 E-PAPER display module boasts diverse industry applications tailored to its dual-color advantages. In retail, it serves as compact electronic shelf labels for small products (e.g., cosmetics, accessories), using crisp black text on white background to display product names, prices, and stock status—simplifying information access for customers while reducing retail maintenance costs via low power consumption. In logistics, it functions as mini cargo tags, presenting waybill numbers, shipment statuses, and priority alerts (black text for critical details) with the ability to withstand -25~50℃ transportation conditions for up to 10 days. In smart wearables, its ultra-compact size and lightweight design fit perfectly into fitness trackers or employee ID badges, displaying steps, work status, or identification information with clear black-and-white contrast. In industrial control, it acts as tiny status monitors, indicating normal (white background) and fault (black text/high-contrast alerts) states for equipment or production lines. Compliant with RoHS2.0+HF+REACH standards and validated through rigorous reliability tests (including high-temperature, low-temperature, vibration, and drop tests), it meets global environmental requirements and ensures stable performance in harsh operating conditions.
Core Advantages
1.3 Inch Electronic Paper Screen 128×256 Resolution 18pin Ultra Low Power E Ink Display

◊ High-Definition Square Display: Sharp Details, Versatile Layouts

The YE013A26 E-PAPER module features a 1.3-inch size with 144(H)×200(V) resolution and 188 DPI, paired with 0.135×0.135mm square pixels—delivering crisp text, barcodes, and graphics, ideal for dense information display in compact spaces. As a dual-color (black-white) solution, it ensures precise optical performance: white state L*≥66, black state L*≤32, and ghosting ≤2, with contrast ratio calculated as the ratio of white reflectance to black reflectance. Its pure reflective mode eliminates backlighting to save power, while the hard-coat antiglare surface reduces glare under direct sunlight, maintaining readability in bright indoor or outdoor scenarios. With a viewing angle of no more than 2 degrees for accurate measurement, there is no visual deviation from any direction, supporting multi-person viewing for shared devices like mini electronic shelf labels.

◊ Ultra-Low Power: Long Battery Life, Energy Efficiency

Powered by bi-stable technology, the YE013A26 only consumes power during updates—with panel update power consumption max 80mAs (at 25℃) and peak module current ≤8mA, while drawing ≤3μA in deep sleep mode. A standard lithium battery can support daily-updated devices for over 12 months, minimizing battery replacement frequency. The module internally generates key voltages (VCOM, VGH/VGL, VSH1/VSL) via on-chip circuits, simplifying external wiring and optimizing energy efficiency. It operates within 0~50℃ (45~70%RH) and stores safely at -25~50℃; for environments above 35℃, it is recommended to swipe the screen once every 24 hours to ensure stable single-pixel performance, with built-in temperature sensing support for adaptive waveform adjustment.

◊ Ultra-Compact & Durable: Easy Integration, Wide Adaptability

With an outline dimension of 24.69(H)×36.64(V)×0.9(D)mm (without masking film) and weight of 1.6±0.2g, the YE013A26 fits seamlessly into space-constrained devices like smart wearables and mini cargo tags. It meets RoHS2.0+HF+REACH environmental standards and passes rigorous reliability tests: 240-hour high-temperature operation (60℃, 35%RH), 240-hour low-temperature operation (-25℃), 50 cycles of temperature cycling (-25℃/30min~70℃/30min), 1-hour vibration testing (1.04G, 10~500Hz, X/Y/Z directions), and 100cm drop impact on concrete (full packaging). Its 5-year design life (assumed at 25℃/60%RH operation) ensures long-term use, while the surface requires gentle cleaning with petroleum benzene-soaked soft materials

◊ Flexible Interface & Easy Integration: Low Development Cost

The YE013A26 supports 3-line/4-line SPI selection via the BS pin: 4-line SPI (BS low) uses SCL, SDA, DC, and CSB pins, while 3-line SPI (BS high) adopts 9-bit data transmission (1-bit D/C# + 8-bit data), compatible with most MCUs and embedded systems without complex drivers. It features a 24-pin 0.5mm ZIF Socket for quick, secure installation, with key pins including RST_N (global reset, active low), BUSY_N (driver status indicator), and VPP (10V for OTP programming). For installation, it is recommended to add a transparent protective plate to resist external force, and avoid uneven twisted stress on the module—supporting flexible integration into non-flat layouts, which reduces development and maintenance costs for end-users.

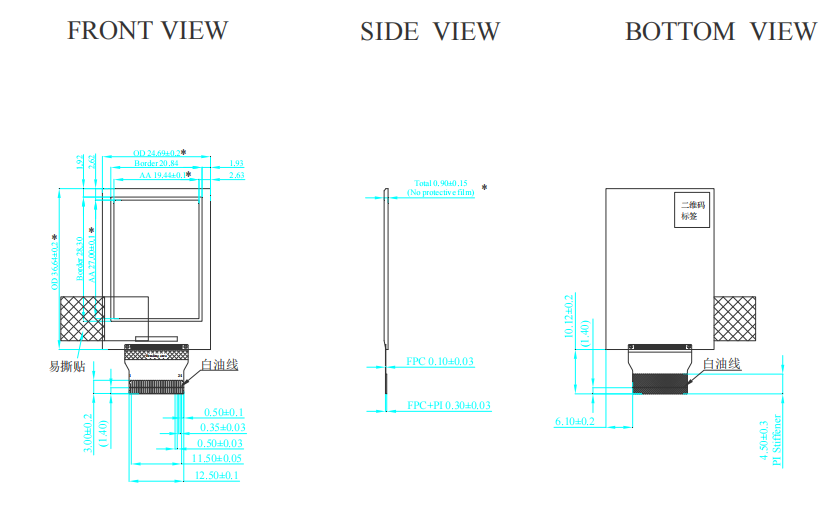

Technical Drawing

1.3 Inch Electronic Paper Screen 128×256 Resolution 18pin Ultra Low Power E Ink Display

PIN Definition
PIN Symbol Description Remark
1 GDR This pin is N-MOS gate control.
2 RESE Current sense input for control loop.
3 VSH2 Positive source voltage
4 BUSY_N This pin indicates the driver status. Note 6-4
5 RST_N Global reset pin Note 6-3
6 DC Serial communication Command/Data input Note 6-2
7 CSB Serial communication chip select. Note 6-1
8 SCL Serial communication clock input.
9 SDA Serial communication data input.
10 VCC Digital/Analog power.
11 VSS Digital ground
12 VDD 1.5V voltage input & output
13 VPP OTP program power (10V)
14 VSH1 Positive source voltage
15 VGH Positive gate voltage
16 VSL Negative source voltage.
17 VGL Negative gate voltage.
18 VCOM VCOM driving voltage

Customization Options

The YE013A26 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
