15.6 Inch 600 Nits FHD Laptop LCD Screen 1920x1080 30 Pin eDP Straight Connector Anti Glare Notebook Display Panel
15.6 Inch 600 Nits FHD Laptop LCD Screen 1920x1080 30 Pin eDP Straight Connector Anti Glare Notebook Display Panel
15.6 Inch 600 Nits FHD Laptop LCD Screen 1920x1080 30 Pin eDP Straight Connector Anti Glare Notebook Display Panel
15.6 Inch 600 Nits FHD Laptop LCD Screen 1920x1080 30 Pin eDP Straight Connector Anti Glare Notebook Display Panel
Specifications
Model Number :
YVO1560VQE-Y1-6
Certification :
RoHS
Brand Name :
YZY
Payment Terms :
T/T
Price :
$39 / Piece
MOQ :
500 pcs
Place of Origin :
Guangdong, China
Description

15.6 Inch 600 Nits FHD eDP Laptop LCD Module

1920×1080 resolution, 30 pin eDP interface, straight connector structure, anti-glare surface, 600 nits typical brightness, and 65% NTSC color gamut for notebook and OEM display projects.

Product Overview

YVO1560VQE-Y1-6 is a 15.6 inch Full HD TFT LCD module suitable for compatible notebook screen replacement, OEM laptop assembly, repair projects, and LCD spare parts supply. It features 1920×1080 resolution, eDP1.2 interface, normally black display mode, straight connector structure, anti-glare surface treatment, 600 cd/m² typical brightness, and 65% NTSC typical color gamut.

The higher brightness provides improved visibility in bright indoor and controlled-light environments. This model can also be evaluated for selected embedded eDP display projects when the mainboard signal output, connector definition, mechanical structure, and installation space are suitable.

Higher color gamut options can be evaluated and customized based on the target specification, project quantity, and sample confirmation. For replacement or OEM use, compatibility should be confirmed based on the original LCD model, connector type, pin definition, connector position, straight connector structure, outline size, thickness, and mounting method.

Key Features

15.6 Inch Full HD Display

1920×1080 resolution for compatible notebook screens and OEM display applications.

eDP1.2 Interface

eDP1.2 signal interface with 3.3V typical logic supply for compatible notebook and embedded applications.

Straight 30 Pin Connector

Straight 30 pin eDP connector and PCB structure for matching specific installation and cable routing requirements.

600 Nits High Brightness

550 cd/m² minimum and 600 cd/m² typical brightness for improved visibility in bright indoor environments.

65% NTSC Color Gamut

65% NTSC typical color gamut with 16.7M color support for notebook display applications.

Higher Color Gamut Customization

Higher color gamut options can be evaluated based on project specifications, quantity, and sample approval.

Product Appearance and Detail View

15.6 Inch 600 Nits FHD Laptop LCD Screen 1920x1080 30 Pin eDP Straight Connector Anti Glare Notebook Display Panel

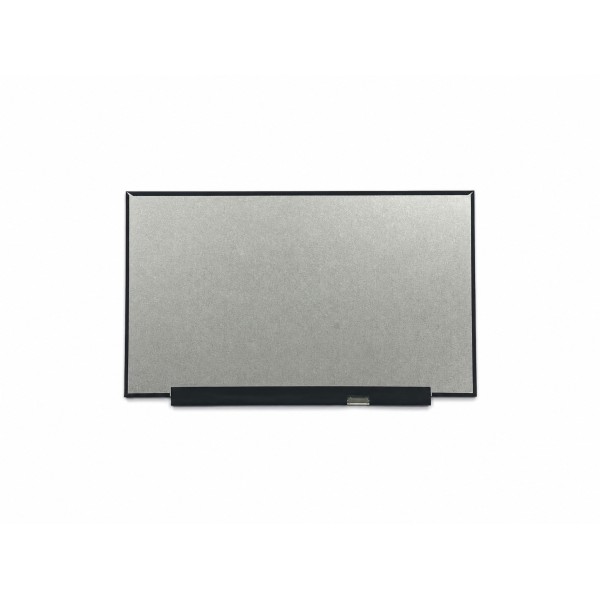

Straight Structure View

Complete rear view for checking the straight connector structure, PCB area, connector position, outline size, and installation direction.

15.6 Inch 600 Nits FHD Laptop LCD Screen 1920x1080 30 Pin eDP Straight Connector Anti Glare Notebook Display Panel

Enlarged Connector Detail

Enlarged detail view for checking the 30 pin eDP connector position, PCB area, insertion direction, and matching requirements.

Technical Specifications

Model YVO1560VQE-Y1-6
Display Size 15.6 Inch
Resolution 1920 × 1080
Active Area 344.16(H) × 193.59(V) mm
Outline Size Without PCB 350.6(Typ.) × 205.17(Typ.) × 3.2 Max mm
Outline Size With PCB 350.6(Typ.) × 215.0(Typ.) × 3.2 Max mm
Pixel Pitch 0.1793 × 0.1793 mm
Pixel Arrangement RGB Vertical Stripe
Brightness 550 cd/m² Min. / 600 cd/m² Typ.
Contrast Ratio 1000:1 Min. / 1200:1 Typ.
Response Time 20 ms Typ. / 25 ms Max.
Viewing Angle 85° Min. / 89° Typ.
Display Colors 16.7M, 6bit + HFRC
Color Gamut 65% NTSC Typ.
Display Mode Normally Black
Signal Interface eDP1.2
Connector Pins 30 Pin eDP
Panel Connector I-PEX 20455-030E-76
Mating Receptacle Reference 300E30-1010RC-G3
Structure Type Straight Connector Structure
Logic Input Voltage 3.3V Typ.
Backlight Input Voltage 12V Typ.
LCD Logic Power Consumption 750 mW Max. @ Mosaic pattern, FV=60Hz
Surface Treatment AG Anti-Glare
Operating Temperature 0 ~ 50°C
Storage Temperature -20 ~ 60°C
RoHS Compatible

Compatibility Notice

Compatibility should be confirmed before ordering. Please check the original LCD model, resolution, connector type, pin definition, connector position, straight connector structure, outline size, thickness, and mounting method. Our team can help match a suitable replacement model based on the original LCD part number. For non-laptop applications, compatibility should also be confirmed based on the mainboard eDP signal output and mechanical installation space.

Application Scenarios

Notebook PC screen replacement
Laptop repair and refurbishment projects
OEM notebook display assembly
High-brightness notebook display projects
Portable computing device integration
Embedded eDP display systems
Education and office equipment display projects
LCD spare parts distribution and bulk supply

LCD Module Supply and Model Matching Support

We support laptop LCD panels, TFT LCD modules, touch screens, Raspberry Pi displays, digital photo frames, HDMI-compatible LCD displays, driver boards, and related display products.

For laptop LCD projects, we can help match suitable models based on the original panel number, screen size, resolution, interface, connector position, outline size, brightness, structure type, color gamut, and application requirements.

Quality Check Before Shipment

Products are checked before shipment based on the product type, including appearance, packaging, connector condition, basic display function, and key specification confirmation. Sample and project-based orders can also be checked according to the confirmed model, brightness, structure, and color gamut requirements.

FAQ for Laptop LCD Module Orders

How do I confirm compatibility?

Please send the original LCD model number, screen size, resolution, connector type, connector position, structure type, and clear photos of the front and rear sides. We will help check whether this model or a suitable replacement can match your requirement.

Can you supply samples?

Yes, sample orders are available for model confirmation and project testing.

Can you customize a higher color gamut?

Yes, higher color gamut options can be evaluated based on the target specification, brightness, project quantity, MOQ, and sample validation requirements.

What information should I provide before ordering?

Please provide the original LCD model, required quantity, application, delivery country, and any special requirements such as brightness, color gamut, interface, connector position, straight connector structure, or packaging.

Do you support bulk orders?

Yes, small-batch and bulk orders can be supported based on stock status, model availability, and project requirements.

Can you help match replacement models?

Yes, we can help recommend suitable LCD module models based on the original screen model and key electrical and mechanical specifications.

Send Us Your LCD Module Requirement

Please send us your original LCD model number, screen size, resolution, interface, connector position, structure type, brightness, target color gamut, required quantity, and application details.

Our team will help check model compatibility, customization feasibility, stock availability, and suitable supply options.
