15.6 Inch 1200 Nits FHD Laptop LCD Screen 1920x1080 30 Pin eDP Straight Connector Anti Glare Notebook Display Panel
15.6 Inch 1200 Nits FHD Laptop LCD Screen 1920x1080 30 Pin eDP Straight Connector Anti Glare Notebook Display Panel
15.6 Inch 1200 Nits FHD Laptop LCD Screen 1920x1080 30 Pin eDP Straight Connector Anti Glare Notebook Display Panel
15.6 Inch 1200 Nits FHD Laptop LCD Screen 1920x1080 30 Pin eDP Straight Connector Anti Glare Notebook Display Panel
Specifications
Model Number :
YVO1560VQE-Y1-12
Payment Terms :
T/T
Price :
$46 / Piece
Certification :
RoHS
Brand Name :
YZY
MOQ :
500 pcs
Place of Origin :
Guangdong, China
Description

15.6 Inch 1200 Nits FHD eDP Laptop LCD Screen

1920×1080 resolution, 30 pin eDP1.2 interface, straight connector structure, anti-glare surface, and 1200 nits typical brightness for compatible notebook and OEM display projects.

Product Overview

YVO1560VQE-Y1-12 is a 15.6 inch Full HD TFT LCD module designed for compatible notebook screen replacement, laptop repair, OEM notebook assembly, and LCD spare parts supply. It features 1920×1080 resolution, eDP1.2 interface, normally black display mode, straight connector structure, anti-glare surface treatment, and 1200 cd/m² typical brightness.

The high-brightness backlight provides improved visibility in bright indoor and high ambient-light environments. This model may also be evaluated for selected embedded eDP display projects when the mainboard signal output, connector definition, backlight power, and mechanical installation space are suitable.

The standard version is listed with 65% NTSC typical color gamut. Higher color gamut options can be evaluated based on the target specification, project quantity, and sample confirmation. Compatibility must be confirmed according to the original LCD model, resolution, pin definition, connector position, straight connector structure, outline size, thickness, and mounting method.

Key Features

15.6 Inch Full HD Display

1920×1080 resolution for compatible notebook screens, laptop repair, and OEM display applications.

eDP1.2 Interface

eDP1.2 signal transmission with 3.3V typical logic supply for compatible notebook applications.

Straight 30 Pin Connector

Straight 30 pin eDP connector and PCB structure for matching specific installation and cable routing requirements.

1200 Nits High Brightness

1000 cd/m² minimum and 1200 cd/m² typical brightness for improved visibility in bright environments.

Anti-Glare Surface

AG surface treatment helps reduce reflections in office, industrial, and other bright indoor environments.

Higher Color Gamut Option

Higher color gamut versions can be evaluated based on project specifications, quantity, and sample approval.

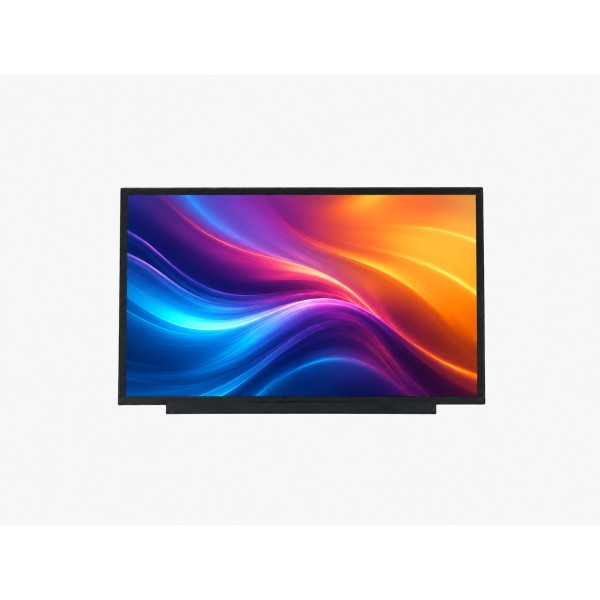

Product Appearance and Detail View

15.6 Inch 1200 Nits FHD Laptop LCD Screen 1920x1080 30 Pin eDP Straight Connector Anti Glare Notebook Display Panel

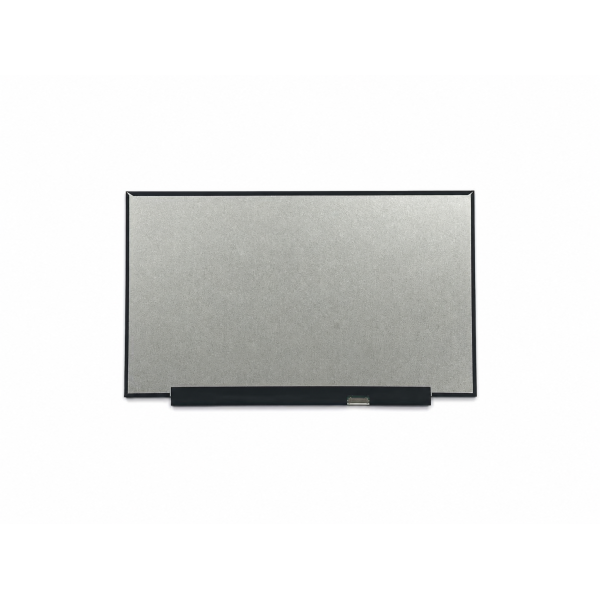

Straight Structure View

Rear view for checking the straight PCB structure, connector position, outline size, and installation direction.

15.6 Inch 1200 Nits FHD Laptop LCD Screen 1920x1080 30 Pin eDP Straight Connector Anti Glare Notebook Display Panel

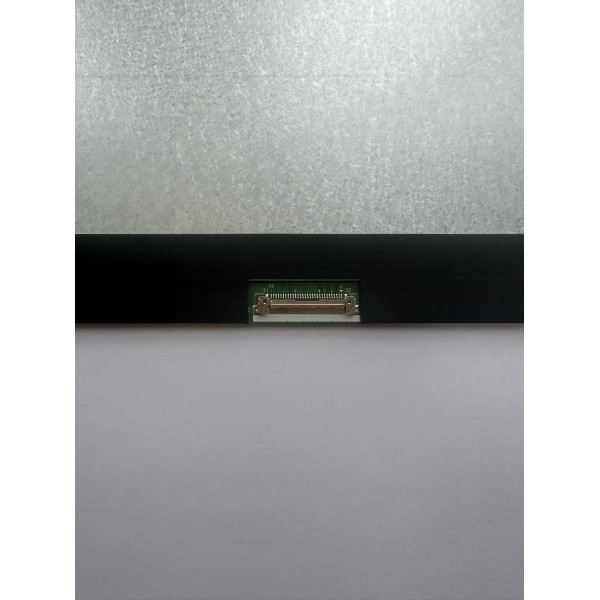

Enlarged Connector Detail

Enlarged view for checking the 30 pin eDP connector, PCB area, insertion direction, and cable matching requirements.

Technical Specifications

Model YVO1560VQE-Y1-12
Display Size 15.6 Inch
Resolution 1920 × 1080
Active Area 344.16(H) × 193.59(V) mm
Outline Size Without PCB 350.6(H) × 205.17(V) × 3.2(D) Max. mm
Outline Size With PCB 350.6(H) × 215(V) × 3.2(D) Max. mm
Pixel Pitch 0.1793 × 0.1793 mm
Display Mode Normally Black
Brightness 1000 cd/m² Min. / 1200 cd/m² Typ.
Contrast Ratio 1000:1 Min. / 1200:1 Typ.
Response Time 20 ms Typ. / 25 ms Max.
Viewing Angle 85° Min. / 89° Typ., All Directions
Display Colors 16.7M, 6bit + HFRC
Color Gamut 65% NTSC Typ.
Signal Interface eDP1.2
Connector 30 Pin eDP, I-PEX 20455-030E-76
Mating Receptacle Reference 300E30-1010RC-G3
Structure Type Straight Connector Structure
Logic Supply Voltage 3.3V Typ.
Backlight Input Voltage 12V Typ.
Surface Treatment AG Anti-Glare
Operating Temperature 0 ~ 50°C
Storage Temperature -20 ~ 60°C
RoHS Compliance Compliant

Compatibility Notice

Compatibility should be confirmed before ordering. Please check the original LCD model, resolution, connector type, pin definition, connector position, straight connector structure, outline size with PCB, thickness, brightness requirement, and mounting method. For non-laptop applications, compatibility must also be confirmed according to the mainboard eDP signal output, logic voltage, backlight power requirements, and available installation space.

Application Scenarios

Notebook PC screen replacement
Laptop repair and refurbishment
OEM notebook display assembly
High-brightness notebook projects
Portable computing device integration
Embedded eDP display systems

LCD Screen Supply and Model Matching Support

We support laptop LCD screens, TFT LCD modules, touch screens, Raspberry Pi displays, HDMI-compatible LCD displays, driver boards, and related display products.

For laptop LCD projects, we can help check suitable models based on the original panel number, screen size, resolution, interface, connector position, outline size, brightness, structure type, and application requirements.

Quality Check Before Shipment

Products are checked before shipment according to the confirmed model and order requirements, including appearance, packaging, connector condition, basic display function, brightness version, and structure type.

FAQ for Laptop LCD Screen Orders

How do I confirm compatibility?

Please send the original LCD model number, screen size, resolution, connector position, structure type, and clear photos of the original screen label and rear side.

Can you supply samples?

Yes, sample orders are available for model confirmation and project testing.

Can you customize a higher color gamut?

Higher color gamut options can be evaluated according to the target specification, brightness, project quantity, MOQ, and sample validation requirements.

What information should I provide before ordering?

Please provide the original LCD model, required quantity, application, delivery country, brightness requirement, connector position, structure type, and any special packaging requirements.

Can you help match replacement models?

Yes, we can recommend a suitable LCD screen based on the original panel model and key electrical and mechanical specifications.

Send Us Your Laptop LCD Requirement

Please send us the original LCD model number, screen size, resolution, interface, connector position, structure type, brightness, required quantity, and application details.

Our team will help check compatibility, model availability, customization feasibility, and suitable supply options.
