Specifications
Model Number :
YVO0430JFR-S1
Price :
$3.38-4.23/pieces
Payment Terms :
T/T
Place of Origin :
Guangdong, China
MOQ :
500
Brand Name :
YZY
Description
IPS TFT LCD DISPLAY MODULE

4.28 Inch 480 × 272 IPS TFT LCD Module

40 Pin RGB Interface · 600 Nits · All Viewing
Compact IPS TFT LCD module for embedded devices, HMI equipment, control systems and customized display integration.
4.28 Inch 480x272 IPS TFT LCD Module 600 Nits 40 Pin RGB Interface Wide Viewing Embedded Display
4.28"
Display Size
480 × 272
Resolution
40 Pin
RGB Interface
600 Nits
Typical Brightness
EMBEDDED DISPLAY SOLUTION

IPS TFT LCD Module with Wide Viewing Characteristics

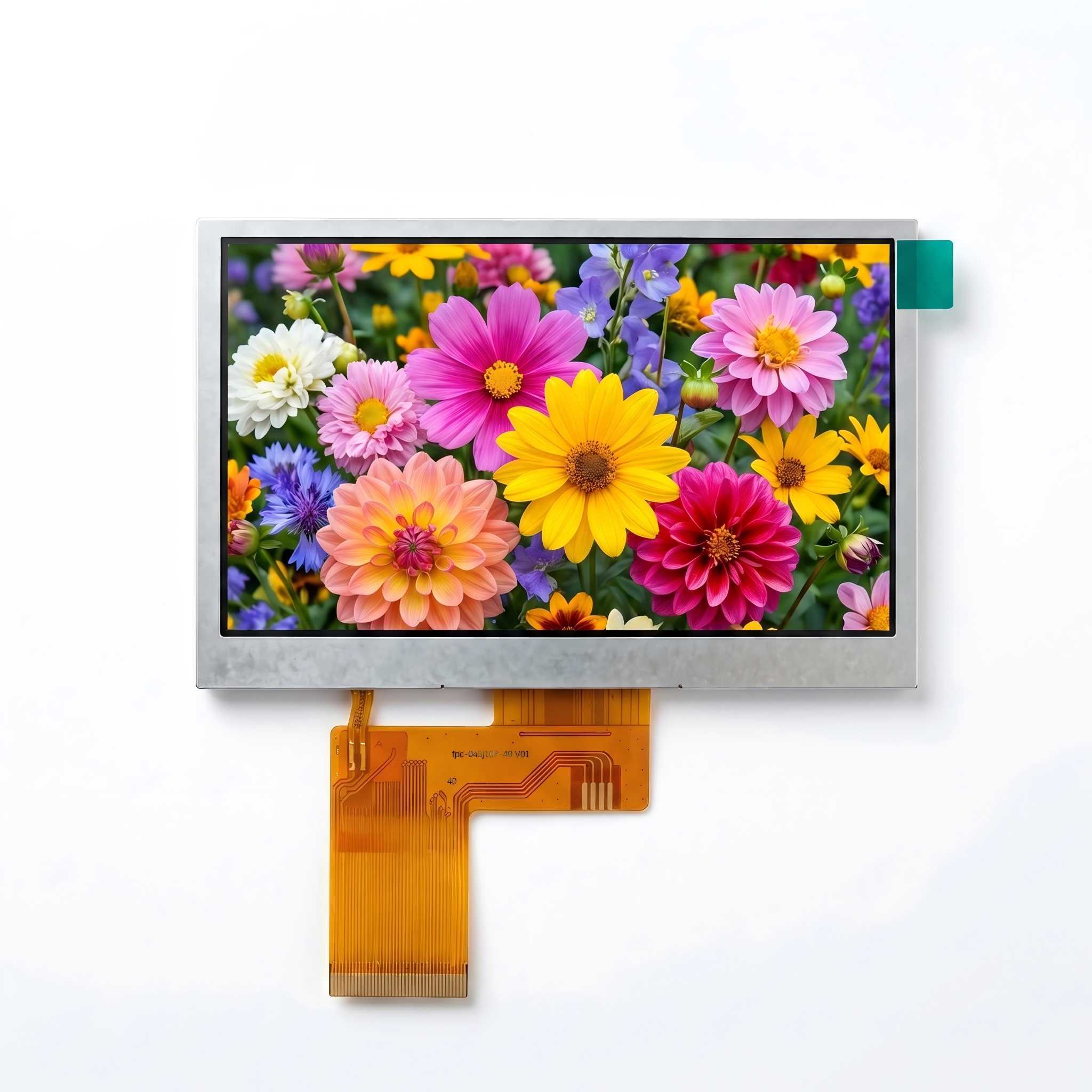

This 4.28-inch TFT LCD module features a 480 × 272 resolution, 40-pin RGB interface and 600 cd/m² typical brightness. The normally black IPS display provides all-direction viewing characteristics for compact embedded and equipment display applications.

4.28 Inch 480x272 IPS TFT LCD Module 600 Nits 40 Pin RGB Interface Wide Viewing Embedded Display
PRODUCT INFORMATION

Compact 480 × 272 Display Module

The module measures approximately 105.50 × 67.20 × 3.00 mm, with a 95.04 × 53.856 mm active display area.

LCD Mode Normally Black / Transmissive
Interface RGB
Pin Count 40 Pin
Viewing Direction All

Key Features


IPS Wide Viewing
Normally black IPS display with typical 85° viewing characteristics in all four directions.
40-Pin RGB Interface
RGB interface with RGB data, PCLK, HSYNC, VSYNC, DE and display control signals.
600 Nits Brightness
Typical white luminance of 600 cd/m² with a 10-LED backlight system.
Wide Temperature Range
Operating temperature from -20°C to +70°C and storage temperature from -30°C to +80°C.
4.28 Inch 480x272 IPS TFT LCD Module 600 Nits 40 Pin RGB Interface Wide Viewing Embedded Display
MODULE STRUCTURE

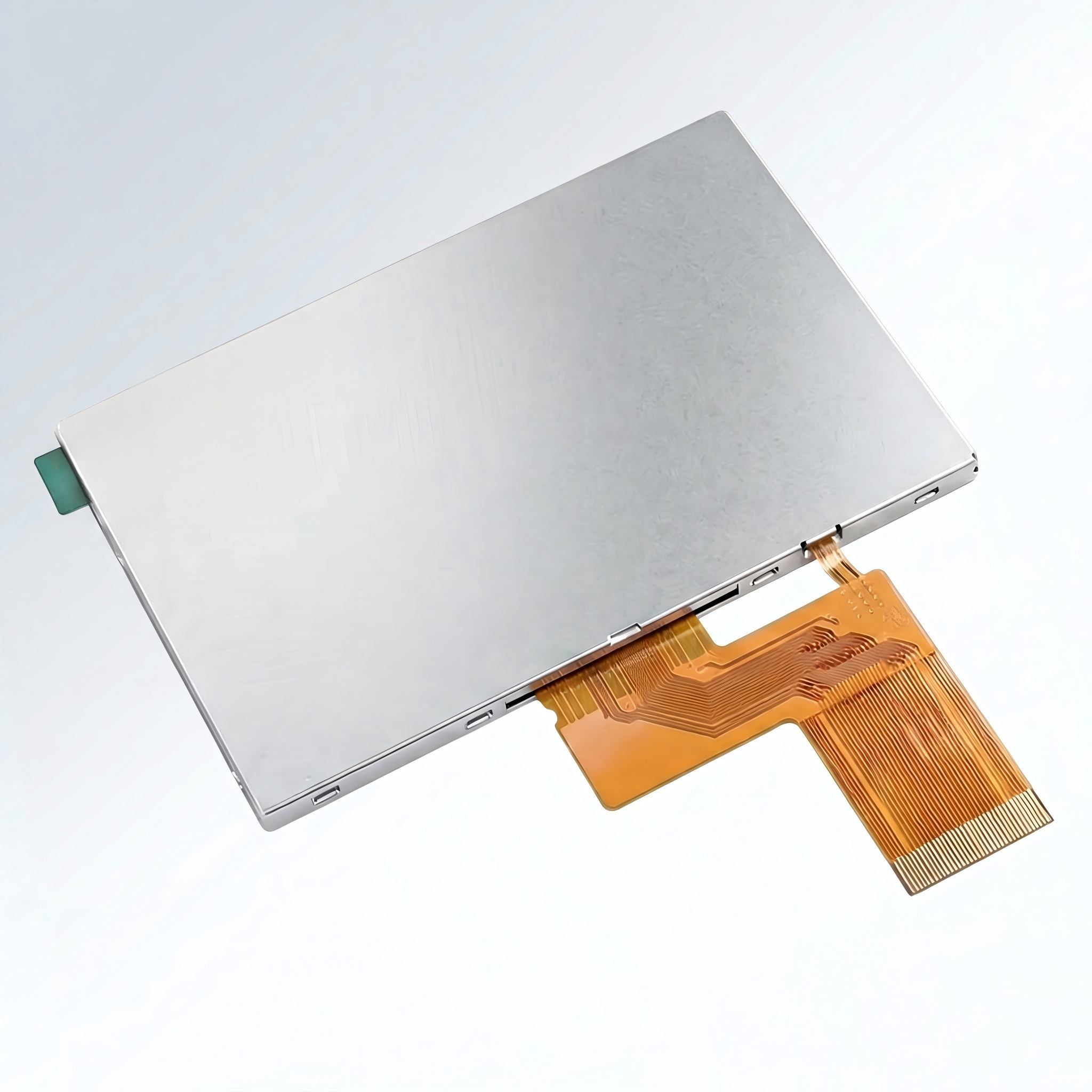

Compact RGB FPC Design

The compact LCD structure is designed for integration into embedded devices and customized equipment.

The 40-pin interface provides RGB display data, synchronization, clock, power and control connections for compatible system designs.
DISPLAY PERFORMANCE

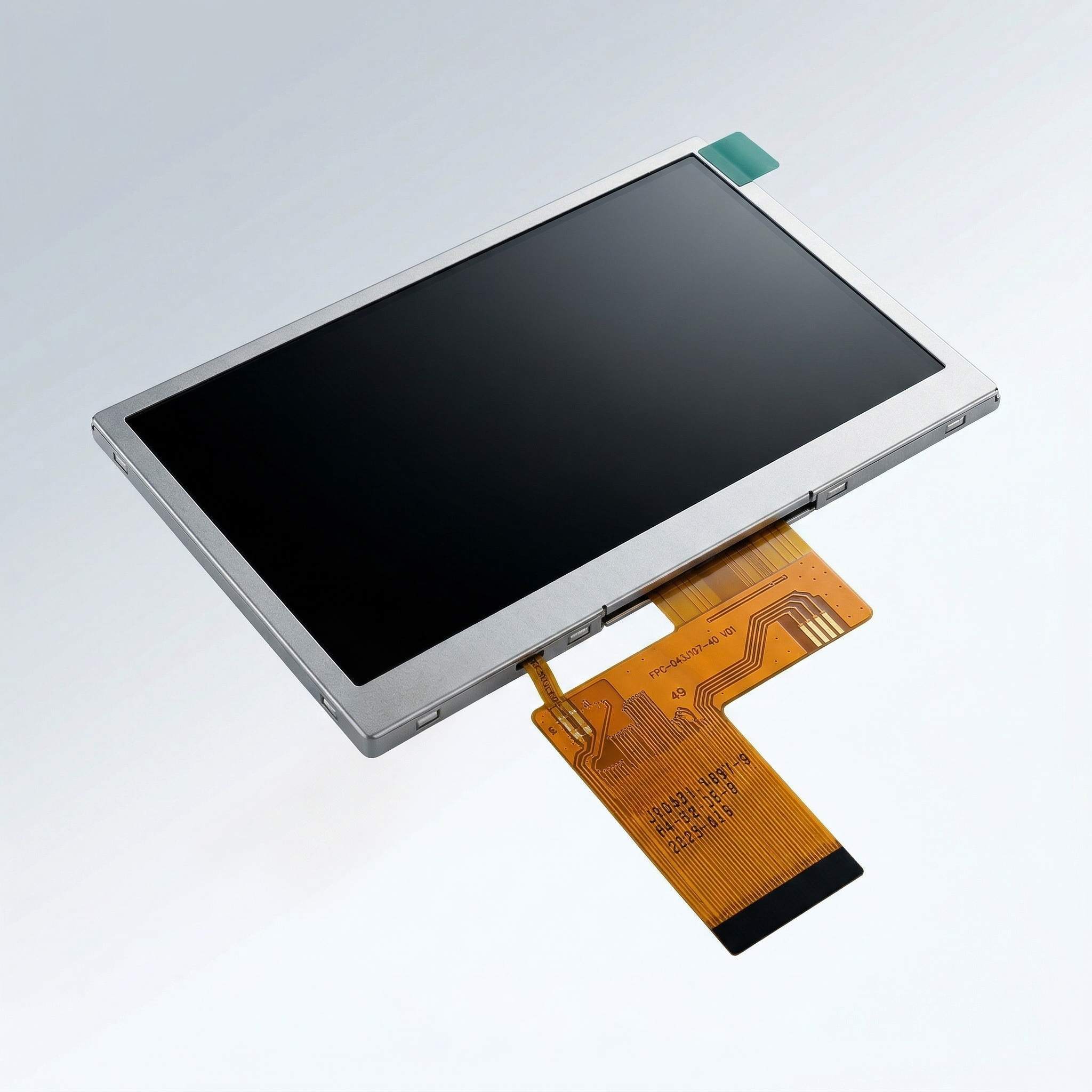

600 Nits IPS TFT Display

High brightness, 1000:1 typical contrast ratio and wide viewing characteristics provide clear display performance for embedded equipment integration.

Brightness 600 cd/m² Typ.
Contrast Ratio 1000:1 Typ.
Display Colors 16.7M
Viewing Angle 85° Typ. All Directions
4.28 Inch 480x272 IPS TFT LCD Module 600 Nits 40 Pin RGB Interface Wide Viewing Embedded Display
PRODUCT DATA

Technical Specifications

Parameter Specification
Model YVO0430JFR-S1
Display Size 4.28 inch
LCD Type IPS TFT LCD, Normally Black, Transmissive
Resolution 480 × 272
Interface RGB
Pin Count 40 Pin
Brightness 600 cd/m² Typ.
Contrast Ratio 1000:1 Typ.
Viewing Direction All
Viewing Angle 85° Typ. in Four Directions
Display Colors 16.7M
Power Supply 3.3V Typ.
Backlight 10 White LEDs
Backlight Supply 15V Typ. / 40mA Typ.
Active Area 95.04 × 53.856 mm
Module Size 105.50 × 67.20 × 3.00 mm
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Touch Type Not specified
Touch-related Pins X1 / Y1 / X2 / Y2, Pins 37–40
APPLICATIONS

Embedded Display Applications

Suitable for compact display integration in control, HMI and embedded electronic equipment.

4.28 Inch 480x272 IPS TFT LCD Module 600 Nits 40 Pin RGB Interface Wide Viewing Embedded Display
HMI Equipment Industrial Control Testing Equipment Embedded Device

LCD Selection for Your Project

LCD compatibility depends on RGB pin assignment, mechanical dimensions, power requirements and mainboard configuration.

For project evaluation, please provide your mainboard model, RGB pinout, mechanical requirements and estimated quantity. Our team can help check display compatibility before sampling.

Need a Compact IPS RGB TFT LCD Module?

Send us your interface, mechanical requirements and project quantity for technical evaluation.
