5.0 Inch 800x480 TFT LCD Module 1000 Nits 40 Pin TTL RGB Interface High Brightness Embedded Display
5.0 Inch 800x480 TFT LCD Module 1000 Nits 40 Pin TTL RGB Interface High Brightness Embedded Display
5.0 Inch 800x480 TFT LCD Module 1000 Nits 40 Pin TTL RGB Interface High Brightness Embedded Display
5.0 Inch 800x480 TFT LCD Module 1000 Nits 40 Pin TTL RGB Interface High Brightness Embedded Display
5.0 Inch 800x480 TFT LCD Module 1000 Nits 40 Pin TTL RGB Interface High Brightness Embedded Display
5.0 Inch 800x480 TFT LCD Module 1000 Nits 40 Pin TTL RGB Interface High Brightness Embedded Display
5.0 Inch 800x480 TFT LCD Module 1000 Nits 40 Pin TTL RGB Interface High Brightness Embedded Display
5.0 Inch 800x480 TFT LCD Module 1000 Nits 40 Pin TTL RGB Interface High Brightness Embedded Display
Specifications
Place of Origin :
Guangdong, China
Model Number :
YVO0500NJR-S1-10
Payment Terms :
T/T
Price :
$6.23-7.81/pieces
Brand Name :
YZY
Certification :
RoHS
MOQ :
500
Description
HIGH BRIGHTNESS TFT LCD MODULE

5.0 Inch 800 × 480 TFT LCD Module

40 Pin TTL RGB · 1000 Nits · Wide Viewing
High-brightness TFT LCD module for embedded devices, HMI equipment, industrial control systems and customized display integration.
5.0 Inch 800x480 TFT LCD Module 1000 Nits 40 Pin TTL RGB Interface High Brightness Embedded Display
5.0"
Display Size
800 × 480
Resolution
40 Pin
TTL RGB Interface
1000 Nits
Typical Brightness
EMBEDDED DISPLAY SOLUTION

High-Brightness 5.0" TFT LCD for Equipment Integration

This 5.0-inch TFT LCD module features an 800 × 480 resolution, 40-pin TTL 24-bit RGB interface and 1000 cd/m² typical brightness. The normally black transmissive display provides wide viewing characteristics for embedded and equipment display applications.

5.0 Inch 800x480 TFT LCD Module 1000 Nits 40 Pin TTL RGB Interface High Brightness Embedded Display
PRODUCT INFORMATION

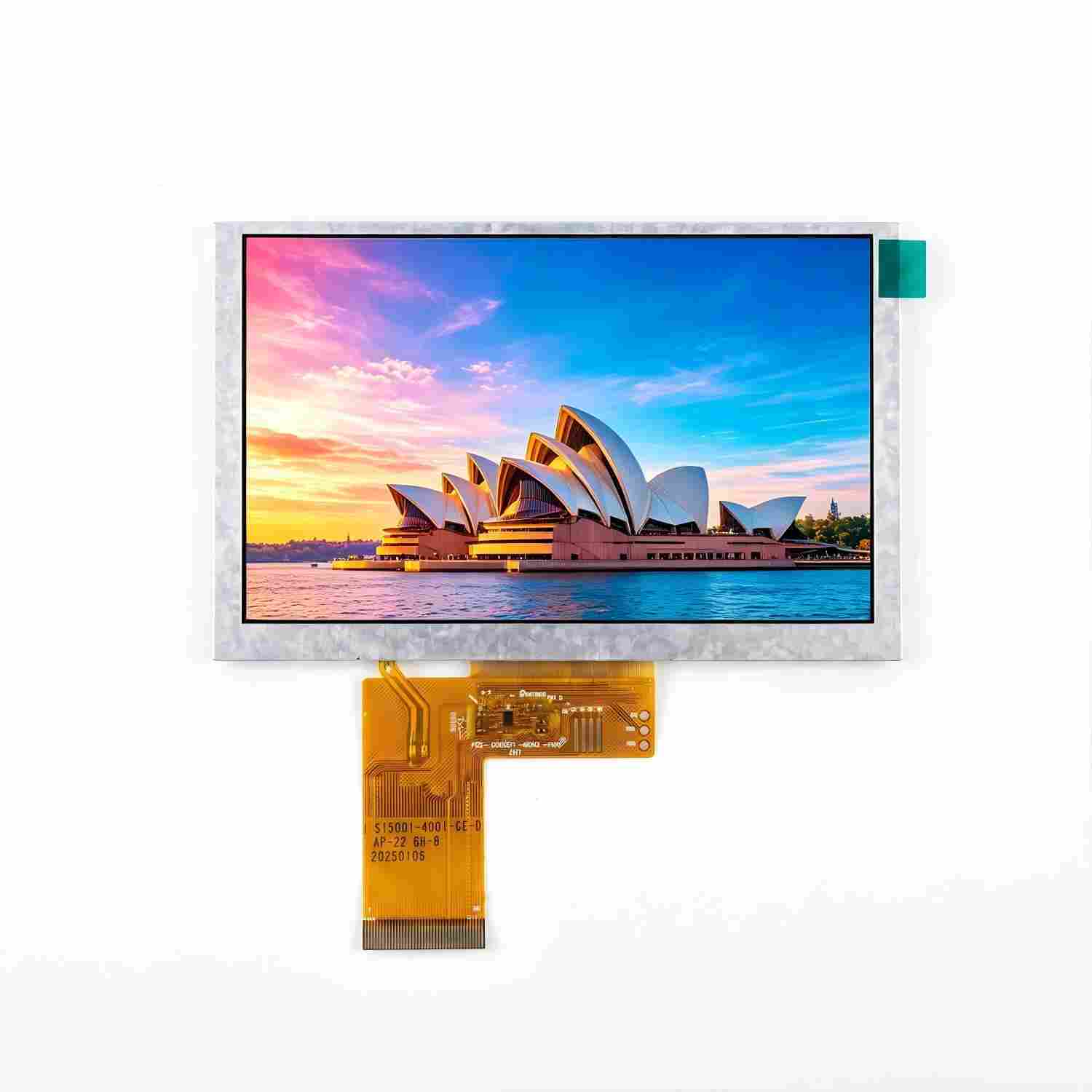

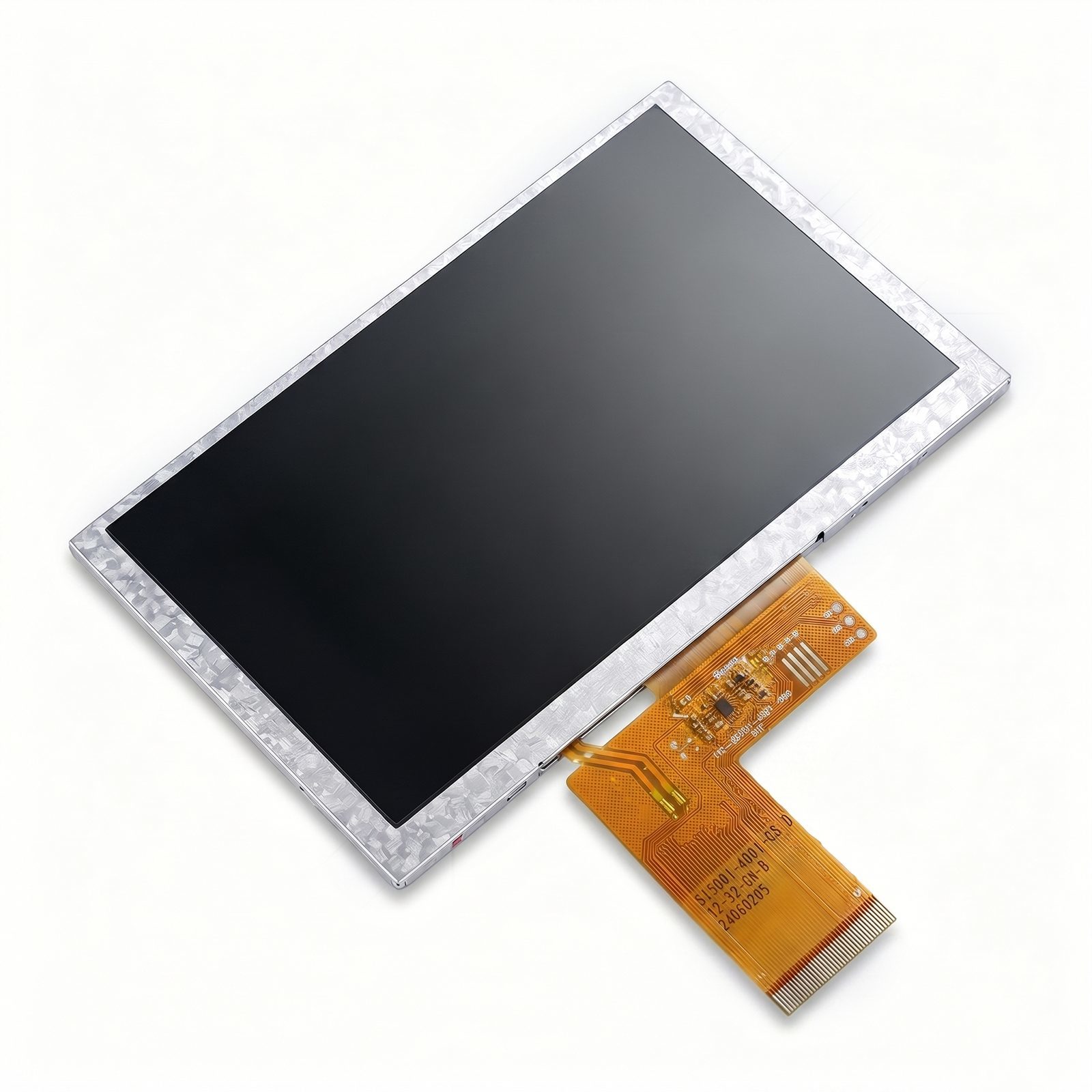

Compact 5.0" TFT LCD Module

The module measures approximately 120.7 × 75.8 × 2.9 mm, with a 108.0 × 64.8 mm active display area.

Display Mode Normally Black / Transmissive
Interface TTL 24-bit RGB
Pin Count 40 Pin
Viewing Direction Free

Key Features


1000 Nits High Brightness
Typical luminance of 1000 cd/m² for high-brightness embedded display applications.
40-Pin TTL RGB Interface
24-bit RGB interface with RGB data, DCLK, HSYNC, VSYNC, DE and display control signals.
Wide Viewing Characteristics
Typical viewing angle reaches 80° in all four directions.
24-LED Backlight
24 white LEDs with 18V typical backlight voltage and 80mA typical current.
5.0 Inch 800x480 TFT LCD Module 1000 Nits 40 Pin TTL RGB Interface High Brightness Embedded Display
MODULE STRUCTURE

Compact RGB FPC Design

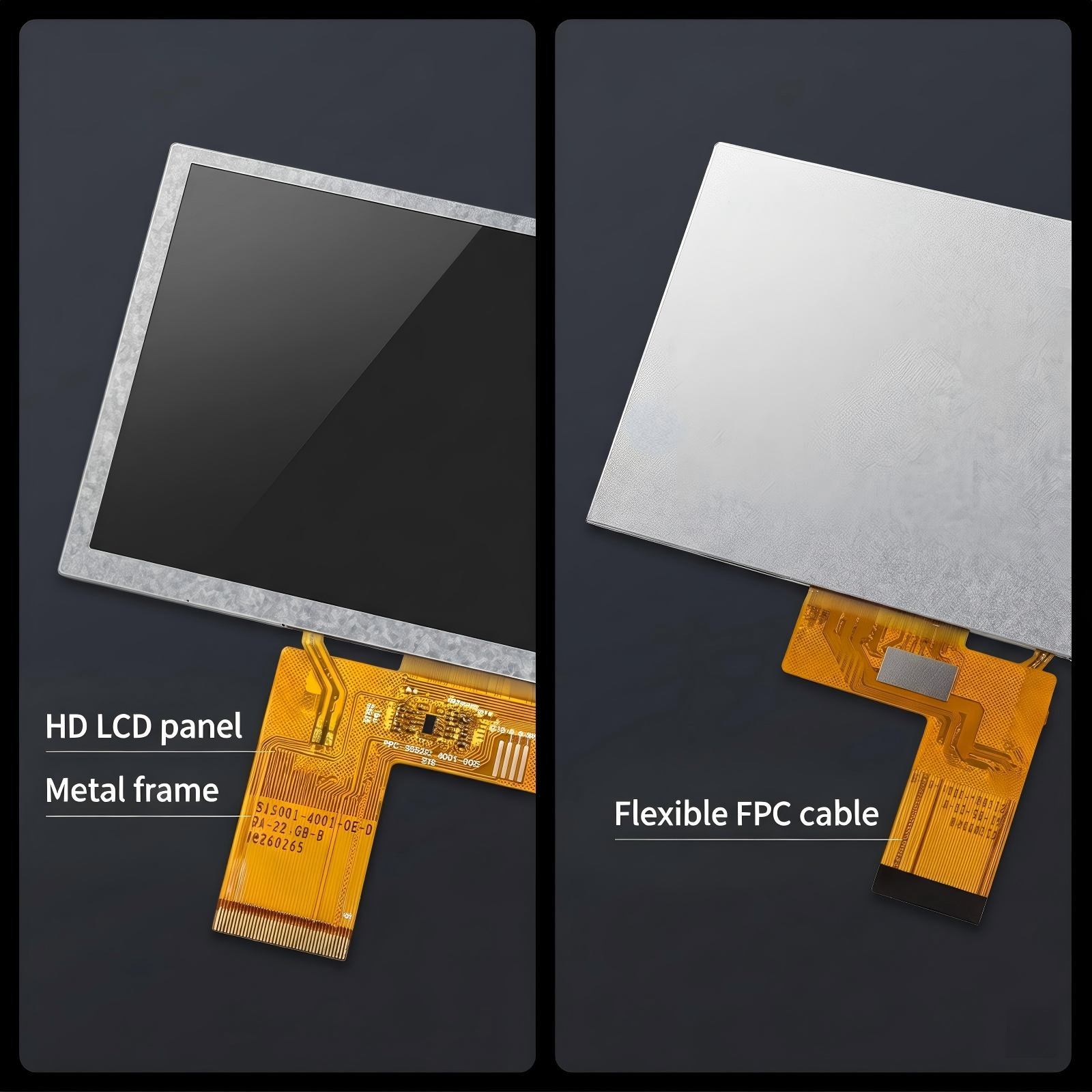

The module combines the TFT LCD panel, driver IC, FPC and high-brightness LED backlight in a compact structure.

The 40-pin interface provides RGB display data, synchronization, clock, power and control connections for compatible embedded mainboards.
DISPLAY PERFORMANCE

1000 Nits High-Brightness TFT Display

High luminance, 1000:1 typical contrast ratio and wide viewing characteristics provide clear display performance for embedded equipment integration.

Brightness 1000 cd/m² Typ.
Contrast Ratio 1000:1 Typ.
Display Colors 16.7M
Viewing Angle 80° Typ. Four Directions
5.0 Inch 800x480 TFT LCD Module 1000 Nits 40 Pin TTL RGB Interface High Brightness Embedded Display
PRODUCT DATA

Technical Specifications

Parameter Specification
Model YVO0500NJR-S1-10
Display Size 5.0 inch
LCD Type a-Si TFT
Display Mode Normally Black / Transmissive
Resolution 800 × 480
Interface TTL 24-bit RGB
Pin Count 40 Pin
Brightness 1000 cd/m² Typ.
Contrast Ratio 1000:1 Typ.
Viewing Direction Free
Viewing Angle 80° Typ. in Four Directions
Display Colors 16.7M
Color Gamut 60% Typ.
Logic Supply 3.3V Typ.
Backlight 24 White LEDs
Backlight Voltage 18V Typ.
Backlight Current 80mA Typ.
LED Lifetime 30,000 Hours Min.
Active Area 108.0 × 64.8 mm
Module Size 120.7 × 75.8 × 2.9 mm
Touch Without CTP
APPLICATIONS

High-Brightness Embedded Display Applications

Suitable for display integration in HMI, industrial control and embedded electronic equipment.

5.0 Inch 800x480 TFT LCD Module 1000 Nits 40 Pin TTL RGB Interface High Brightness Embedded Display
HMI Equipment Industrial Control Outdoor Equipment Embedded Device

LCD Selection for Your Project

LCD compatibility depends on TTL RGB pin assignment, mechanical dimensions, power requirements and mainboard configuration.

For project evaluation, please provide your mainboard model, RGB pinout, mechanical requirements and estimated quantity. Our team can help check display compatibility before sampling.

Need a High-Brightness 5.0" TFT LCD Module?

Send us your interface, mechanical requirements and project quantity for technical evaluation.

Contact YZY Display
Send your message to this supplier
Send Now
