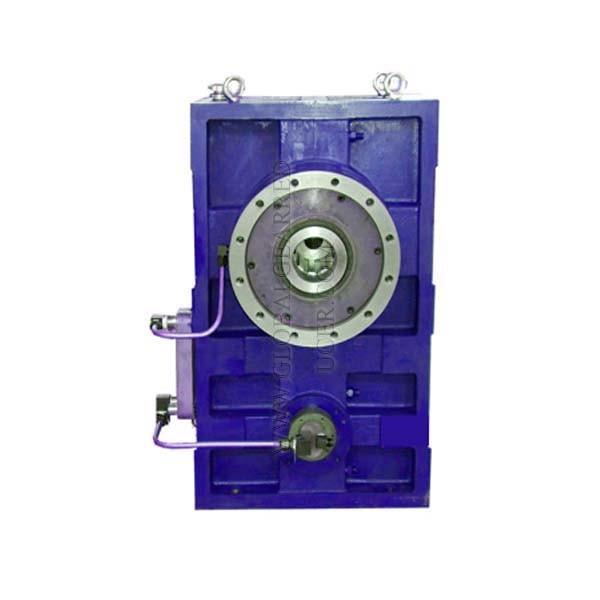

ZLYJ Series 225/250/280 Helical Precision Gearbox For Plastic Extruder
ZLYJ Series 225/250/280 Helical Precision Gearbox For Plastic Extruder
ZLYJ Series 225/250/280 Helical Precision Gearbox For Plastic Extruder
ZLYJ Series 225/250/280 Helical Precision Gearbox For Plastic Extruder
Specifications
Model Number :
ZLYJ
Certification :
ISO9001
Place of Origin :
Jiangsu,China
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
800PCS per Month
Delivery Time :
20-30 Working Days
Packaging Details :
Wooden Case
Gearing Arrangement :
Helical
Gear Material :
20CrMnTi Alloy Steel
Input Power :
5.5-550KW
Input Speed :
800/1000/1200/1500
Ratio :
8/10/12.5/14/16/18/20
Lubrication :
Oil Pump
Cooling :
Oil pump and plate cooler
Mounting Position :
Horizontal and Vertical
Noise Level :
Low
Description

Product Description

ZLYJ series gearbox for single screw extruder is a kind of special gear unit researched and developed by importing the most advanced technology of the hard tooth surface in the world. The gears are made of top-grade low-carbon alloy steel with Grade 6 precision of teeth after carbon penetrating, quenching and teeth grinding. The hardness of the teeth surface is 54-62 HRC.

Basic Information

Input power 5.5KW~550KW
Output torque 510N · m ~ 105050N · m
Input speed 600-1500RPM
Output speed Based on Ratio
Gear material 20CrMnTi low carbon alloy steel
Housing material Cast iron
Gear Processing CNC Grinding
Brand of bearings C&U bearing, ZHJ,ZWZ,LYC, HRB, NSK,FAG ,etc
Brand of oil seal FAG,NAK or other brand
Surface hardness of gears HRC54~62
‌Gear accuracy Grade 6
Heat treatment Carburizing, Quenching
Efficiency 95%~96% (depends on the transmission stage)
Output mode Hollow shaft output
Input mode Solid Shaft

Product Feature

1.The whole machine can be used both vertically and horizontally.

2. The gear pair has stable running, low noise and high driving efficiency.

3.The assembling connector has the precision of radial run-out and end face run-out at the international level.

4.The output shaft has a unique bearing structure for prolonging the service life.

5.All standard parts such as bearing, oil seal, lubricant oil pump, etc. are all top quality products .

Assembly Style

ZLYJ Series 225/250/280 Helical Precision Gearbox For Plastic Extruder

Technical Parameter

ZLYJ Series 225/250/280 Helical Precision Gearbox For Plastic Extruder

Application

ZLYJ series gearbox is widely used in top and middle-grade plastic, rubber, and chemical fiber extruders.

Core Competencies

1.Expert management team ensuring operational excellence.

2.Skilled engineering team driving innovative solutions.

3.State-of-the-art manufacturing facilities for precision production.

4.Precision testing instruments guaranteeing quality assurance.

5. Custom gearbox solutions tailored to your specific needs.

6.Reliable after-sales support for seamless operations.

ZLYJ Series 225/250/280 Helical Precision Gearbox For Plastic Extruder
