WBS200 Three-Speed Worm Gear Box for ‌Wire Reel Winding Machine
WBS200 Three-Speed Worm Gear Box for ‌Wire Reel Winding Machine
Specifications
Model Number :
WBS200
Certification :
ISO9001
Place of Origin :
Jiangsu,China
MOQ :
1PCS
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
800PCS per Month
Delivery Time :
20-25 Working Days
Packaging Details :
Wooden Case
Gearing Arrangement :
Helical
Gear Material :
20CrMnTi Alloy Steel
Lubrication :
Oil Pump
Mounting Position :
Vertical
Noise Level :
Low
Description

Product Description

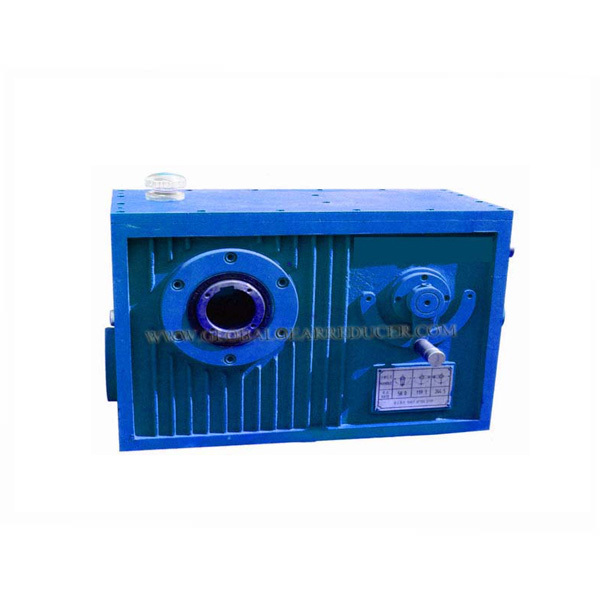

WBS200 gearbox is a three-speed transmission device with worm gear transmission, its input shaft and output shaft are vertical, and the final stage transmission is a worm gear. It is installed with a torque arm and the output is a hollow shaft. A clutch can be provided between the output shaft and the worm. There are two types of assembly forms: left-hand and right-hand. The transmission ratio can be changed by changing the first stage gear parameters.

Technical Feature

1.Three shifting speed,transmission ratio:56.22,115.39,236.85

2.Nominal output torque:3600Nm

3.Structure type: gear worm driving, gear rack shift fork

4. Installation method:Torque arm

Application

WBS200 gearbox is mainly used for shaftless wire take-up machine
