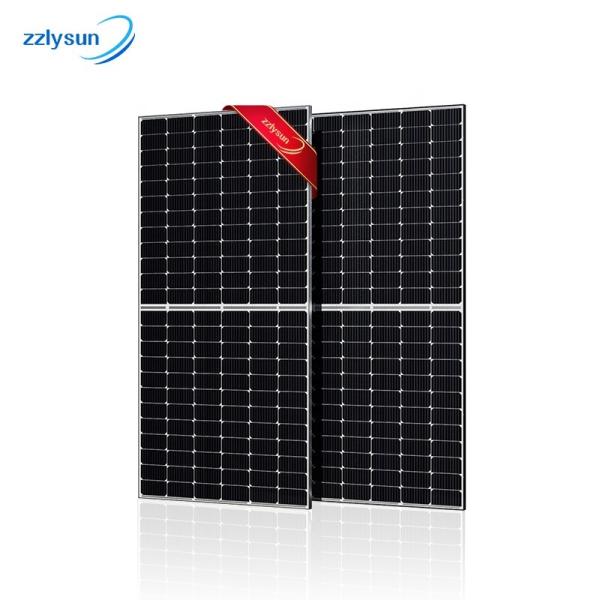

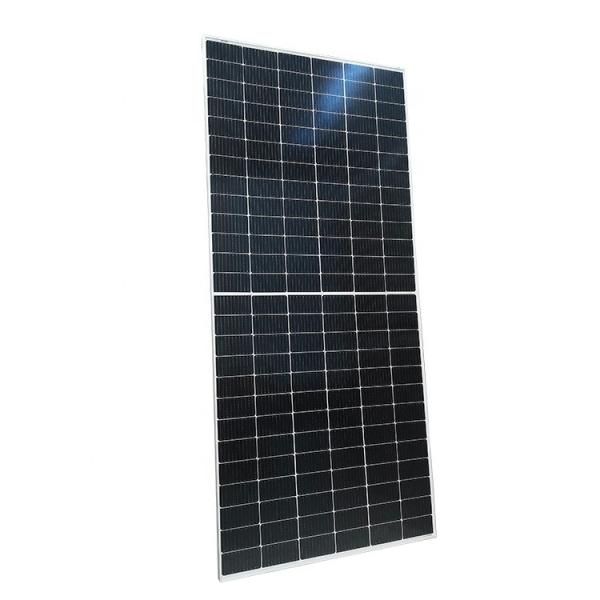

Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Specifications
Place of Origin :
Henan, China
Brand Name :
zzlysun
Model Number :
LY 650~670W
Packaging Details :
Plywood Case
Supply Ability :
1000 Pallet/Pallets per Day
Price :
$0.21/pallets 1-19 pallets
Warranty :
10YEARS
Free installation service :
NO
Application :
Commercial
Solar Panel Type :
Monocrystalline Silicon
Battery Type :
Lead-Acid, Lithium Ion
Controller Type :
MPPT
Mounting Type :
Ground Mounting
Load Power (W) :
50kw, 30KW, 8KW, 6KW, 20KW, 5KW, 10KW, 100kw
Output Voltage (V) :
1000v
Output Frequency :
50Hz/60Hz
Work Time (h) :
12
Certificate :
TUV/ISO/IEC/BIS
Pre-sales project design :
Y
Max. system voltage :
1000V/1500V DC
Series fuse rating :
25A
Tempreture range :
-40 to +85°C
Container type :
40HQ
Monocrystalline solar cells :
210-105mm
Cells :
132pcs
Encapsulation :
EVA
Front Glass :
3.2mm high tempered glass
Weight :
34KG
Solar panel :
2384x1303x35mm
Port :
Shanghai/Ningbo/Qingdao/Guangzhou
Description

Solar Panels System Industrial Solar Panels 650W 660W 670W Solar panel Carport

Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
❖ General mode:
Commercial solar system will be used on the framland,residential community ,bus station,factory ,car parking and large ground power station.
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
ITEM
MECHANICAL CHARACTERISTICS
Dimensions
2384x1303x35mm(LxWx H)
Weight
34kg
Front Glass
3.2mm high transmisson tempered glass
Encapsulation
EVA
Cells
132pcs 210*105mm Monocrystalline solar cells
Frame
Anodized Aluminium Alloy (silver or black)
Junction Box
Rated current:25A,IP68,TUV
Connector
Compatible with MC4
Backsheet
Composite film
Cable
Length Negative 400mm/Positive 300mm
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
ELECTRICAL CHARACTERISTICS AT STANDARD TEST CONDITIONS(STC)
Module Power
650W
655W
660W
665W
670W
Open Circuit Voltage-Voc[V]
45.29
45.49
45.69
45.89
46.09
Short Circuit Current-lsc[A]
18.43
18.49
18.52
18.58
18.63
Max Power Voltage-Vmp[V]
37.39
37.59
37.79
37.99
38.19
Max Power Current-lmp[A]
17.39
17.43
17.47
17.51
17.55
Module Efficiency-p[%]
20.92
21.09
21.25
21.41
21.57
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
❖ Advantage
The Commercial solar system will provide the customer with whole system integration solutions for development ,design,construction ,operation and maintenance.Any requirement for the accurate solutions,pls contact with our salesman directly.
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
❖Company
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
❖ Quality gurantee
The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
Industrial Renewable Energy Solar Panel 650W 660W 670W Carport Solar Panel
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us know freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
