Specifications
Place of Origin :
Henan, China
Brand Name :
zzlysun
Model Number :
200KW/250KW
Packaging Details :
Plywood Case
Supply Ability :
1000 Pallet/Pallets per Day
MOQ :
100000 watts
Price :
$0.70/watts 100000-199999 watts
Warranty :
10YEARS
Free installation service :
NO
Application :
Commercial
Solar Panel Type :
Monocrystalline Silicon
Battery Type :
Lead-Acid, Lithium Ion
Controller Type :
MPPT
Mounting Type :
Ground Mounting
Load Power (W) :
100kw, 120kw, 150KW, 200KW, 250KW
Output Voltage (V) :
1000v
Output Frequency :
50Hz/60Hz
Work Time (h) :
12
Certificate :
TUV/ISO/IEC/BIS
Pre-sales project design :
Y
Max. system voltage :
1000V/1500V DC
Rated power :
200kw/250KW
Rated voltage :
400V
Rated frequency :
50/60Hz
AC connection :
3/N/PE
Rated current :
450A
PV MPPT voltage range :
480V-800V DC
Max. charge power :
500V-600V
Battery voltage range :
352-600V
Operating temperature :
-25 °C~+55 °C
Port :
Shanghai/Ningbo/Qingdao/Guangzhou
Description

Grid tie industrial solar panels system 200kw 250kw solar system

Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW

❖ General mode:
Commercial solar system will be used on the framland,residential community ,bus station,factory ,car parking and large ground power station.
Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
ITEM
200KW hybrid solar system
250KW hybrid solar system
PV Array
550W*364PCS
550W*444PCS
Hybrid Inverter
Hybrid Inverter 100kw *2PCS parallel
Hybrid Inverter 100kw *2PCS parallel
PV Combiner Box
28 input 28 output
37 input 37 output
Monitoring Module
1pc
1pc
Battery Solutions
400kwh
500kwh
Mounting Bracket
Roof/Ground Mounting(Design by your customer requirement)
Accessories
PV cable,MC4 Connector,Installation tools
Predesign
YES
Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
❖ Solar Panel
1.Power:650W
2.The quantity of Cell:132PCS
3.Solar cells size:210*05mmmm
4.Dimensions:2384x1303x35mm((LxWx H)
5.Open Circuit Voltage-Voc[V]:45.29V
6.Short Circuit Current-lsc[A]:18.43A
7.Max Power Voltage-Vmp[V]:37.39V
8.Max Power Current-lmp[A]:17.39A
9.Module Efficiency-p:20.92%
Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
❖ Hybrid Grid Solar Inverter

1. Rate Power: 150KW
2. MPP voltage range:480V-800V
3.AC Voltage Regulation:400v
4.AC grid frequency:50Hz/60Hz
5.Max PV Power:225KW
6. MPPT Efficiency :98.2%
7.AC grid connection type:3W+N+PE
8.Nominal voltage:360V~440V
9. Rated current:450A
10. Max. charge current:450A
Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
❖ Ener logger
1.Power Adaptor:Input 100~240V,50/60hz;
AC Output 5V(+/-15%),1A DC
2.Power Consumption:2.5W
3.Max Communication Range:500m
4.Communication with inverters:RS485
5.Communication with server :TCP
(Modbus TCP protocol)
6.Support Network:Ethernet
7.Data Transfer Interval:5 minutes
Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
❖ High Voltage Lithium Battery
1.Battery Module:76.8V 200AH
2.Configuration:19 battery modules+1 BPU
3.Rated Capacity:200ah
4.Rated Energy:145.92kwh
5.Rated Voltage:729.6V
6.Voltage range:638.4~832.2V
7.Rated Charge/discharge:0.5C
8.Max charge/discharge:1C
9.AC internal resistance:<50m Ω
Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW

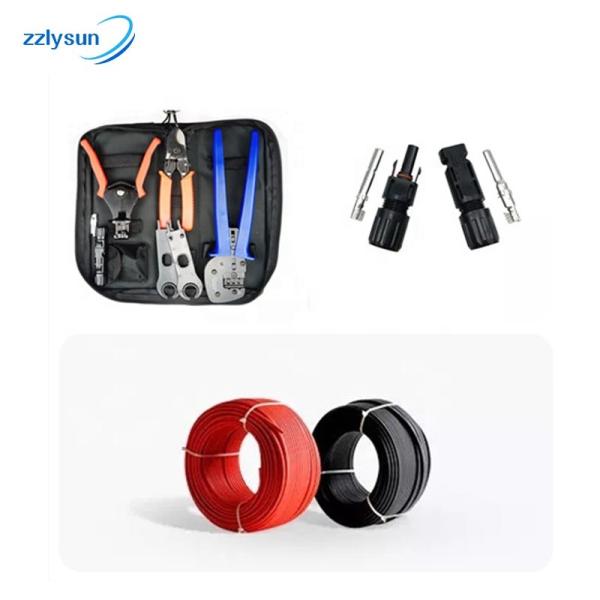

❖ Accessories
1.PV DC Cable
4mm2 or 6mm2

2.Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench
Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW

❖ Accessories
1.PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar/Breaker 63A1000V)

2.MC4 Connector
Rated current: 30A Rated voltage: 1000VDC
Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
❖ Mounting Bracket
1.Good Appearance
2.Easy and flexible installation.
3.Diversified design
4.Light dead-weight
5.Save installation materials
Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
❖ Company
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
❖ Quality gurantee
The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
Grid Tie Solar Panel Hybrid System Ground Mounting Industrial 200KW 250KW
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us know freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
