MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
Specifications
Place of Origin :
Henan, China
Brand Name :
zzlysun
Model Number :
20kw off grid
Packaging Details :
Plywood Case
Supply Ability :
10 Carton/Cartons per Day
MOQ :
15000 watts
Price :
$0.75/watts 15000-29999 watts
Warranty :
5years
Free installation service :
NO
Application :
Home
Solar Panel Type :
Monocrystalline Silicon
Battery Type :
Lead-Acid, Lithium Ion, Lithium/Lead-acid
Controller Type :
MPPT
Mounting Type :
Roof Mounting
Load Power (W) :
8KW, 6KW, 20KW, 5KW, 10KW
Output Voltage (V) :
230V
Output Frequency :
50Hz/60Hz
Work Time (h) :
12
Certificate :
TUV/ISO/IEC
Pre-sales project design :
Y
MPP voltage range :
120VDC ~ 430VDC
No. of MPP trackers :
1
Rated power :
15KW
Battery Voltage :
48VDC
Efficiency (Peak) :
93%
Waveform :
Pure sine wave
Transfer Time :
10ms typical, 20ms Max
Maximum PV Array Open Circuit Voltage :
450VDC
Number of MPP Strings :
1/1
Port :
Shanghai/Ningbo/Qingdao/Guangzhou
Description

High quality commercial use solar panel energy storage battery ground mounting solar energy off grid system

MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
❖ General mode:
The off grid power solar system is that the electric generate from the PV array will provide the load first,the excess electric will charge the battery,when the PV electric is not sufficient ,the battery will provide the load.
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave

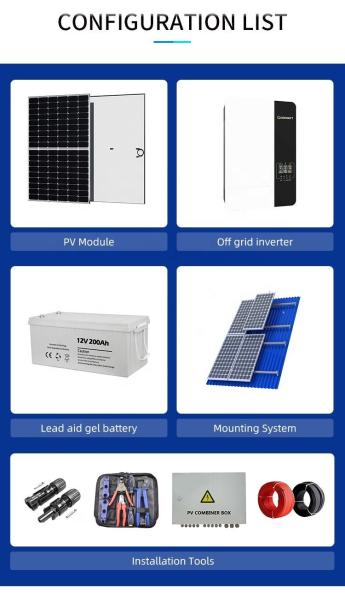

Product List
20KW Off Grid Solar
25KW Off Grid Solar
30 Off Grid Solar
PV module
36pcs*550W
45pcs*550W
654pcs*550W
PV combiner box
4 Input 1 output
5 Input 1 output
4 Input 1 output
Inverter
4PCS*5KW Parallel with 20kw
5PCS*5KW Parallel with 25KW
6PCS*5KW Parallel with 30KW
Monitor
Wifi Module
Wifi Module
Wifi Module
Battery
Lithium Battery
Lithium Battery
Battery Voltage
Lithium Battery 48V 200ah
48VDC
Mounting System
Roof mounting/Ground mounting (Design by your requirement)
Accessories
MC4 Connector,PV cable,Installations
Product List
5KW Off Grid Solar
10KW Off Grid Solar
15KW Off Grid Solar
PV module
9pcs*550W
18pcs*550W
27pcs*550W
PV combiner box
1 Input 1 output
2 Input 1 output
3 Input 1 output
Inverter
5KW off grid solar inverter
2PCS*5KW Parallel with 10kw
3PCS*5KW Parallel with 15kw
Monitor
Wifi Module
Wifi Module
Wifi Module
Battery
Lithium Battery
Battery Voltage
Lithium Battery 48V 200ah
Mounting System
Roof mounting/Ground mounting (Design by your requirement)
Accessories
MC4 Connector,PV cable,Installations
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
❖ Solar Panel
1.Power:540~560W
2.The quantity of Cell:144PCS
3.Solar cells size:182*91mm
4.Dimensions:2279x1134x35mm(LxWx H)
5.Open Circuit Voltage-Voc[V]:49.90V
6.Short Circuit Current-lsc[A]:14.00A
7.Max Power Voltage-Vmp[V]:41.96V
8.Max Power Current-lmp[A]:13.11A
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
❖ Off Grid Inverter
1. Rate Power: 5000W
2.Battery Voltage:48VDC
3.Battery Type:Lithium/Lead-acid
4. Parallel Capability:Yes, max 6 units
5.AC Voltage Regulation:230VAC ± 5% @ 50/60Hz
6. Surge Power:10000VA
7.Efficiency (Peak):93%
8.Waveform:Pure sine wave
9. Transfer Time:10ms typical, 20ms Max
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
❖ Wall Mounted LiFePo4 Battery
* 15-20 years design life. Up to 6000 + cycle Ilfe
* Wall mount or ground stack brick, simply connecting to inverter
* Battery module is scalable for any larger storage system.
* Battery modular built in high quality BMS. Protect battery cells all the way.
*Lithium iron phosphate battery cell, stay safe with battery storage at home.
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
❖ Accessories
1.PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar
/Breaker 63A1000V)
2.MC4 Connector
Rated current: 30A Rated voltage: 1000VDC
3.PV DC Cable
4mm2 or 6mm2
4.Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
❖ Mounting Bracket
1.Good Appearance
2.Easy and flexible installation.
3.Diversified design
4.Light dead-weight
5.Save installation materials
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
❖ Application
The off grid solar system is suitable for the place which are no grid of remote place or the local grid is unstable.
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
❖ Company
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
❖ Quality gurantee
The solar panel power system should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
MPPT Off Grid Solar Energy System Ground Mounting Pure Sine Wave
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ

1.What kind of product can you provide ?

Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?

Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?

Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?

Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem, will let us freely.

5.How many days will the product delivery?

Re:All the package will shipped within 10~20 working days after your deposit of payment.
