Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Specifications
Place of Origin :
Guangdong, China
Brand Name :
zzlysun
Model Number :
10kw hybrid solar
Packaging Details :
Plywood Case
Supply Ability :
10 Carton/Cartons per Day
MOQ :
8000 watts
Price :
$0.50/watts 8000-15999 watts
Warranty :
5years
Free installation service :
NO
Application :
Home
Solar Panel Type :
Monocrystalline Silicon
Battery Type :
Lead-Acid, Lithium Ion
Controller Type :
MPPT
Mounting Type :
Ground Mounting
Load Power (W) :
8KW, 6KW, 20KW, 5KW, 10KW
Output Voltage (V) :
230V
Output Frequency :
50Hz/60Hz
Work Time (h) :
12
Certificate :
TUV/ISO/IEC/BIS
Pre-sales project design :
Y
Rated power :
10kw
Solar panel :
Mono Crystalline
Battery Voltage Range (V) :
40~60V
Charging Strategy for Li-Ion Battery :
Self-adaption to BMS
Max PV Power :
15kw
MPPT Range (V) :
125V-425V
No.of MPPT Trackers :
2
PV Input Current (A) :
22A+22A
Switch Time :
10ms(Typical)
Max.MPPT Charging Current :
200A
Port :
Shanghai/Ningbo/Qingdao/Guangzhou
Description

Hot selling original lithium ion batteries solar energy storage system 10 kw hybrid lead acid solar gel battery

Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery

❖ General mode:
A photovoltaic energy storage system serves as the energy conversion and control center for the entire household photovoltaic system. Its primary function is to convert unstable photovoltaic power into stable AC power for household loads, and to store excess energy in energy storage batteries. Users can set various operating modes according to their needs and choose the priority of electricity use to maximize electricity utilization. Additionally, the system can be monitored through a mobile app to check the operational status of the equipment
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
❖ Solar Panel
Solar modules convert light energy into DC electrical energy by means of the photovoltaic effect. And it’s the energy source of entire system
❖ Utility Grid(AC Input)
The mains electricity or generator can be used as an energy supplement to the PV system,charging the batteries or supplying the load when there is a lack of solar energy, and some models support the feeding of excess power back into the grid.
❖ Battery
Batteries are used to store energy,for example to store photovoltaic energy generated during the day for use at night, or to provide emergency power for households in the event of a mains power failure.
❖ Home Load(AC Output)
For electrical equipment throughout the home, please select the appropriate model according to the power used.
Type
single phase 120V/Split Phase 220V &Single Phase 230V
Model
8KW hybrid solar system
10kw hybrid solar system
PV module
455W solar*18PCS
455W solar*22PCS
PV combiner box
2 Input 2 output
2 Input 2 output
Inverter
8kw hybrid inverter
10kw hybrid inverter
Monitor
Wifi Module
Wifi Module
Battery
Lithium Battery or Lead Aid Battery
Lithium Battery or Lead Aid Battery
Mounting System
Roof mounting/Ground mounting (Design by your requirement)
Accessories
MC4 Connector,PV cable,Installations
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
❖ Solar Panel
1.Power:445~470W
2.The quantity of Cell:144PCS
3.Solar cells size:166*83mm
4.Dimensions:2094x1038x35mm(LxWx H)
5.Open Circuit Voltage-Voc[V]:49.56V
6.Short Circuit Current-lsc[A]:11.32A
7.Max Power Voltage-Vmp[V]:41.21V
8.Max Power Current-lmp[A]:10.08A
9.Module Efficiency:20.47%
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery

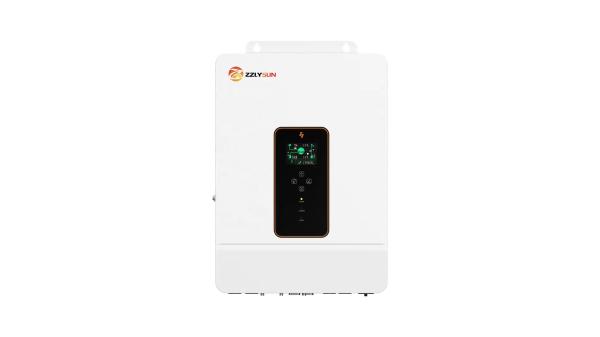

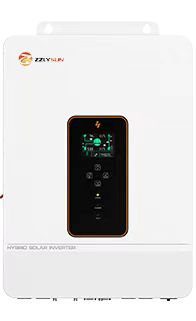

❖ Hybrid Solar Inverter
1. Rate Power: 8000W/10000W
2.Battery Voltage:40~60V
3.Battery Type:Lithium Battery/Lead Aid
4. MPP voltage range:125~425V
5. AC Voltage Regulation:230V
6. AC grid frequency:50Hz/60Hz
7. Max PV Power:12KW/15KW
8. Max. Efficiency :99%
9. AC grid connection type:3W+N+PE
10. Peak Power (off grid):<10S
11.No. of MPP trackers:2pcs
12.Max. input current per MPP tracker:
22A+22A
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery

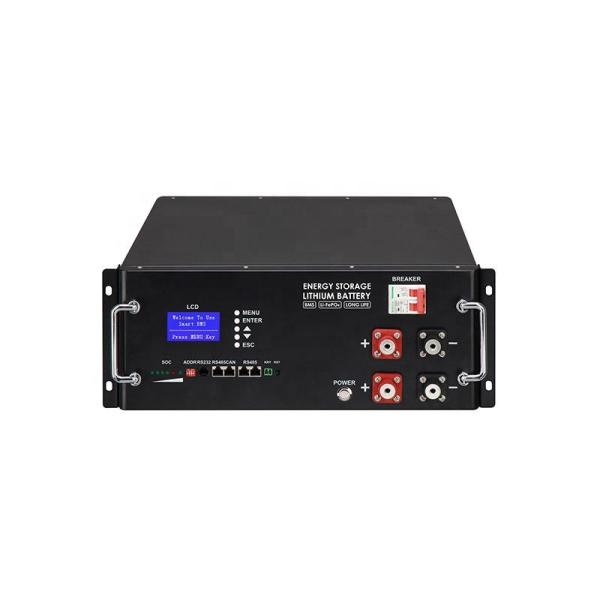

❖ Lithium Battery
1. Nominal Voltage:51.2V
2. Capacity:200Ah
3. Energy:10240Wh
4. Cycle Life:
≥5000 cycles @ 80% DOD, 25℃, 0.5C
≥4000 cycles @ 80% DOD, 40℃, 0.5C
5. Design Life:≥10 years
6. Charge Cut-off Voltage:56.0V±0.5V
7. Dimensions:680 x485 x180(220)mm
8. Weight:Approx:98kg
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery

❖ Accessories
1. PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar/Breaker 63A1000V)
2. Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery

❖ Accessories
1. PV DC Cable
4mm2 or 6mm2
2. MC4 Connector
Rated current: 30A Rated voltage: 1000VDC
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
❖ Mounting Bracket
1. Good Appearance
2.Easy and flexible installation.
3.Diversified design
4.Light dead-weight
5.Save installation materials
❖ Project Case
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
❖ Company
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
❖ Quality gurantee
The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
Home Solar Energy Storage System With 10KW Hybrid Lead Acid Solar Gel Battery
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your deposit of payment.
