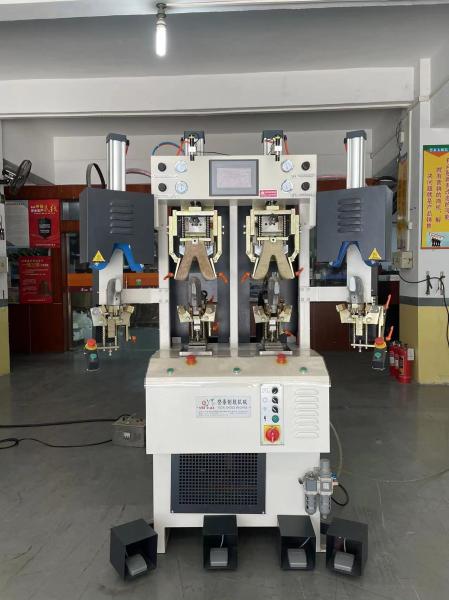

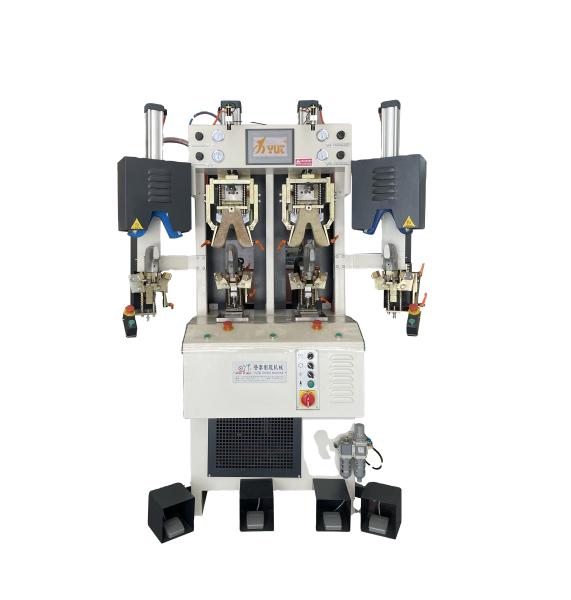

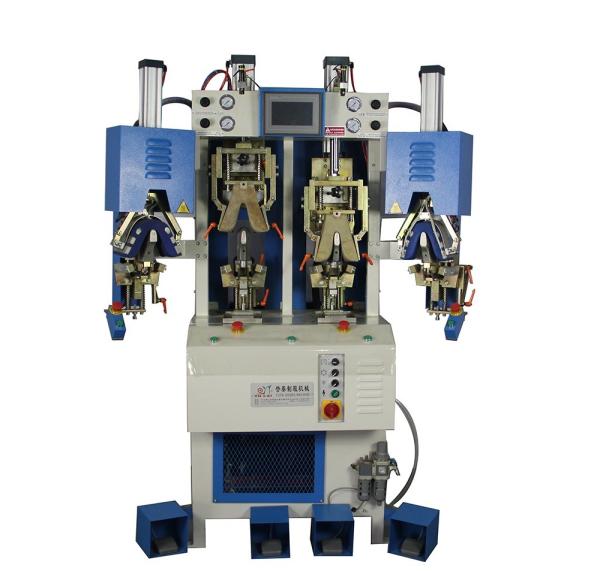

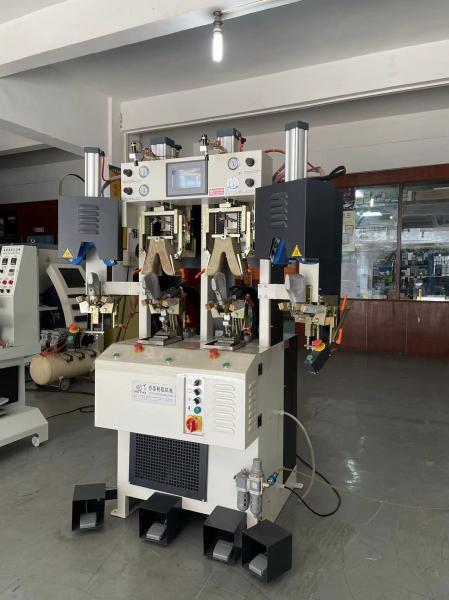

Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Specifications
Place of Origin :
Guangdong, China
Brand Name :
yutai
Price :
CN¥40,123.16/sets 1-4 sets
MOQ :
1SET
Packaging Details :
Standard export wooden case
Weight (KG) :
680
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Warranty :
1 Year
Machine Dimensions :
890*1450*2000mm
Aircons: :
0.6Mpa
Power: : :
2.7kw
Voltage: :
220V/50Hz
N.W: :
620KG
Name :
Counter shaping machine
Color :
Blue or gray
Description

Features :

1.It is with two cooling system and two heating system, has adjustable pull-down grip jaw.
2.The molds loading and unloading quick and easy. The mold can be customized to obtain a more perfect shape effect.
3.The mold can be tilted, more convenient operation. The adjustable clamp will achieve 100% jointing of vamp with last.
4. Use of environmentally friendly refrigeration system, cooling speed, freezing temperatures up to -30 °C.Electronically controlled heating system,temperature control is more precise, the maximum heating temperature of up to 200 °C.
5.After moulding, the liner, the toe puffs and vamp are closely jointed, without crinkling, deformation and without bubbling.
6.Microelectronic processing system.

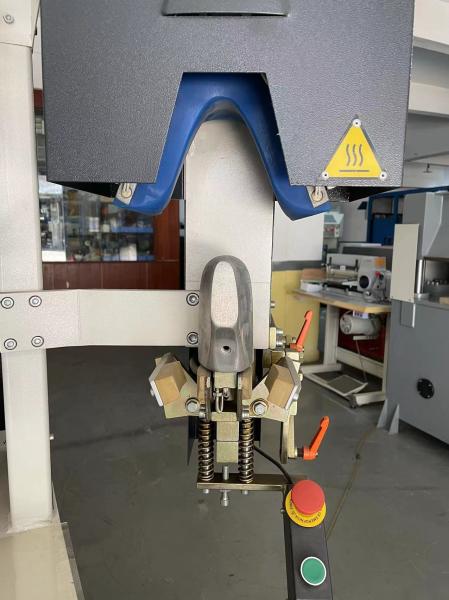

7.Rubber sheet downward pressing action mode.

Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
Highly Precise Cold Hot Back Part Molding Machine 680 Aircons 0.6Mpa For Shoe Manufacturing
