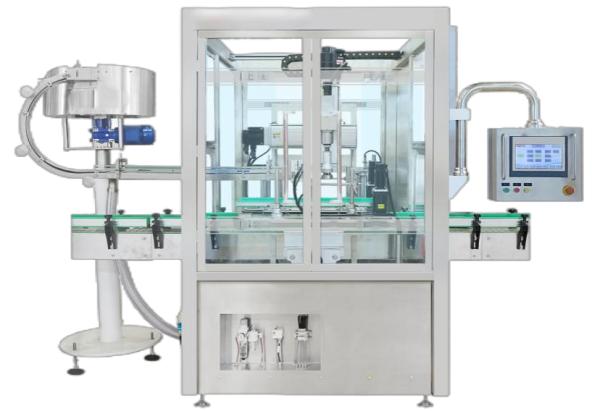

YQ-XY-02 TRACKING TYPE ROTARY COVER INTEGRATED MACHINE

Product Introduction / INTRODUCTION
The Fully Automatic Following-Type Spin Capping Machine integrates horizontal movement, lifting, and capping mechanisms to achieve continuous capping without stopping the bottles. This results in high efficiency, space savings, and reduced operational costs.

Product Features / CHARACTERISTICS

• High Automation Efficiency: Combines multiple automated functions including horizontal movement, lifting, and capping into one integrated system.

• Dynamic Following Capping: The capping device features a unique following function, allowing real-time adjustment to bottle movement during the capping process.

• Optimized Space Utilization: Eliminates the need for additional buffer or waiting areas, significantly reducing the floor space required for the production line.

• Cost Reduction: Lowers equipment costs by minimizing production line downtime and reducing the need for manual intervention and auxiliary devices.

• Ease of Operation and Maintenance: The highly integrated design ensures user-friendly and intuitive operation. Its compact structure and fewer components also simplify maintenance, reducing downtime and upkeep costs.

  Model number YQ-XY-02
  Rotary pressure cover speed	1200 to 2600 bottles / h
  Applicable bottle diameter / width	30-120mm
  Applicable bottle height	50-300mm
  Suitable for bottle cap diameter	20-80mm
  Applicable bottle cap height	10-20mm
  Rotary pressure cover head	1 Or 2
  power	220V50/60Hz5000W
  Drive way	Frequency conversion speed adjustment motor
  net weight	550kg
  The appearance of the household	Appearance Lu Cun (m)
