88T Hot Die Casting Machine with 880 kN Clamping Force PLC Intelligent Control System and Hydraulic Die Height Adjustment for Zinc Alloy Products
88T Hot Die Casting Machine with 880 kN Clamping Force PLC Intelligent Control System and Hydraulic Die Height Adjustment for Zinc Alloy Products
88T Hot Die Casting Machine with 880 kN Clamping Force PLC Intelligent Control System and Hydraulic Die Height Adjustment for Zinc Alloy Products
88T Hot Die Casting Machine with 880 kN Clamping Force PLC Intelligent Control System and Hydraulic Die Height Adjustment for Zinc Alloy Products
88T Hot Die Casting Machine with 880 kN Clamping Force PLC Intelligent Control System and Hydraulic Die Height Adjustment for Zinc Alloy Products
88T Hot Die Casting Machine with 880 kN Clamping Force PLC Intelligent Control System and Hydraulic Die Height Adjustment for Zinc Alloy Products
88T Hot Die Casting Machine with 880 kN Clamping Force PLC Intelligent Control System and Hydraulic Die Height Adjustment for Zinc Alloy Products
88T Hot Die Casting Machine with 880 kN Clamping Force PLC Intelligent Control System and Hydraulic Die Height Adjustment for Zinc Alloy Products
88T Hot Die Casting Machine with 880 kN Clamping Force PLC Intelligent Control System and Hydraulic Die Height Adjustment for Zinc Alloy Products
88T Hot Die Casting Machine with 880 kN Clamping Force PLC Intelligent Control System and Hydraulic Die Height Adjustment for Zinc Alloy Products
Specifications
Die Opening Stroke: :
250 mm
Brand Name :
Yunding
WeightEjector Stroke :
4000 kg
Die Opening StrokeDie Opening Stroke :
280 mm
Supply Ability :
10 pieces
Injector Stroke: :
130 mm
Die Opening Stroke :
280 mm
Injector Force :
880 kN
YD Hot Chamber Diecasting Machine 88t Jewellery Zinc Injection Molding Machine :
250 mm
Delivery Time :
20-25
Price :
$25400-$29100
Place of Origin :
Guangdong，
Payment Terms :
T/T
MOQ :
1 pieces
Injector Stroke :
130 mm
After-sales Service :
Lifetime
Packaging Details :
Wooden box
Weight :
4000 kg
Warranty: :
1 year
Clamping Force: :
880 kN
Injector Force: :
880 kN
Warranty :
1 year
Furnace Capacity(For Zinc): :
450 kg
Furnace Capacity(For Zinc) :
300 kg
Weight: :
4000 kg
Description
88T Hot Die Casting Machine For Badge Medal Bag Accessories
Hot Die Casting Machine For Door And Window Hardware 880kN Clamping Force
  • Reinforced Frame & Rigid Structure This hot chamber die casting machine adopts a newly reinforced frame structure, together with high-strength tie bars, enlarged steel pins, and thickened machine platens, greatly improving the overall rigidity and load-bearing capacity of the machine.
  • Impact Resistance & High Stability Performance The reinforced frame and high-strength structural design give the machine stronger impact resistance and better load stability during high-pressure die casting. This helps reduce mechanical deformation, extend service life, and make the machine especially suitable for heavy-duty continuous production of zinc alloy products.

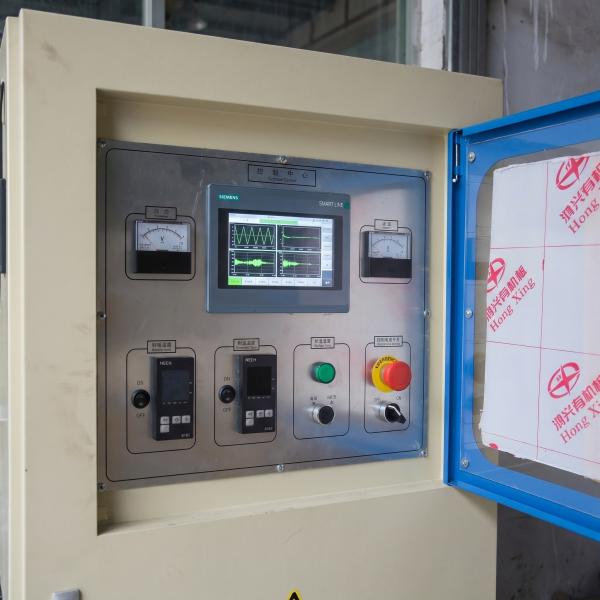

  • PLC Intelligent Control System & Fault Display The machine is equipped with an advanced PLC programmable control system, which simplifies complex electrical circuits and makes overall machine control more stable and reliable, even in high-temperature environments. The control display panel features a fault display function, which can quickly indicate electrical system abnormalities and helps operators identify and solve problems efficiently.

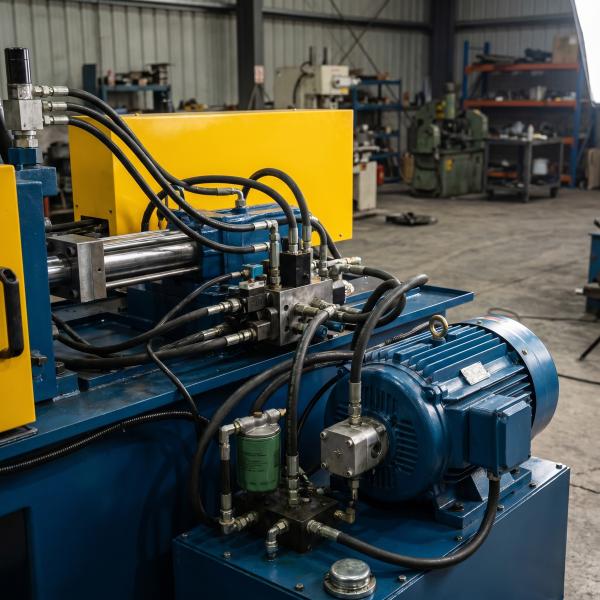

  • Hydraulic Die Height Adjustment & Automatic Pressure Relief Energy-Saving System The machine adopts a hydraulic die height adjustment system, making mold installation and adjustment faster and more convenient. This helps users save time and labor. It is also equipped with an automatic pressure relief function, which effectively reduces system energy consumption during operation and minimizes unnecessary energy loss.
88-Ton Zinc Hot Chamber Die Casting Machine: Applicable Products & Applications This 88-ton zinc hot chamber die casting machine is widely used for producing small zinc alloy parts such as bag accessories, decorative hardware, furniture fittings, bathroom accessories, locks and lock parts, electronic hardware parts, badges, souvenirs, and other small metal products. With its compact structure and stable performance, it is an ideal solution for customers seeking a small die casting machine for precision zinc alloy products.
