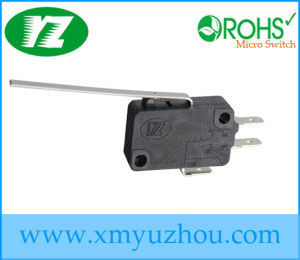

Safe Operation Small-Sized Sensitive Electronic Switch 16A with Lever VDE Approved
Safe Operation Small-Sized Sensitive Electronic Switch 16A with Lever VDE Approved
Specifications
Model NO. :
V-16-1A2C
Pressing Type :
Lever Roller
Number of Switch :
Single Control Switch
Protection :
Dust-Proof
Size :
Small-Sized
Environment :
﹤250℃
Breaking Capacity :
Micro-Current
Breaking Form :
Single Type
Brand :
Universal
Certification :
ISO 9001
Operating Force :
2 N-4 N
Rated Current :
16A
Rated Voltage :
125VAC/250VAC
Trademark :
YZ
Specification :
UL, VDE, CE, CQC approved, . RoHs compliant
Origin :
Xiamen, China
HS Code :
85365000
Supply Ability :
1000000/Month
Transport Package :
Cartons
Payment Terms :
T/T, Western Union, Paypal
Place of Origin :
China
MOQ :
20
Price :
Negotiable
Description

Basic Info.

Model NO.
V-16-1A2C
Pressing Type
Lever Roller
Number of Switch
Single Control Switch
Protection
Dust-Proof
Size
Small-Sized
Environment
﹤250℃
Breaking Capacity
Micro-Current
Breaking Form
Single Type
Brand
Universal
Certification
ISO9001
Operating Force
2 N-4 N
Rated Current
16A
Rated Voltage
125VAC/250VAC
Certificates
CE, CB, TUV, CQC
Trademark
YZ
Specification
UL, VDE, CE, CQC approved, . RoHs compliant
Origin
Xiamen, China
HS Code
85365000

Product Description

Breif information of Long Lever Micro Switch:

Micro Switch controls of "On and Off" action. It is easy to manipulate the applications. We could provide you our high quality Microswitch products. Just take one simple action, you can set up all your electronic equipment. All our micro switches are activated by leaver or button. If you like some special forms, please contact us for further custom switches. We, Xiamen Universal Electronic Co., Ltd make our 16A Micro Switch to fit kinds of your max-needs.

Function and Characteristics:

*Long life, high reliability.
*Safe reliable basic switch.
*Variety of levers and connect terminals.
*A variety of models with low operating force to high force are sensitivity.
*Nice appearance, tight configuration, characteristic, quick action and high sensitivity.
*Mainly used in microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, Water heater, electric drill, joystick, TV game, time recorder, solder gun, mixer, Food processor, juice maker, alarm, mixer, shredder machine, etc.
Production Workflow and Automatic Machine:

Xiamen Universal Electronic Co.,Ltd

No.318. South Tongji Road, Jimei District, Xiamen City, Fujian,China

Mobile: 86-15606008788

Tel: 86-592-5782488

Fax: 86-592-5664223

ItemValue
Operating Speed0.1mm~1m/s(Related with actuator forms)
Operating FrequencyMechanical 60 cycles/min; Electrical 30 cycles/min
Insulation Resistance> =100 ohm(500VDC)
Contact resistance< =30ohm(Initial value)


Test Voltage		Between terminals of the same polarirtyAC1000V, 50/60Hz, 1min
Between current-carrying metal
And ground(case), and between
Each terminal and non-carrying
metal parts
AC3750V, 50/60Hz, 1min
Vibration resistance10-55Hz, 1.5mm Double amplitude

Shork Resistance		Destruction:
OF> 0.5N: 1000m/s ² (approx. 100G)max
OF< =0.5N: 500m/s ² (approx. 50G)max
Malfunction:
OF> 0.5N: 300m/s ² (approx. 30G)max
OF< =0.5N: 200m/s ² (approx. 20G)max
Life ExpectancyMechnical> =5000000 cycles
Electrical> =50000 cycles
Degree of protectionIEC IP67
Degree of protection against electric shockClass I
PTI(Tracking Resistance)175
Ambient air temperature125degree60%RH below(No ice and dew)
Ambient air humidity85% Rhbelow(about +5~+35degree)
WeightApprox. 5.95g(No lever)


Notes: Shows the operating force of no lever


1.
Degree of
Temperature

No Mark: T125
5.
Terminal Types		A: 250 Quick-connect Terminal
B: 187 Quick-connect terminal(Thick: 0.8)
C: 187 Quick-connect terminal(Thick: 0.5)
D: Solder/187 common terminal
E: Screw terminal
F: Solder terminal
G: 250 Quick terminal No. 2
Y: Not standard terminal


2.
Ratings
16: 16(4)A250VAC/16A125VAC
1/2HP 125/250VAC
10: 10(3)A250VAC/10A125VAC
6: 6(2)A250VAC/6A125VAC
1: 1(1)A250VAC/1A125VAC


6.
(max)
Operating Force		051: 0.5N
025: 0.25N
050: 0.5N
100: 1N
150: 1.5N
200: 2N
300: 3N
400: 4N


3.
Connect Forms
1A: SPDT
2A: SPST-NO
3A: SPST-NC



7
Plunger specs		No mark: Standard Plunger
A: Middle Plunger
B: Long Plunger
C: Abnormality Plunger
( see dirgram )
Notice: If adopt other not standard plunger, the indicate with the new spec(confirmed by our company)





4.
Acuator forms		0: No lever
A 1/1: Short lever
A 2/2: Long lever
A 3/3: Middle lever
A 4/4: Short Roller
A 5/5: Long Roller
A 6/6: Arc lever
A 0/0: Not standard lever

Note:
1) A indicate the lever near to the
Plunger, no A indicate the lever far
Away from the plunger.
2) If lever is amounted besides, add letter" B" after the lever code.
3) 0 Indicate not standard lever


8.
Additional Specis Numbers
Apply to:

1)When used not standard parts such as not standard terminals;
2)When Customer has particular Operating value or other requirement
3) When the case is mot black, for example, grey shows as G.
Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant
