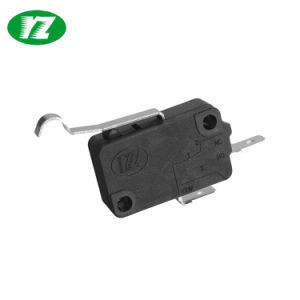

V-16B6 16A 250VAC Micro Switches with Optional Lever
V-16B6 16A 250VAC Micro Switches with Optional Lever
Specifications
Model NO. :
V-16B6
Pressing Type :
Push-Button
Number of Switch :
Single Control Switch
Protection :
Dust-Proof
Size :
Small-Sized
Environment :
﹤250℃
Breaking Capacity :
General Type
Breaking Form :
Single Type
Brand :
Yz
Certification :
ISO 9001
Rated Current :
16A
Theory :
16A Micro Switch
Operating Force :
300GF/3n
Terminal Type :
187 Quick-Connect Terminal
Trademark :
YZ
Transport Package :
Standard Export Package
Specification :
CE, CB, TUV, CQC
Origin :
Xiamen, Fujian
HS Code :
85365000
Port :
Xiamen, China
Supply Ability :
1000000/Month
Payment Terms :
T/T, Western Union, Paypal
Place of Origin :
China
MOQ :
20
Price :
Negotiable
Description

Basic Info.

Model NO.
V-16B6
Pressing Type
Push-Button
Number of Switch
Single Control Switch
Protection
Dust-Proof
Size
Small-Sized
Environment
﹤250℃
Breaking Capacity
General Type
Breaking Form
Single Type
Brand
Yz
Certification
ISO9001
Rated Current
16A
Theory
16A Micro Switch
Operating Force
300GF/3n
Terminal Type
187 Quick-Connect Terminal
Certificates
Ce, CB, TUV, CQC
Trademark
YZ
Transport Package
Standard Export Package
Specification
CE, CB, TUV, CQC
Origin
Xiamen, Fujian
HS Code
85365000

Product Description

16A 250VAC Micro Switches with Optional Lever

Product Model: V-16B6-C

Type: Shrapnel-type Structure

Specifications of micro switch / 16A micro switches / micro switch with lever:

*Actuator forms: no Lever
*Ratings: 4(16)A / 250(125)VAC
*Connect forms: SPDT
*Terminal types: 4.8*0.5 mm
*Operating force: 1N-3N (100gf-300gf)
*Ambient air temperature: 125°C

Characteristics and usage of micro switch / 16A micro switches / micro switch with lever
*Safe reliable basic switch
*Long life,high reliability, sensitive.
*Variety of levers and contact terminals.
*A variety of models with low operating force to high force are sensitivity.
*Nice appearance,tight configuration,characteristic,quick action and high sensitivity.

-Widely used in microwave ovens, air conditions, electric cookers, dishwashers, cleaners, water heaters, electric drills, joysticks, TV games, time recorders, solder gun, mixer, food processor, juice maker, alarm,shredder machine,etc.
-High quality precision can satisfy most industries including automotive, white goods, security, vending and office automation and include standard types, low torque sealed switches and a number of industry specific models.
Micro Switches controls of "On and Off" action. Easy for people to manipulate the applications. We could offer you high quality switches. Just take one simple action, you can set up all your electronic equipment. All our switch are activated by leaver or button. If you need some special forms, please contact us for further information. We could make 16A Micro Switches to fit kinds of your max-needs.

Brief Introduction of Our Company:
Xiamen Universal Electronic Co., Ltd, is a professional company of switch control device and semiconductor component separator, shutter motors etc electrical appliance company. After years of efforts of all colleagues, the support of customers and suppliers, we now have the business department of the electronics switch and Integrated Department of Market Operation. The business department of the electronics switch is engaged in R & D and manufacturing of the medium and small electronic switches; The Integrated Department of Market Operation is responsible for the Integration Services of information gathering, selling, trading and so on. Our products cover a wide range, including micro switch, tact switch, push switch, metal dome switch, relay, low-voltage devices, rectifier bridge, ect. Those products are widely exported to more than 40 countries all over the world.

Structure of micro switch / 16A micro switches / micro switch with lever:
Picture of micro switch / 16A micro switches / micro switch with lever

16A Miniature Micro Rocker Switch microswitch

16A Micro Switch
Specifications:
  • Actuator forms: Arc Lever
  • Ratings: 4(16)A / 250(125)VAC
  • Connect forms: SPDT
  • Terminal types: 4.8*0.5 mm
  • Ambient air temperature: 125°C

16A Micro Switch
Parameters:
ItemValue
Operating Speed0.1mm~1m/s(Related with actuator forms)
Operating FrequencyMechanical 60 cycles/min;Electrical 30 cycles/min
Insulation Resistance>=100 MΩ (500VDC)
Contact resistance<=30mΩ(Initial value)
Test VoltageBetween terminals of the same polarirtyAC1000V,50/60Hz,1min
Between current-carrying metal,and ground(case),and between each terminal and non-carrying metal partsAC3750V,50/60Hz,1min
Vibration resistance10-55Hz,1.5mm Double amplitude

Shork Resistance		Destruction: OF>0.5N:1000m/s ²(approx.100G)max
OF<=0.5N:500m/s ²(approx.50G)max
Malfunction: OF>0.5N:300m/s ²(approx.30G)max
OF<=0.5N:200m/s ²(approx.20G)max
Life ExpectancyMechnical>=5000000 cycles
Electrical>=100000 cycles
Degree of protectionIEC IP67
Degree of protection against electric shockClass I
PTI(Tracking Resistance)175
Ambient air temperature125 Degree 60%RH below(No ice and dew)
Ambient air humidity85% Rhbelow(about +5~+35 Degree)
WeightApprox.5.95g(No lever)

16A Micro Switch
Model Naming and Meaning:
1.Degree of
Temperature 		No Mark:T125

5.Terminal TypesA:250 Quick-connect Terminal
B:187 Quick-connect terminal(Thick:0.8)
C: 187 Quick-connect terminal(Thick:0.5)
D:Solder/187 common terminal
E:Screw terminal
F:Solder terminal
G:250 Quick terminal No.2
Y:Not standard terminal
2.Ratings
16:16(4)A250VAC/16A125VAC
1/2HP 125/250VAC
10:10(3)A250VAC/10A125VAC
6:6(2)A250VAC/6A125VAC
1:1(1)A250VAC/1A125VAC
6.(max)
Operating Force		100:1N
150:1N
200:2N
250:3N
300:3N
400:4N
3.Connect FormsZ:SPDT
K:SPST-NC
B:SPST-NO
7.Plunger specsNo mark:Standard Plunger
A: Middle Plunger
B: Long Plunger
C: Abnormality Plunger
Notice:If adopt other not standard plunger,the indicate with the new spec(confirmed by our company)
4.Acuator forms0: No lever
A 1/1:Short lever
A 2/2:Long lever
A 3/3:Middle lever
A 4/4:Short Roller lever
A 5/5:Long Roller lever
A 6/6: Arc lever
A / :Not standard lever
Note:
1) A indicate the lever near to the
Plunger,no A indicate the lever far
Away from the plunger.
2) If lever is amounted besides,add letter"B" after the lever code.
3) Indicate not standard lever
8.Additional Specis Numbers
Apply to:

1)When used not standard parts such as not standard terminals;
2)When Customer has particular Operating value or other requirement;
3) When the case is mot black, for example, grey shows as G;
Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant

16A Micro Switch


Connect Forms:


Connect Terminal Dimensions:


Certification:

Microswitch
Production Line:

16A Micro Switch

Packaging:
Microswitch
Microswitch
Shipping:

Shipping way: By sea,By air, DHL, FEDEX, UPS, TNT, EMS, CHINA POST AND SO ON.
