Control Switch for 16A SPDT Mini Electronic Switch The Theory
Control Switch for 16A SPDT Mini Electronic Switch The Theory
Specifications
Model NO. :
V-16-1A2C
Type :
Composite
Number of Switch :
Single Control Switch
Usage :
Control Button, Control Switch
Kind :
Double-pole on-off Switch
Brand :
Yuzhou
Certification :
ISO 9001
The Theory :
Mini Electronic Switch
Connect Forms :
Spdt
Certificate :
ISO/CB/TUV/CQC
Trademark :
YZ
Specification :
ISO/CB/TUV/CQC
Origin :
Xiamen, Fujian
HS Code :
8536500000
Supply Ability :
1000000/Month
Transport Package :
Standard Export Package
Payment Terms :
T/T, Paypal, Western Union
Place of Origin :
China
MOQ :
20
Price :
Negotiable
Description

Basic Info.

Model NO.
V-16-1A2C
Type
Composite
Number of Switch
Single Control Switch
Usage
Control Button, Control Switch
Kind
Double-pole on-off Switch
Brand
Yuzhou
Certification
ISO9001
The Theory
Mini Electronic Switch
Connect Forms
Spdt
Certificate
ISO/CB/TUV/CQC
Trademark
YZ
Specification
ISO/CB/TUV/CQC
Origin
Xiamen, Fujian
HS Code
8536500000

Product Description

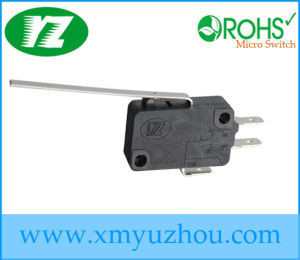

16A Mini Electronic Switch

Characteristics and usage

*Safe reliable basic switch.

*Nice appearance, tight configuration, characteristic, quick action and high sensitivity.

*Long life, high reliability.

*Variety of contact terminals.

*Variety of levers.

*A variety of models with low operating force to high force are sensitivity.

Apply to microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, Water heater, electric drill, electric radiator, joystick, TV game, time recorder, solder gun, mixer, Food processor, juice maker, alarm, mixer, shredder machine, etc.
ItemValue
Operating Speed0.1mm~1m/s(Related with actuator forms)
Operating FrequencyMechanical 60 cycles/min;Electrical 30 cycles/min
Insulation Resistance>=100 MΩ(500VDC)
Contact resistance<=30mΩ(Initial value)


Test Voltage		Between terminals of the same polarirtyAC1000V,50/60Hz,1min
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts
AC3750V,50/60Hz,1min
Vibration resistance10-55Hz,1.5mm Double amplitude

Shork Resistance		Destruction : OF>0.5N:1000m/s ²(approx.100G)max
OF<=0.5N:500m/s ²(approx.50G)max
Malfunction: OF>0.5N:300m/s ²(approx.30G)max
OF<=0.5N:200m/s ²(approx.20G)max
Life ExpectancyMechnical>=5000000 cycles
Electrical>=50000 cycles
Degree of protectionIEC IP67
Degree of protection against electric shockClass I
PTI(Tracking Resistance)175
Ambient air temperature125Degree60%RH below(No ice and dew)
Ambient air humidity85% Rhbelow(about +5~+35Degree)
WeightApprox.5.95g(No lever)
