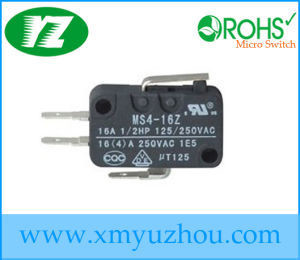

Spdt Contact Forms DIP Switch MS4-16Z1 Short Arm Pressing Type 3 Pins for PCB Assembly
Spdt Contact Forms DIP Switch MS4-16Z1 Short Arm Pressing Type 3 Pins for PCB Assembly
Specifications
Model NO. :
MS4-16Z1
Pressing Type :
Short Arm
Number of Switch :
Single Control Switch
Protection :
Dust-Proof
Size :
Small-Sized
Environment :
﹤250℃
Breaking Form :
Single Type
Application :
Microwave Oven
Brand :
Yuzhou
Certification :
ISO 9001
Operating Force :
1.5 N--3 N
Title :
Spdt DIP Switch
Current :
16A 6A
Contact Forms :
Spdt
Trademark :
YZ
Specification :
UL, VDE, CE, CQC approved, RoHs compliant
Origin :
Xiamen, China
HS Code :
85365000
Supply Ability :
1000000/Month
Transport Package :
Cartons
Payment Terms :
L/C, T/T, Paypal, Western Union
Place of Origin :
China
MOQ :
20
Price :
Negotiable
Description

Basic Info.

Model NO.
MS4-16Z1
Pressing Type
Short Arm
Number of Switch
Single Control Switch
Protection
Dust-Proof
Size
Small-Sized
Environment
﹤250℃
Breaking Form
Single Type
Application
Microwave Oven
Brand
Yuzhou
Certification
ISO9001
Operating Force
1.5 N--3 N
Title
Spdt DIP Switch
Current
16A 6A
Contact Forms
Spdt
Trademark
YZ
Specification
UL, VDE, CE, CQC approved, RoHs compliant
Origin
Xiamen, China
HS Code
85365000

Product Description

2 Pin DIP Switch

Good quality, All kinds of operating force, Several Kinds of Terminal

1. Rated current and voltage:
16(4) 250 V AC/16A 125V AC 1/2HP 125/250VAC;
10(3)A 250V AC/10A 125VAC
6(2) A250VAC/1A 125VAC
1(1)A 250VAC/1A125VAC
2. Contact Resistance: 30mΩ Max;
3. Insulation Resistance: 100MΩ (500VDC);
4. Operating Force: 1.5 N--3 N
5. Life: Mechanical ≥ 5000000 cycles; Electrical≥ 50000 cycles;
Apply to microwave oven, air conditioner, electric cooker, dishwasher, cleaner, humidifier, water heater, electric radiator, e; Ectric drill, joystick, TV game, time recorder, solder gun, mixer, food processor, juice maker, alarm, mixer, shredder machine, etc
ItemValue
Perating Speed0.1mm~1m/s(Related with actuator forms)
Operating FrequencyMechanical 60 cycles/min;Electrical 30 cycles/min
Insulation Resistance100 MΩ (500VDC)
Contact resistance<=30mΩ(Initial value)


Test Voltage		Between terminals of the same polarirtyAC1000V,50/60Hz,1min
Between current-carrying metal

And ground(case),and between

Each terminal and non-carrying

metal parts

AC2000V,50/60Hz,1min
Vibration resistance10-55Hz,1.5mm Double amplitude


Shork Resistance		Destruction : OF>0.5N:1000m/s ²(approx.100G)max

OF<=0.5N:500m/s ²(approx.50G)max

Malfunction: OF>0.5N:300m/s ²(approx.30G)max

OF<=0.5N:200m/s ²(approx.20G)max
Life ExpectancyMechnical>=5000000 cycles

Electrical>=50000 cycles
Degree of protectionIEC IP40
Degree of protection against electric shockClass I
PTI(Tracking Resistance)175
Ambient air temperature125°C 60%RH below(No ice and dew)
Ambient air humidity85% Rhbelow(about +5~+35°C)
WeightApprox.5.95g(No lever)
