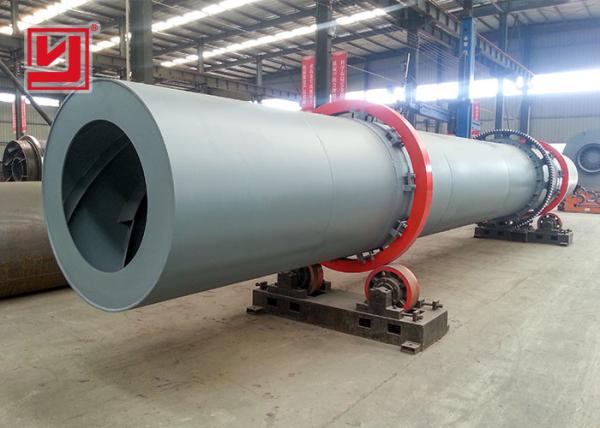

Mineral Slag Rotary Dryer Machine φ1000x10000mm High Heat Efficiency
Mineral Slag Rotary Dryer Machine φ1000x10000mm High Heat Efficiency
Mineral Slag Rotary Dryer Machine φ1000x10000mm High Heat Efficiency
Mineral Slag Rotary Dryer Machine φ1000x10000mm High Heat Efficiency
Mineral Slag Rotary Dryer Machine φ1000x10000mm High Heat Efficiency
Mineral Slag Rotary Dryer Machine φ1000x10000mm High Heat Efficiency
Mineral Slag Rotary Dryer Machine φ1000x10000mm High Heat Efficiency
Mineral Slag Rotary Dryer Machine φ1000x10000mm High Heat Efficiency
Specifications
Brand Name :
YUHONG
Model Number :
1000x10000mm
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30sets/month
Delivery Time :
10-15working days
Packaging Details :
International standard packing Seaworthy packing. Standards in container, spare parts in export wooden case.
Weight :
5.6t
Capacity :
1.0-3.5t
Power :
5.5kw
Color :
Customized
Material :
Q235
Application :
Granite,basalt,limestone,cobble,cement clinker,quartzite,iron ore etc.
Description

φ1000x10000mm Mineral slag rotary dryer with factory price good standard material

Product Descripition

Mineral Slag dryer is the special drying system developed by my company to process the lightweight materials with high humidity and large proportion.

This equipment makes great changes in the lift flitch devices, adopting new type multi-combination type which solves the wind tunnel phenomenon of the traditional dryer and is of high heat efficiency. The coal consumption is decreased by 20%.

Applicable Materials

This drying system can be used in building materials, metallurgy, chemical industry, cement industry

Materials: chalk slags, coal powder, slags, clay and other materials.

Technical Parameter

Spec φ2.0×6m φ2.5×6.5m φ2.7×7m φ3×7m φ3.2×7m φ3.6×8m φ4.2×8.5m
tube diameter (m) 2 6.5 27 3 3.2 3.6 4.2
length (m) 6 6.5 7 7 7 8 8.5
volume (m3) 3-10 31.89 40.5 49.46 56.26 81.38 118
Rotor speed (rpm) 3-10 3-10 3-10 3-10 3-10 3-10 3-10
Material retention time (min) 12-30 12-30 12-30 12-30 12-30 12-30 12-30
Input moisture(%) 6-25 6-25 6-25 6-25 6-25 6-25 6-25
Output moisture (%) ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1
Max temperature (℃) 750-900℃ 750-900℃ 750-900℃ 750-900℃ 750-900℃ 750-900℃ 750-900℃
Capacity(T/H) Slag 20-25 25-30 30-35 35-10 40-45 50-65 70-85
Fly ash 10-17 17-21 20-25 23-27 25-30 30-45 45-63
Sand 20-27 25-40 27-45 30-45 35-50 55-75 75-99
Motor model Yr160m-4 Yr132m-4E Yr160m-4 Yr160m-4 Yr132m-5E Yr160m-4E Yr160m-4E
Motor power (kw) 7.5×2 11×2 7.5×4 7.5×4 11×4 15×4 18.5×4
Reducer model XWD-6 XWD-6 XWD-6 XWD-6 XWD-6 XWD-8 XWD-8
Reducer ratio (I) 17-29 17-29 17-29 17-29 17-29 17-29 17-29

Mineral slag dryer working principle:

1. Our equipment can meet the different requirements of material granularity and moisture after drying .
2. Large processing capacity , strong overload capacity, less fuel consumption, which can directly reduce the cost.
3. In order to achieve the best drying effect, our equipment adopts downstream drying method to guarantee the high thermal efficiency.
4. It adopts the new type of feeding, discharging device, which puts an end to the problems of feeding jams, discontinuous and uneven feeding, so it reduces the load of dust removal system for you .
5. Slag dryer realizes the innovation in internal structure,which strengthens the cleaning and heat conduction effect on scattered material, which makes the coal slime dryer have stronger adaptability to the material water content and stickiness.
6. our company design two different type slag dryer ,depend on the slag size ,moisture ,usage ,and so on.

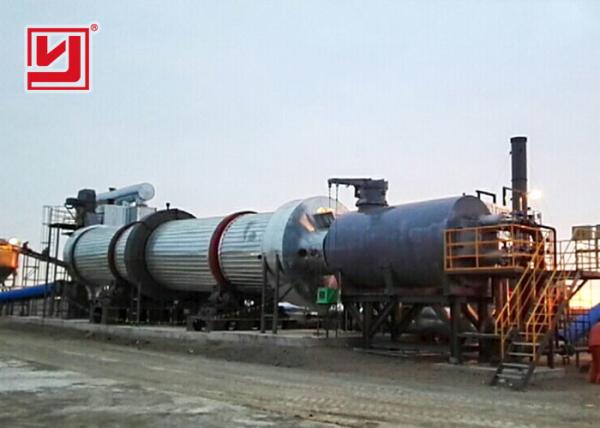

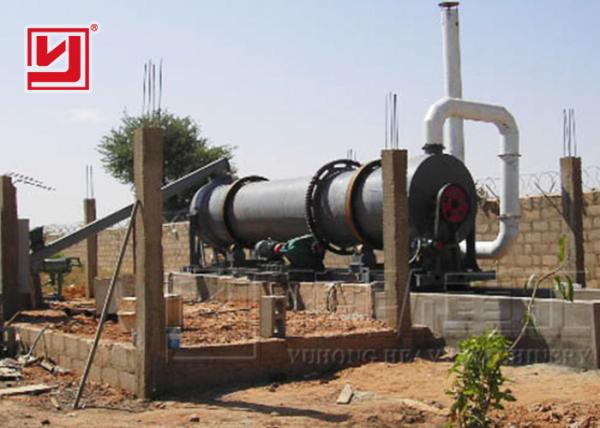

Customer Case
