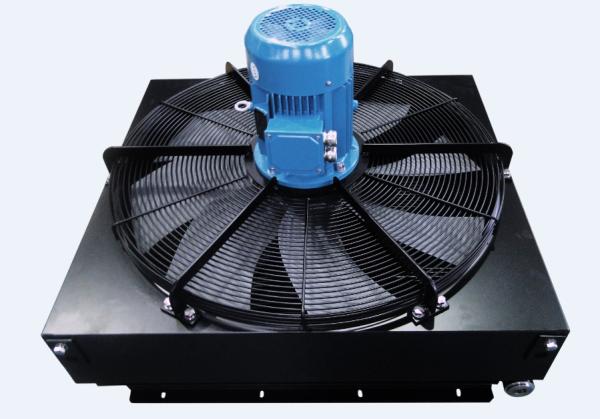

50–150L/min Air Oil Cooler For Gearbox Lubricating System Plate Bar Oil Cooler For Wind Power
50–150L/min Air Oil Cooler For Gearbox Lubricating System Plate Bar Oil Cooler For Wind Power
Specifications
Cooling Type :
Air Oil Cooling
Weight :
5-500KG Customized,700 kg,N/A,55 Kg,15.5t
Applicable Oil Types :
Gear Oil ISO VG 32–320
Rated Oil Flow Rate :
50–150 L/min
Maximum Working Pressure :
1.6 MPa
Thermal Efficiency :
≥ 92 percent
Fan Configuration :
Axial fan direct drive
Power Supply Options :
AC380V 50Hz / AC440V 60Hz
Corrosion Resistance Grade :
C4 marine grade coating
Ambient Temperature Range :
-40 ℃ to +60 ℃
Place of Origin :
China
Brand Name :
YUDA
Certification :
CE ISO9001
MOQ :
1
Packaging Details :
Wooden Case
Delivery Time :
30days
Payment Terms :
T/T
Description
Air Oil Cooler for Gearbox Lubricating System
Designed specifically for gearbox lubricating systems, this Aluminum Air Oil Cooler features a high heat conductivity core and corrosion-resistant C4 coating to deliver efficient thermal management under demanding operating conditions. Its robust aluminum construction ensures lightweight durability, while the optimized air and oil flow design provides stable cooling performance for gearboxes in industrial, automotive, and marine applications. This cooler enhances equipment reliability, reduces the risk of overheating, and extends the service life of critical gearbox components.
Product Specifications
Product Model B11640
Application For Variable-frequency Drive
Material Aluminum
Cooling Type Air cooler
Core Dimensions 870*840*94mm / 34.25*33*3.7"
External Dimensions 1000*930*714mm
Technical Features
  • Fin Types: Plain Fin, Perforated Fin, Wavy Fin, Louvered Fin, Serrated Fin
  • Core Construction: High strength, high heat conductivity, high safety coefficient
  • Sonicleaning: High efficiency, minimal metal corrosion, low pollution
  • Vacuum Brazing: Strict control of vacuum degree, temperature and time
  • Argon Welding: Straight weld gaps, uniform squamous appearance
  • Quality Testing: Comprehensive air tightness and pressure testing
Environmental Specifications
  • Altitude: 0~1200m
  • Working Environment: Corrosive conditions, saline atmosphere, pumice sand
  • Ambient Temperature: -40℃ to +60℃
  • Corrosion-proof Grade: C4
  • Relative Humidity: Maximum 100%
Wind Power Application Features

Equipped with multi-wing PAG fan and anodic oxidation treatment on cooler. Corrosion-proof grade: C4. Successfully tested and in bulk production, performing reliably in field applications.

Current industry standards for offshore wind power applications utilize either anodic oxidation treatment or electrophoretic processing. Corrosivity resistant levels comply with ISO12944 standards: C3/C4/C5-I/C5-M.
